Ansul AUTOPULSE IQ-301 User Manual

Connecting Releasing Devices Releasing Applications
IQ-301 PN 50036:F 10/29/2001 155
D.3.4 Connecting an NBG-12LRA Agent Releasing Abort
Station
Figure 148 shows typical connections for wiring an NBG-12LRA Agent Releasing
Abort Station to the AUTOPULSE IQ-301. All wiring for releasing circuits is
supervised against opens and shorts.
When connecting this type of circuit, follow these instructions:
1. For releasing applications, use an end-of-line device (part number REL-47K) with
the control module. Use an end-of-line device (part number REL-4.7K) with the
control panel releasing circuit (one of the four NACs).
2. Connect the end-of-line device as shown in Figure 148.
3. Program the control module or NAC for a Rel Ckt ULC type code.

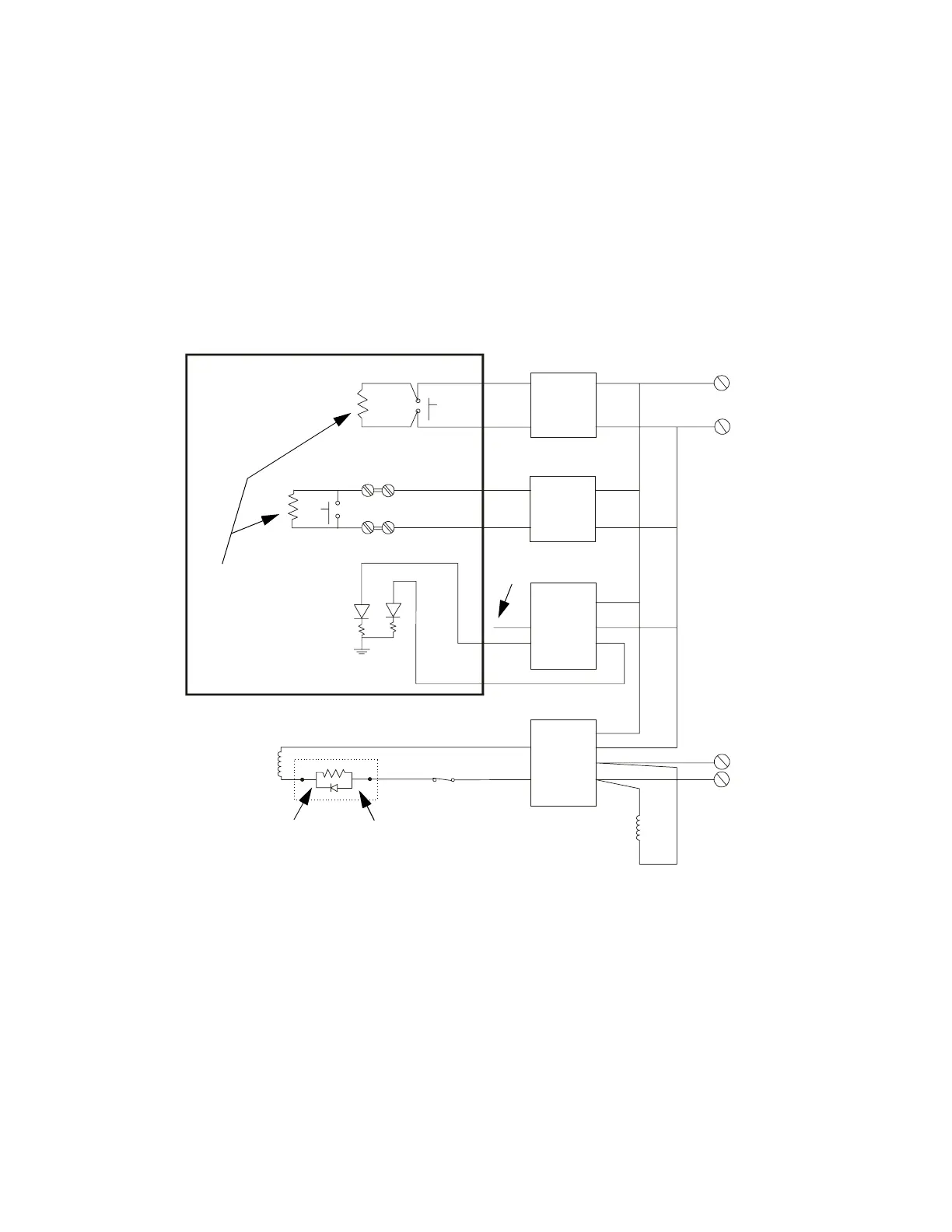

Figure 148 Typical Connections for an Agent Release-Abort Station
Note:
• For releasing applications use an end-of-line device (part number REL-47K) with
the control module. Use an end-of-line device (part number REL-4.7K) with the
control panel releasing circuit (one of the four NACs).
• All wiring for releasing circuits is supervised against open and shorts.
• Connect the end-of-line device as shown in Figure 148.
• Program the module or NAC for REL CKT ULC type code.
+ +
– –
+ +
– –
–
–
–
+
+
+
1
2
4
6
5
7
6
1
2
3
4
SLC loop to IQ-301
TB6-5 (-)
TB6-3 (+)
24 VDC power
from IQ-301
TB1-2 (-)
TB1-1 (+)
FCM-1
FRM-1
FMM-101
FMM-101
Black
Red
Yellow
Violet
Black
Red
Yellow
Violet
IQ-301 TB1-1
+24 VDC
Manual Abort
Manual Release
Normal
Release
NBG-12LRA
See Document 51369
for installation details.
ELR mode R-47K
supervised and
power-limited
RedBrown
24 VDC UL-listed
releasing device
Power Supervision
Relay A77-716B
C.
N.C. N.O.
REL-47K
end-of-line device
