R5906112 /09 UDX series 107
8.5 Manipulating the rigging frame
When can you manipulate the rigging frame?
You can manipulate the rigging frame in the Pulse menu when:
• The projector is mounted in a motorized rigging frame.
• The wiring of the motorization is connected to the projector, including the XLR connector.
• The XLR connector is enabled and powered to 24V. For more info on how to power the XLR connector, see
“Front XLR output voltage control”, page 168.
How to manipulate the rigging frame?
1. In the main menu, select Installation → Lens → Frame.

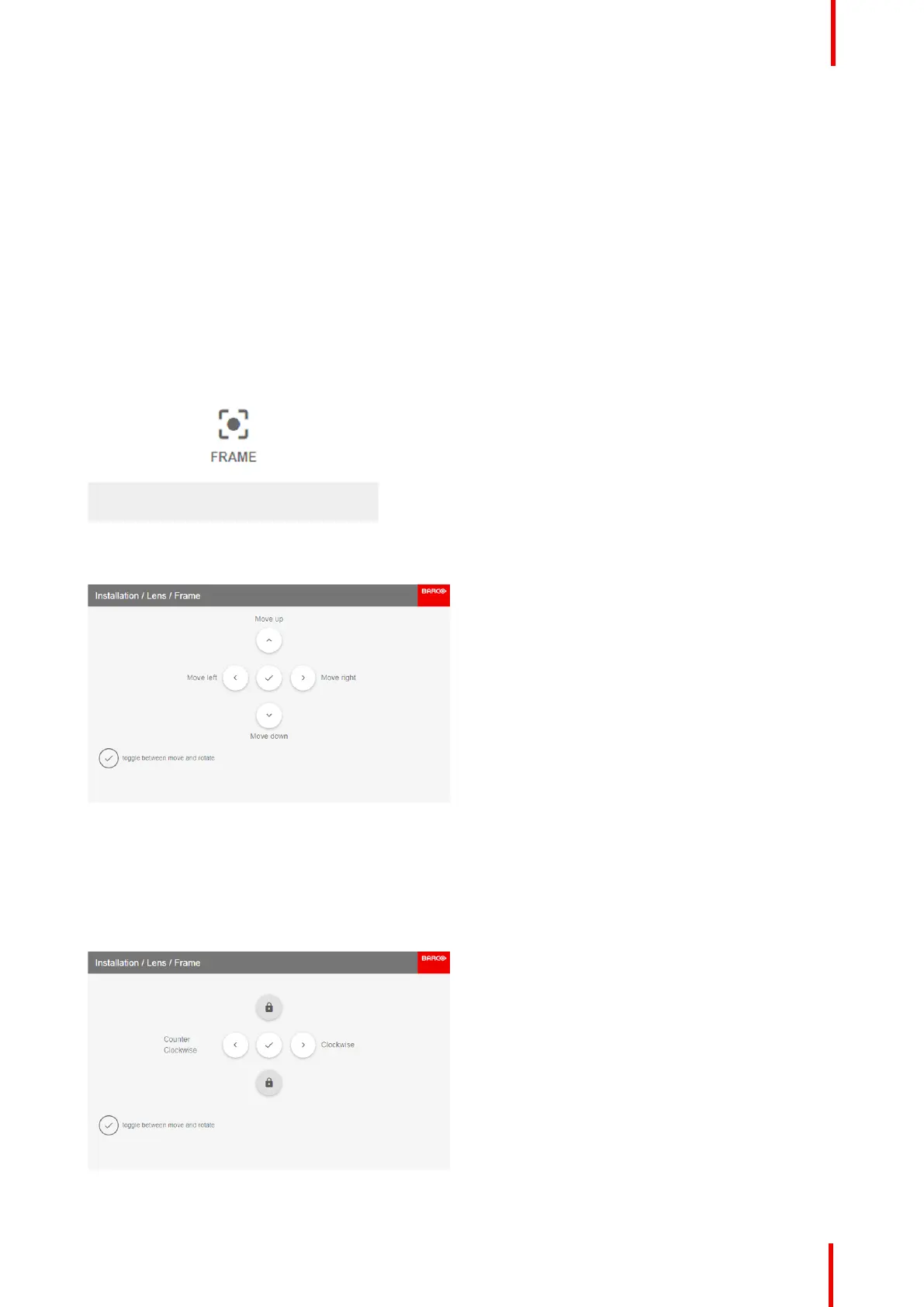

Image 8-9: Lens menu – frame
The Frame shift menu is displayed.
Image 8-10: Frame shift menu
2. Use the ▲ or ▼ button to shift the rigging frame (image) in vertical direction.
Use the ◄ or ► button to shift the rigging frame (image) in horizontal direction.
3. Confirm with the OK button.
The frame rotation menu is displayed.
Image 8-11: Frame rotation menu
GUI – Installation
