8.11 Scaling modes
About scaling modes
While the default mode of projection is to fill the screen while respecting the aspect ratio (fill aspect), it is also
possible to stretch the image in a different way. You can choose from one of the following scaling methods:

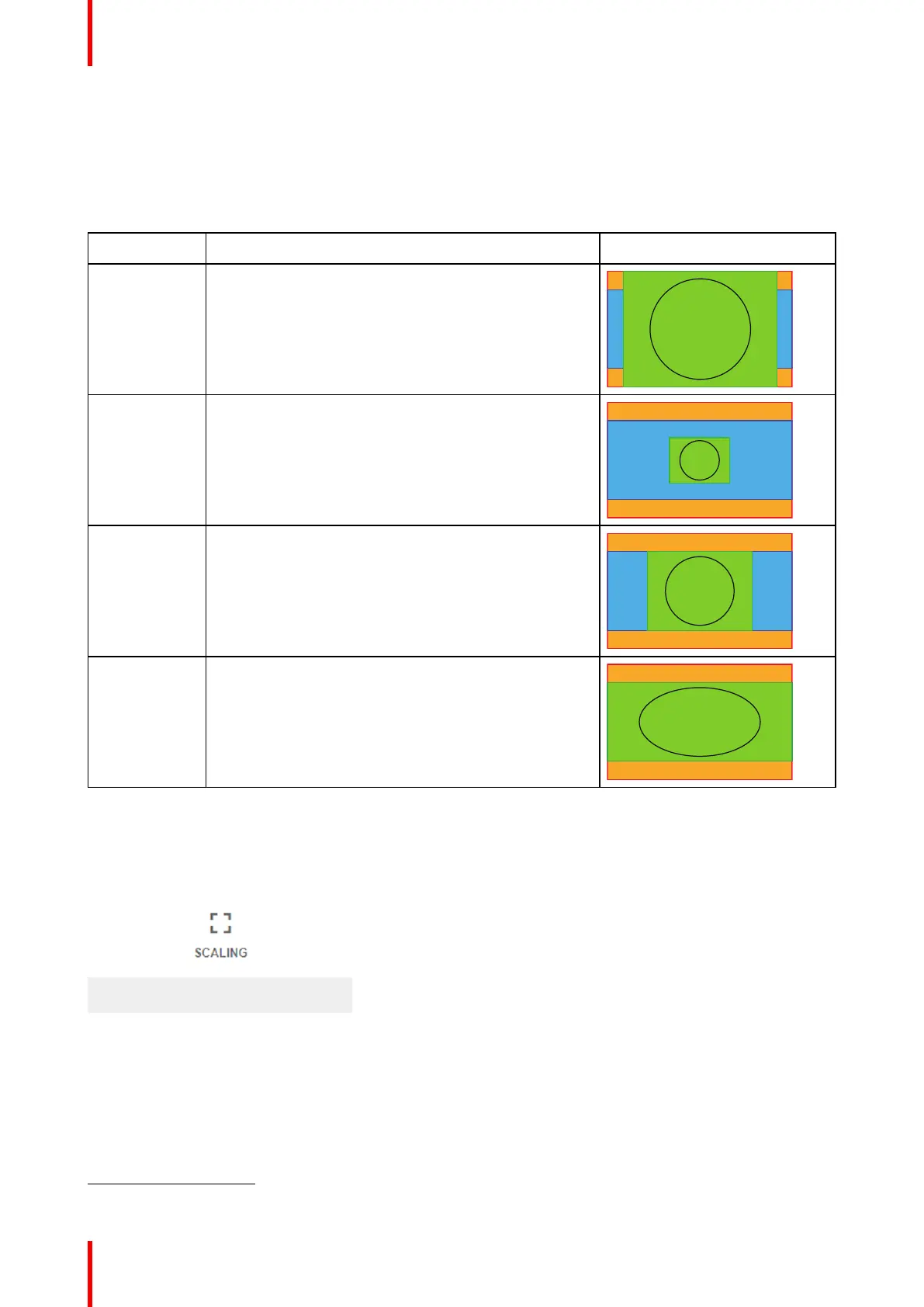

Scaling Mode Explanation Example image
6
Fill aspect Default scaling mode.
Stretches the image to the native resolution of the
DMD, while respecting the original aspect ratio.
1:1 An exact rendering of the source signal, which may be
smaller than the native resolution
Fill screen Fills the screen to the screen size defined in the Screen
Size menu, while respecting the original aspect ratio.
For more info on adjusting the Screen Size menu, see
“Warping – Screen Size”, page 112.
Stretch This mode stretches the image to the screen size
defined in the Screen Size menu, while ignoring the
original aspect ratio. For more info on adjusting the
Screen Size menu, see “Warping – Screen Size”, page
112.
Setting a scaling mode
1. In the main menu, select Installation → Scaling.
Image 8-70: Installation menu, Scaling
The Scaling menu is displayed.
GUI – Installation
6: Example using a screen of 2,35:1, an input signal of 4:3 and a projector with a native resolution of 3840 x 2400
