R5906112 /09 UDX series114
8.7.3 Warping – 4 corners adjustment
About 4 Corners adjustment
4 corner adjustment is typically used when the mechanical installation of the projector prevents it from pointing
perpendicularly at the screen. For example, you can overshoot the screen and use 4 corner adjustment to pull
your projected image corners back into the screen.
Some examples:

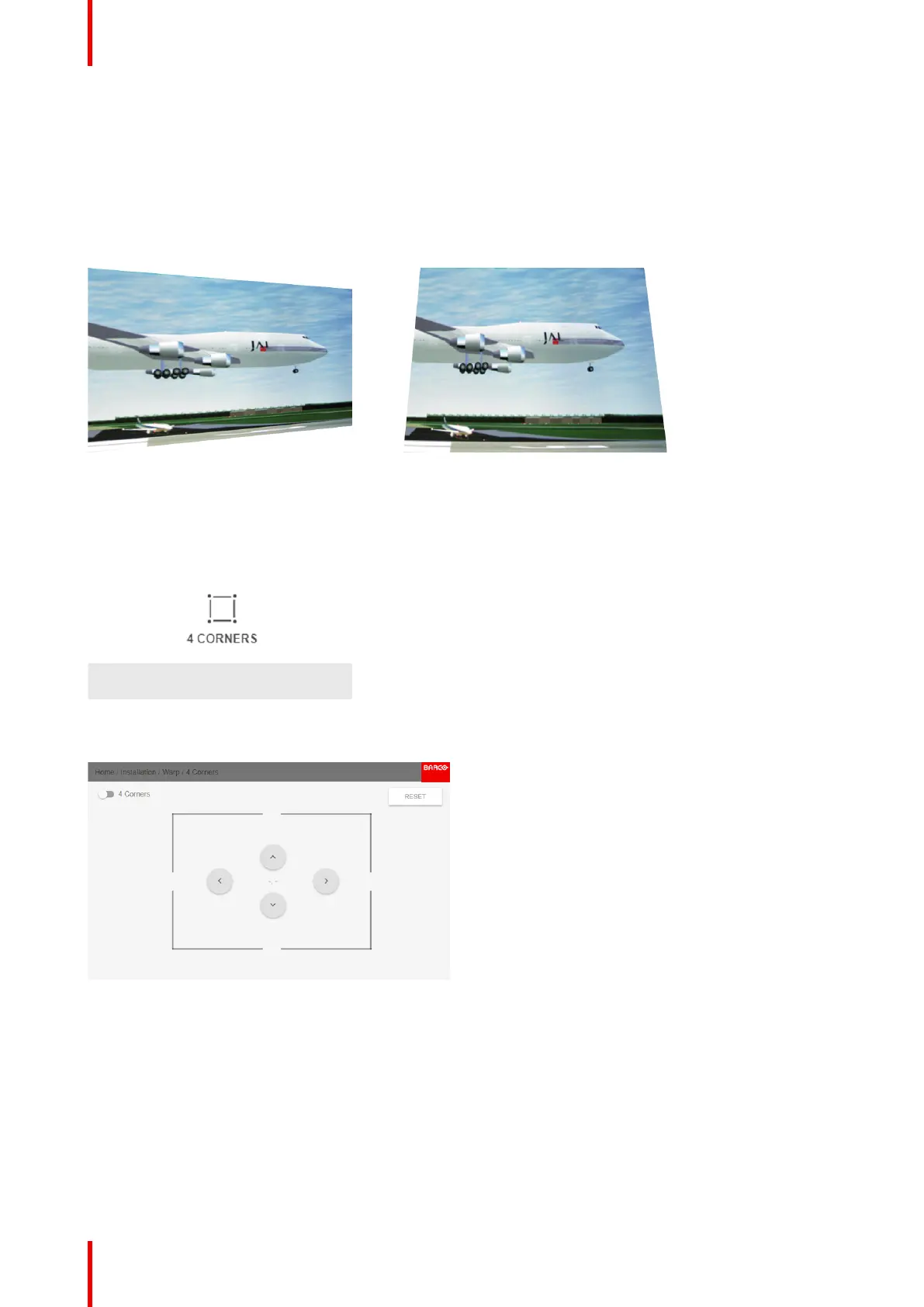

Image 8-21: 4 corner adjustment
How to adjust the image?
1. In the main menu, select Installation → Warp → 4 Corners.
Image 8-22: Warp menu, 4 Corners
The 4 Corners menu is displayed.
Image 8-23: 4 Corners Warping
2. To enable 4 Corners warping, make sure the 4 corners slider is set to On.
GUI – Installation
