5.1 Overview
GUI – Status Screens
While the projector menu is not active, or the projector is Ready or Standby mode, the Status screen are
visible. These screens give an overview of the state of the projector and can be navigated through using the
left and right arrow keys. The status screens are the following:
• Dashboard: The main overview. This screen displays all the chosen options on the projector (chosen
source, blending/masking, display mode, etc).
• Notifications: The error warning messages that are currently active.
• About: General info about the projector. This includes serial number, software version, mounted lens and
light source runtime.
• Preview: A preview pane of the projected image. If no image is being projected, a test image is displayed
instead.

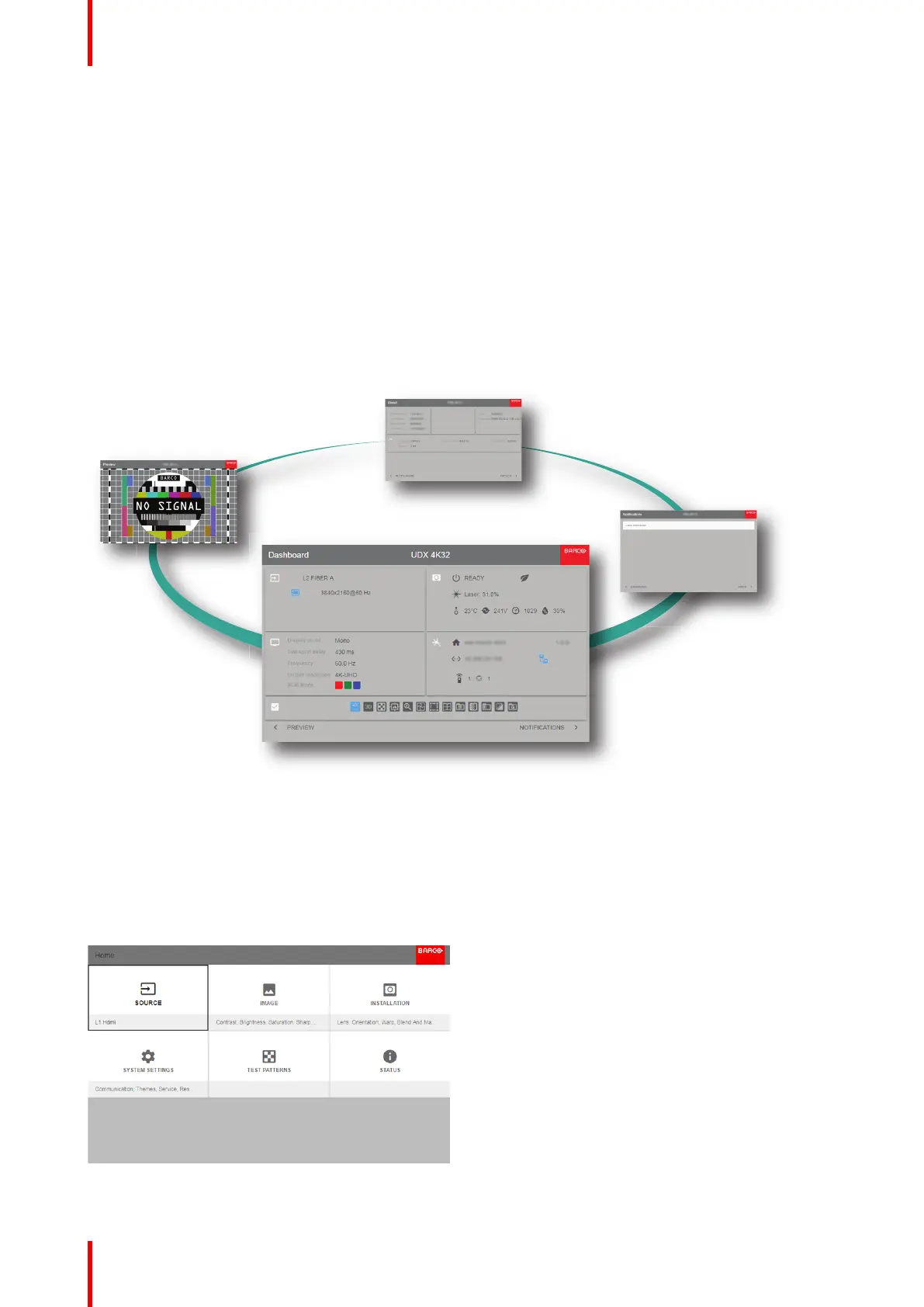

Image 5-1: Example of a Dashboard status screen for the UDX 4k32
GUI – Main Menu overview
The projector on screen display (OSD) is the primary user interface (UI). From here, you can review and
adjust all projector and display settings.
The OSD interface uses tabs to display the main menu. Each main menu contains submenus.
The OSD can be disabled by pressing the OSD on/off button.
Image 5-2: Home menu
