R5906112 /09 UDX series 181
10.16 Electronic Convergence
What can be done?
The convergence patterns can be used to check the convergence alignment of red, green and blue. If there is
a misalignment of at least one 1 pixel, an electronic realignment is possible.
Mechanical realignment of the convergence can only be done by a qualified service technician.

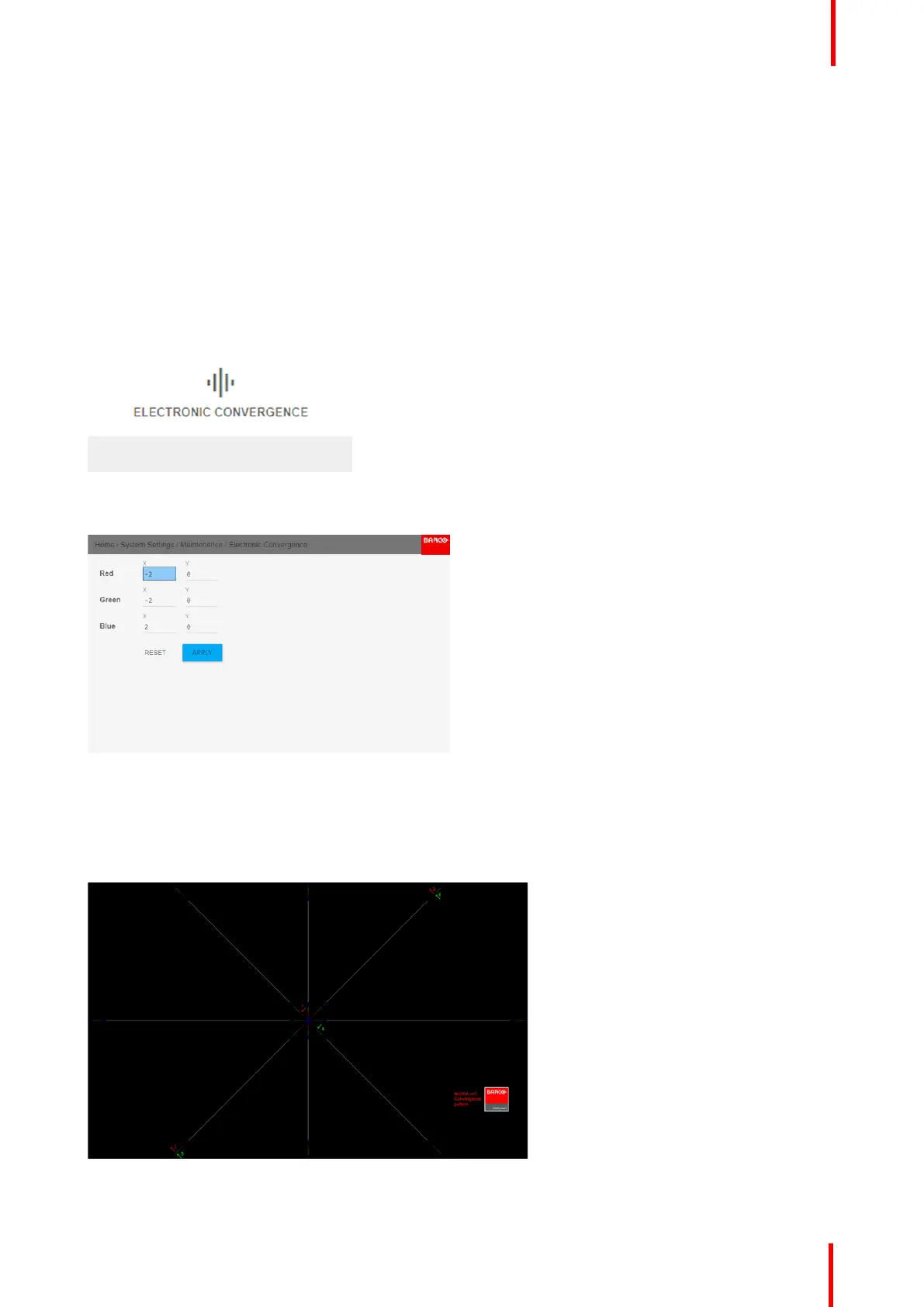

How to display the convergence settings
1. In the main menu, navigate to System Settings → Maintenance → Electronic Convergence.
Image 10-43: Maintenance menu, Electronic Convergence
The Electronic Convergence menu is displayed.
Image 10-44
2. Select the desired X or Y value for one of the three colors and confirm.
3. Use the arrow keys to raise or lower the value and confirm.
4. Confirm all changes by pressing Apply.
Image 10-45
GUI – System Settings
