Barco UDX Series User Manual

R5906112 /09 UDX series 83
6.2 Displaying multiple sources: Stitched layouts
About stitched layouts
The first time you use a selected single source, the source will be displayed in the projector's native resolution.
If the resolution of the source is different to the projector's resolution, the image is stretched or shrunk.
It is however possible to configure and display two or four source signals to make up one single image in full
native resolution. This is called a Stitched Layout: the sources are stitched together.
The following table lists which stitched layouts you can use, and in which display mode these layouts can be
used.

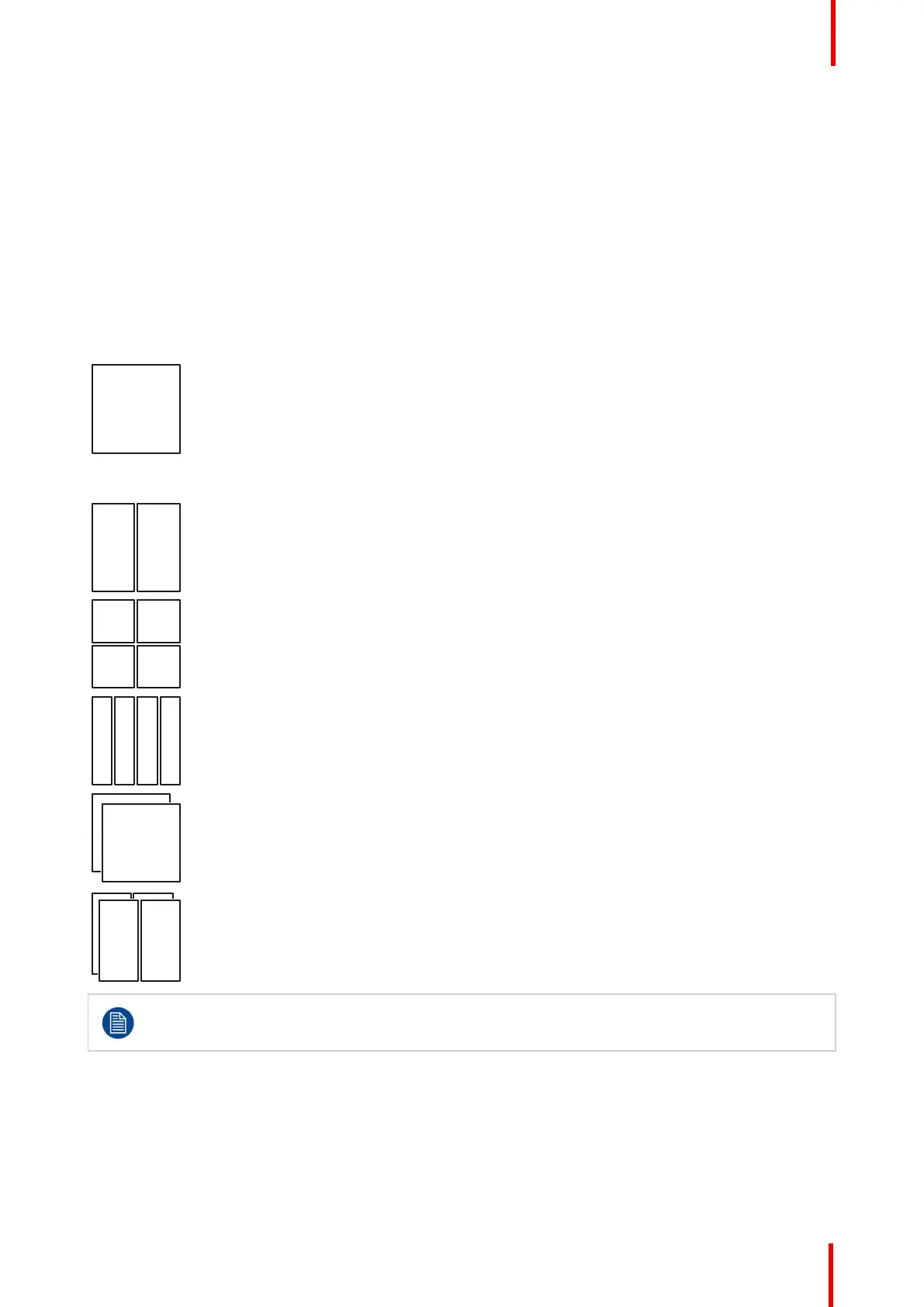

The table below describes the different Stitch Layouts and scan directions.
Type of layout Description
Available connectors Mode
1
: Single
A single source is displayed in
full screen
Quad Combo input:
• SDI (4x)
• HDBaseT (2x)
• DisplayPort
• HDMI
Quad DP 1.2 Input:
• DisplayPort (4x)
Mono / Active
stereo
1 2
: Dual 1 x 2
Two inputs are required. The
sources are displayed next to
each other.
Quad DP 1.2 Input:
• 2x DisplayPort
Mono / Active
stereo
1 2
3 4
: Quad 2 x 2
Four inputs are required. The
sources are displayed in four
quadrants.
Quad Combo input:
• 4x SDI input
Quad DP 1.2 Input:
• 4x DisplayPort
Mono / Active
stereo
1 2 3 4
: Quad 1 x 4
Four inputs are required. The
sources are displayed next to
each other.
Quad DP 1.2 Input:
• 4x DisplayPort
Mono / Active
stereo
1
: 2 x single
Two inputs are required. The
sources are displayed one
above the other.
Quad DP 1.2 Input:
• 2 x DisplayPort
Passive stereo
1 2
: 2 x Dual 1 x 2
Four inputs are required. Two
sources are displayed next to
each other, while the other two
are displayed above the first
two
Quad DP 1.2 Input:
• 4x DisplayPort
Passive stereo
Even if passive stereo sources are selected, the output of this projector can only be in either 2D or
in Active Stereo. Advanced image processing will make sure a passive stereo image is properly
converted to active stereo.
How to select a stitched layout
1. Press Menu to activate the menus and select Source.
GUI – Source
