How to remove
1. Loosen the captive three screws (reference 1) of the backside of the projector. Use a 7 mm flat screwdriver.
2. Remove the cover from the projector.

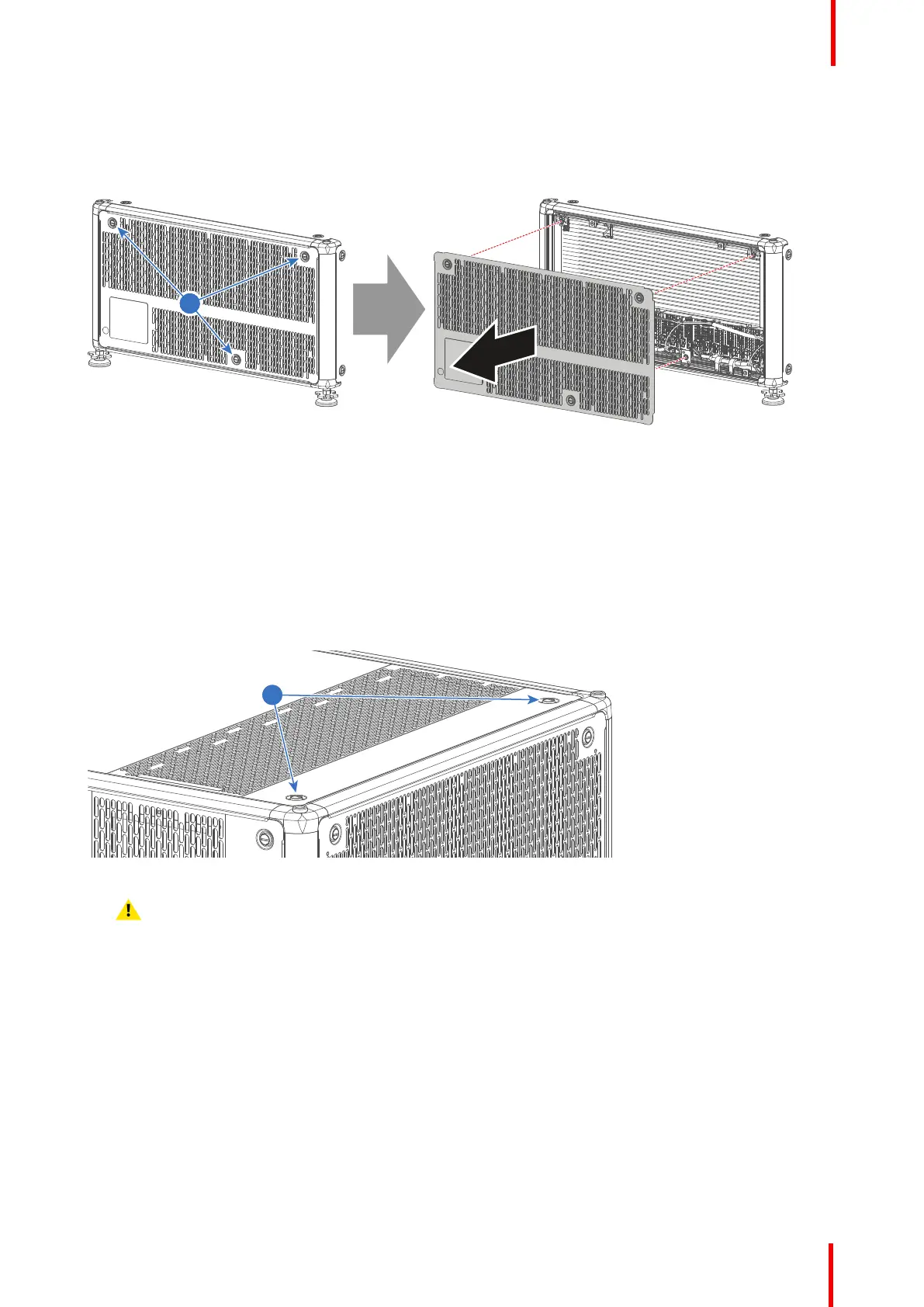

Image 11-3: Remove back cover
11.4 Removal of the small top cover
Required tools
7 mm flat screw driver
How to remove
1. Loosen the two captive screws (reference 1) of the small top cover at the back side of the projector.
Image 11-4
Caution: Only loosen the captive screws at the backside of the projector. It is not necessary to loosen
the captive screws at the front side of the top cover.
2. Flip the small cover open and remove it carefully.
Removal and installation of the projector covers
