R5906113 /08 UDX88
8.1 Overview
Content of the kit
The laser range finder & camera kit contains the following:
• Laser range finder & camera assembly
• 2 Allen screws (M4 x 6)
• A new cover plate for the UDX front cover
• Battery holder (optional)
• 2 Torx screws (M3 x 8 T10)
The battery holder is fit for 2 AA batteries. These batteries are not included in the kit.

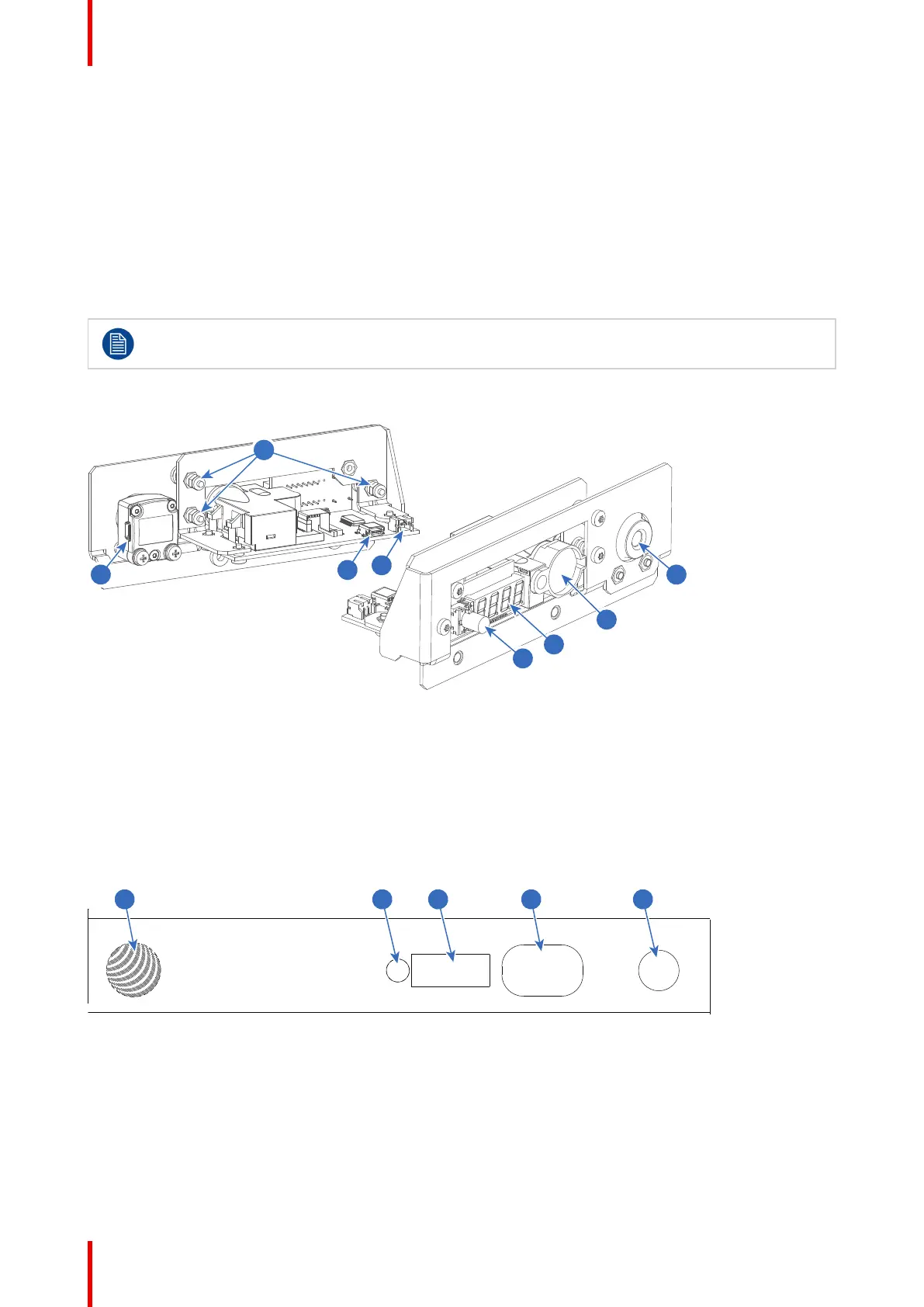

Overview laser range finder & camera assembly
Image 8-1
1 Range finder adjustment screws
2 USB connector camera
3 USB connector laser range finder
4 Connector battery holder
5 Range finder push button
6 Range finder display
7 Laser range finder
8 Camera
Overview new cover plate
The front side of the cover plate is painted black with a removable protective foil to protect it. The back side of
the cover plate is painted black and has an adhesive placed on it.
Image 8-2
1 IR (Infra-Red) filter
2 Hole for Range finder push button
3 Clear part for range finder display
4 Clearance for laser range finder
5 Clearance for camera
Laser range finder & camera kit
