R5906113 /08 UDX110

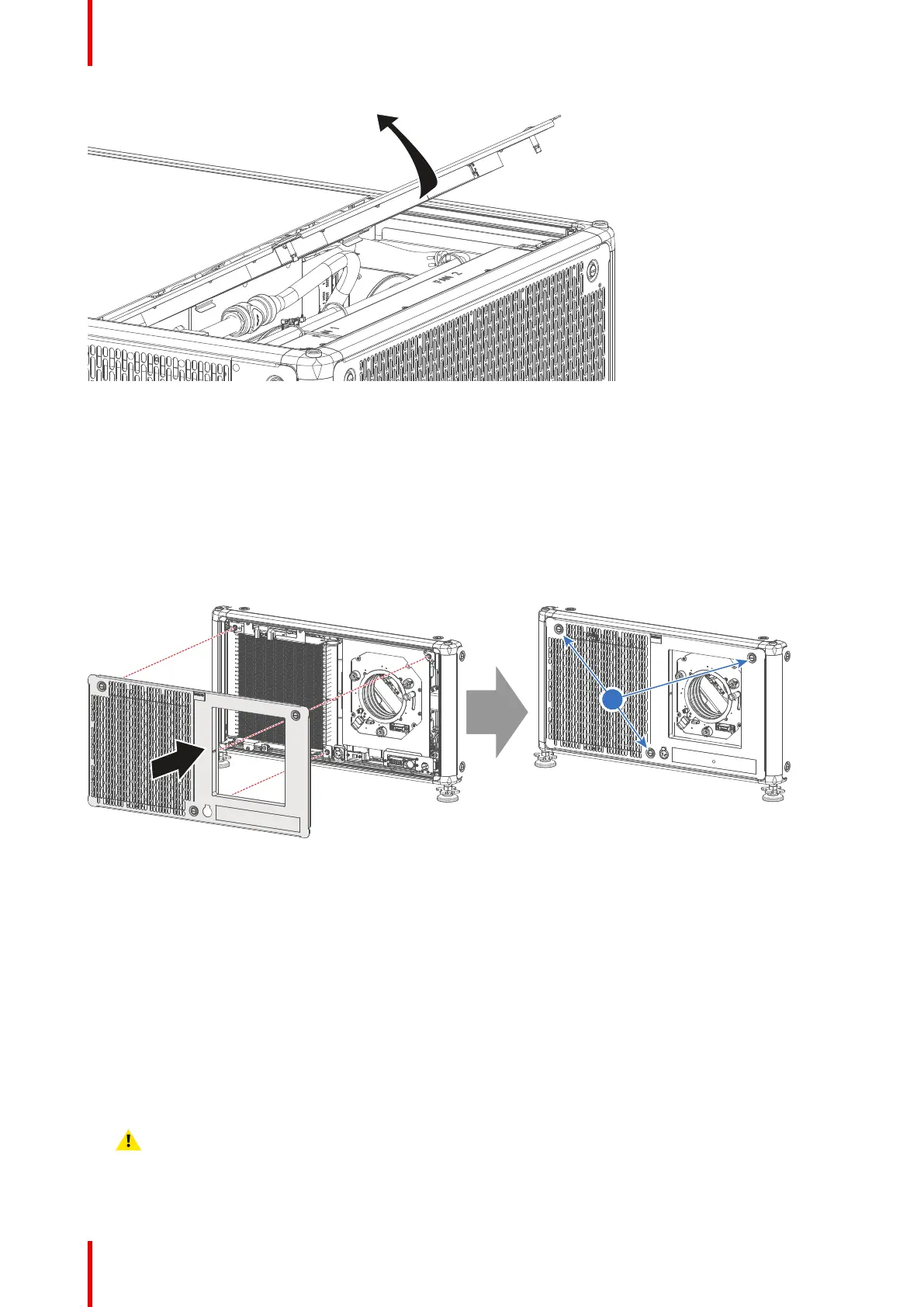

Image 11-5: Flip the small top cover
11.5 Mounting the front cover
Required tools
7 mm flat screw driver
How to mount
1. Place the front cover on its place, with the filter facing the projector.
Image 11-6: Mount front cover
2. Fasten the three captive screws (reference 1).
3. Mount the lens again. See “Lens installation”, page 47.
11.6 Mounting the left cover
Required tools
7 mm flat screw driver
How to mount
1. Place the cover on its place, with the grating of the filter facing the backside of the projector.
Caution: Do NOT try to fasten the cover while holding it upside down (with the filter facing the front
side). This WILL damage the projector.
Removal and installation of the projector covers
