R5906113 /08 UDX68
6.6 Input source connections – Quad DP 1.2 Input
board
Quad DP 1.2 Input board
SEL
SEL
SEL
SEL
DP A
DP B
DP C
DP D
SYNC
SYNC
SYNC
SYNC
1 2 3 4

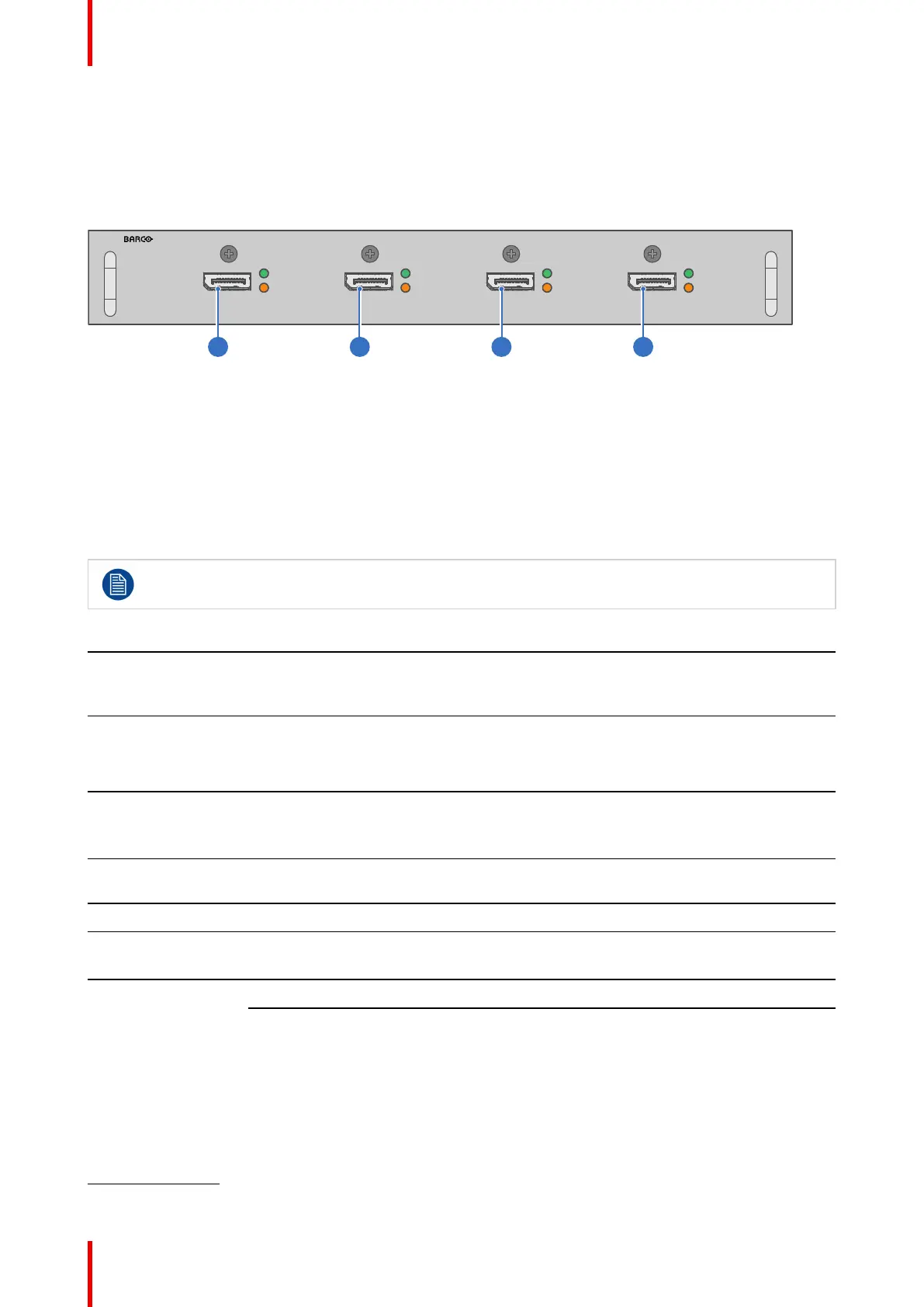

Image 6-11
1 Quad DisplayPort channel A input
2 Quad DisplayPort channel B input
3 Quad DisplayPort channel C input
4 Quad DisplayPort channel D input
The yellow LED lights up when valid input sync is detected.
The green LED lights up when the input is selected.
Input specifications – DisplayPort 1.2 inputs
For readability, the video timings listed are summarized. For the full list of video timings, refer to the
appendices.
Pixel rate Up to 600 MHz pixel clock
Color space • YCbCr 4:2:2
• YCbCr 4:4:4
• RGB 4:4:4
Color depth • 24 bpp
• 30 bpp
• 36 bpp
Data rate support • 1.62 Gbps: Reduced Bit Rate (RBR)
• 2.7 Gbps: High Bit Rate (HBR)
• 5.4 Gbps: High Bit Rate 2 (HBR2)
For future release • Interlaced support
• HDCP 1.4
Audio not supported
3D support • Field sequential 3D (Active 3D)
• Passive stereoscopic 3D (Passive stereo) converted to active 3D
Video timings
progressive
5
2D / 3D Layout Mode Supported formats
2D Standard layout (1x1
layout)
• Up to 4096 x 2160 @24 Hz
• Up to 4096 x 2160 @30 Hz
• Up to 2048 x 1080 @48 Hz
• Up to 4096 x 2160 @50 Hz
• Up to 4096 x 2160 @60 Hz
• Up to 2560 x 1600 @120 Hz
Input & Communication
5: For the full list of video timings, see Appendix
