Barco UDX Installation Manual

R5906113 /08 UDX20
1.6 HD in function of modifying optics
Hazard Distance
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
0,5
1
1,5
2
2,5
3
3,5
4
4,5
5
5,5
6
6,5
7
7,5
8
8,5
9
9,5
10
10,5
11
11,5
12

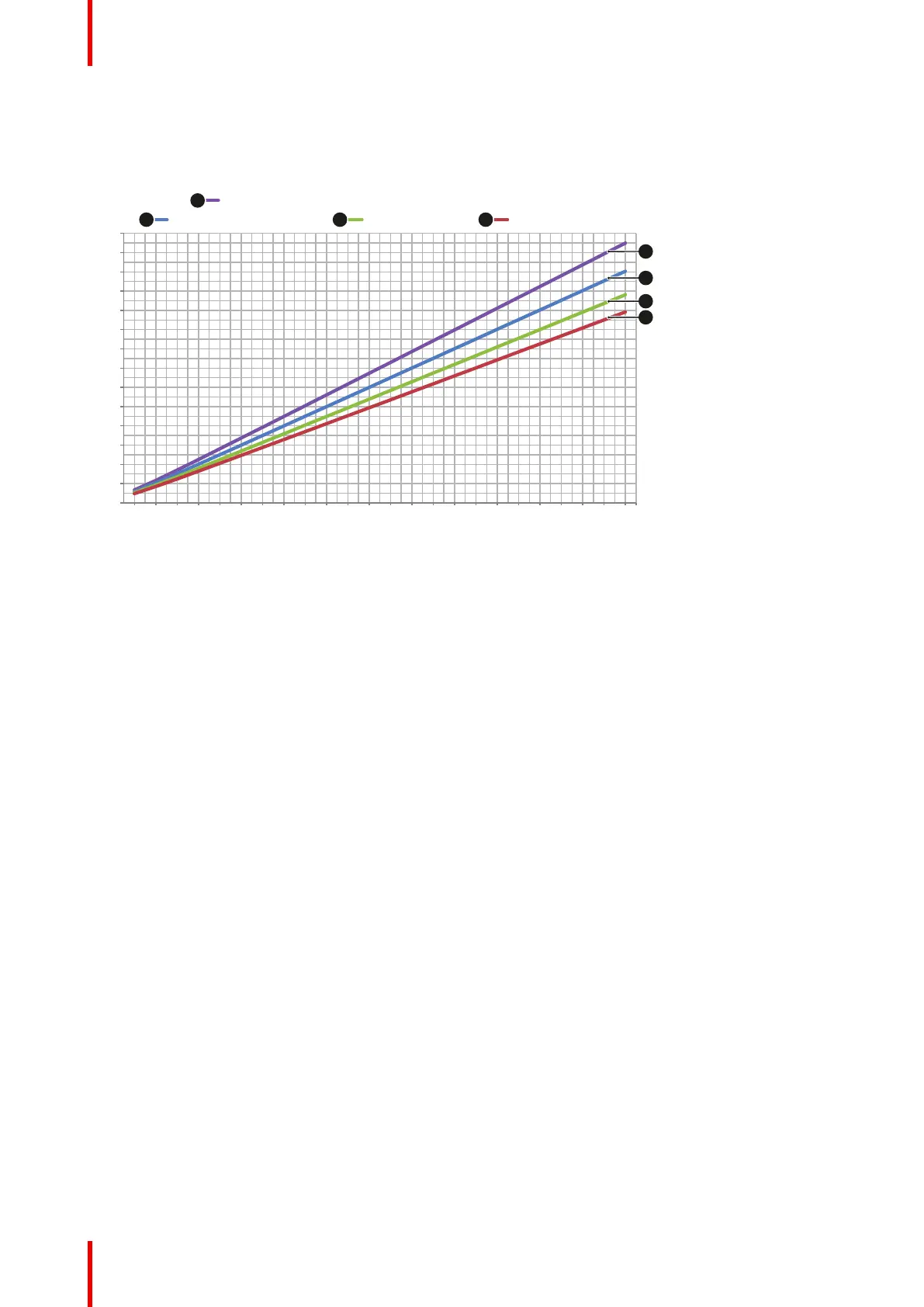

Hazard Distance (HD) [m]
Throw Rao (TR)
UDX 4K40, UDX 4K40 LC, UDX W40, UDX W40 LC, UDX U40, UDX U40 LC
UDX 4K32, UDX W32, UDX U32 UDX 4K26, UDX W26 UDX 4K22, UDX W22
1
2 4
3 42
1
1
2
3
4
Image 1-5
HD Hazard Distance
TR Throw Ratio
Safety

Barco UDX Specifications

General

Brand	Barco
Model	UDX
Category	Projector
Language	English
