How to power off
1. Switch off the projector with the mains switch. '0' must be pressed.

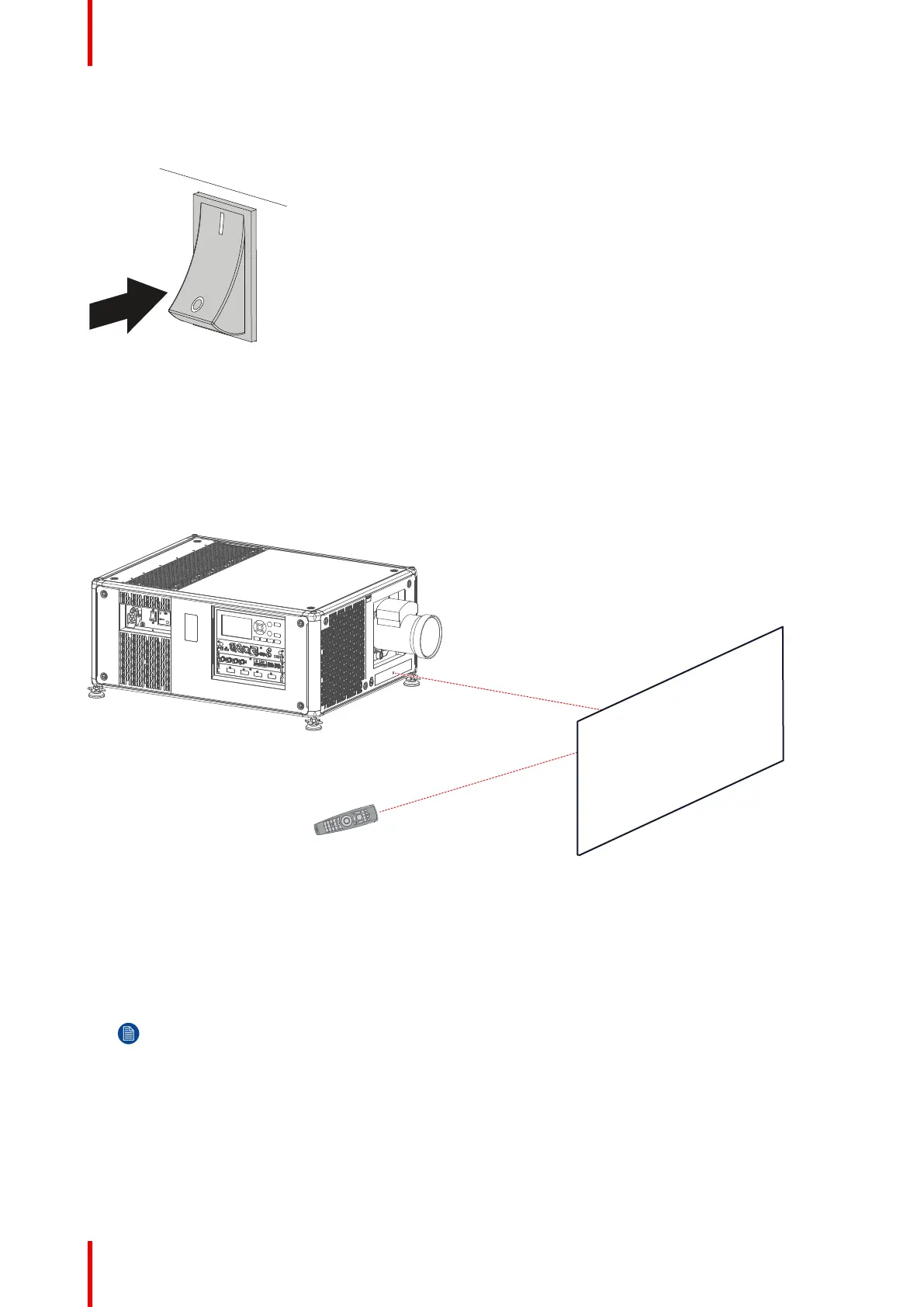

Image 9-5
2. Unplug the power cord from the projector.
9.4 Using the RCU
Pointing to the reflective screen
1. Point the front of the RCU to the reflective screen surface.
Image 9-6: IR control via reflective screen
Hardwired to the XLR input
1. Plug one end of the remote cable in the connector on the bottom of the RCU.
2. Plug the other end in the big connector on the communication interface of the projector, labelled ‘Remote
CTRL’.
Note: Plugging the remote control will switch the broadcast address of the remote control to the
default value '0'. This is the only broadcast address that will work when hardwired. If you want to
change the broadcast address after disconnecting the remote control, see “Projector Address”, page
97.
Pointing directly to the IR sensor
When using the wireless remote control, make sure you are within the effective operating distance (30 m, 100
ft in a straight line). The remote control unit will not function properly if strong light strikes the sensor window or
if there are obstacles between the remote control unit and the projector IR sensor.
