R5906113 /08 UDX 25
the UDX flight case easy to handle. The floor of the flight case wagon is equipped with two small covered
compartments to store the remote control and the rigging clamps.

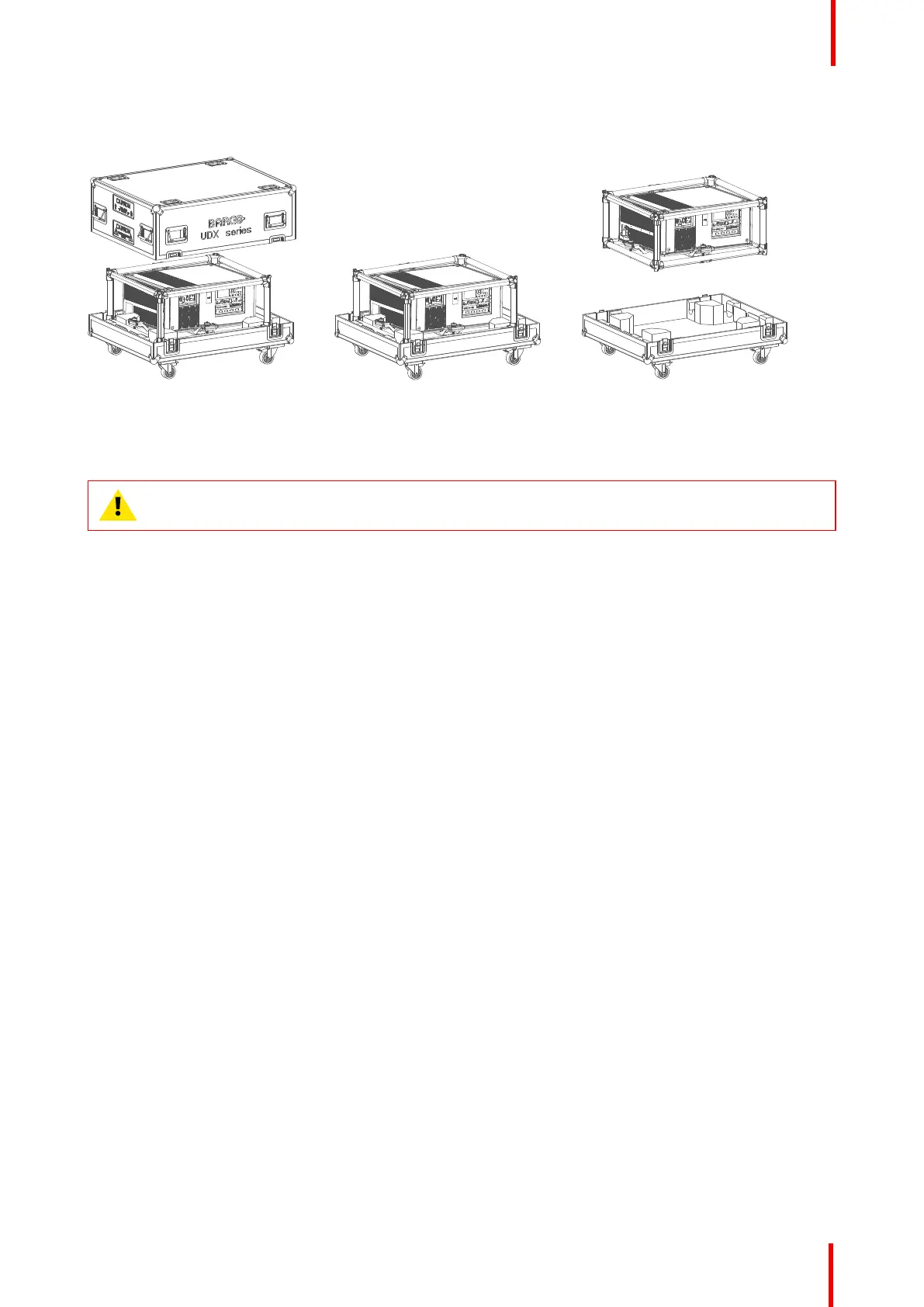

Image 2-4: UDX Flight case
Order number flight case: R9855884
The dimensions of the flight case are optimal for maximum utilization of the floor area of a truck. The cover of
the UDX flight case has four stacking dishes, which allows to stack the flight cases.
WARNING: Maximum stack 2 UDX flight cases high. Never higher.
2.4 Initial inspection
General
Before shipment, the projector was inspected and found to be free of mechanical and electrical defects. As
soon as the projector is unpacked, inspect for any damage that may have occurred in transit. Save all packing
material until the inspection is completed. If damage is found, file claim with carrier immediately. The Barco
Sales and Service office should be notified as soon as possible.
Box content
After unpacking the projector it is recommended to check if all following items where included:
• One power cords of 2.7 m (3G10, 32A)
• One Quick Start guide
• One Safety manual
• One Web site reference sheet
• One remote control unit (RCU)
• 2 batteries for the RCU.
Mechanical check
This check should confirm that there are no broken knobs or connectors, that the cabinet and panel surfaces
are free of dents and scratches, and that the operating panel is not scratched or cracked. The Barco Sales
and Service office should be notified as soon as possible if this is not the case.
2.5 Projector configurations
The different configurations
Depending on the installation the projector can be mounted in different ways, the different configurations are:
1. Front / Table (F/T)
2. Front / Ceiling (F/C) (upside down)
3. Front / Ceiling (F/C) (table position)
Installation preparations
