R5906113 /08 UDX 73
Use case 4: Loop-through mode

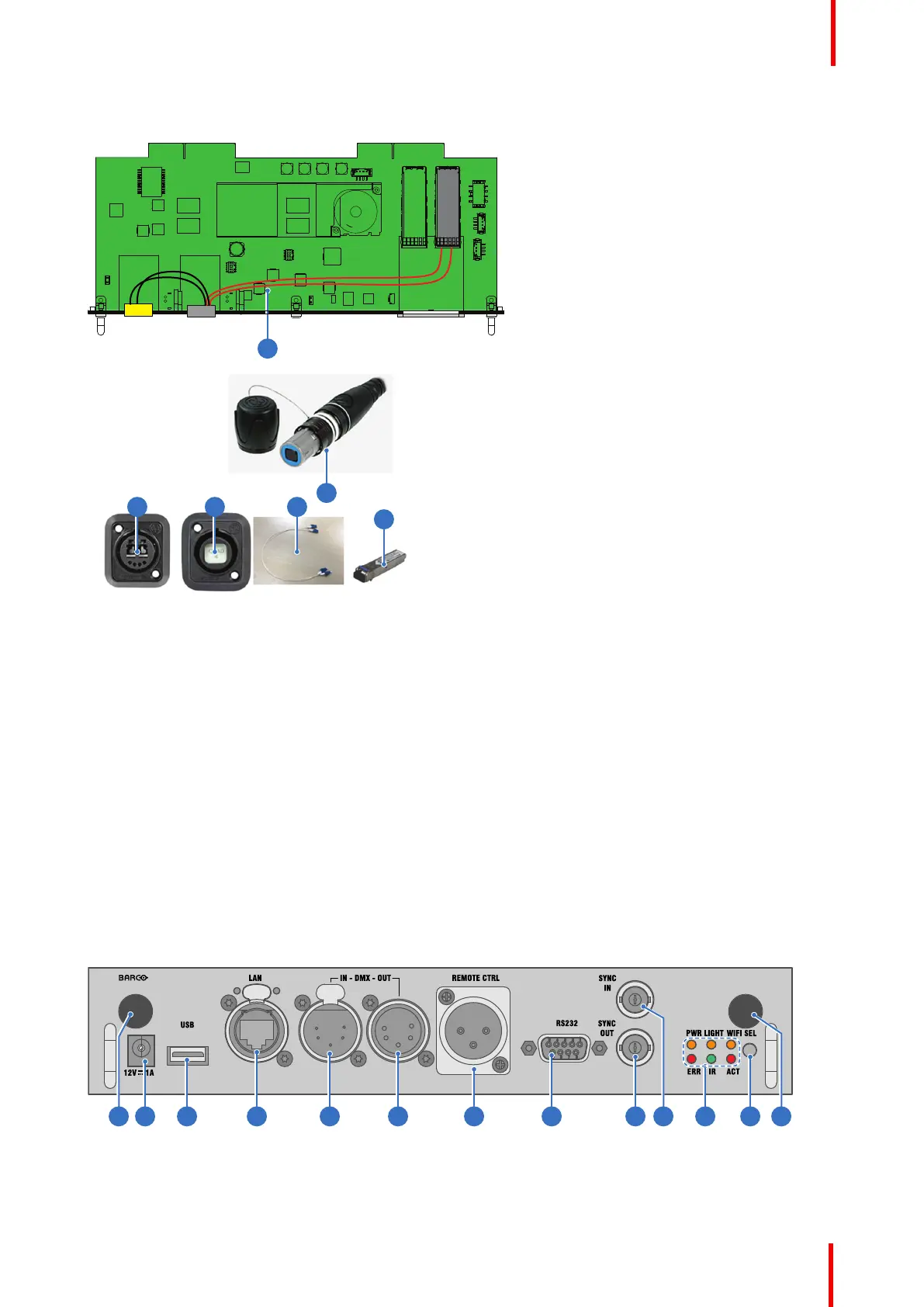

Image 6-16
1 SFP input board
2 Neutrik OpticalCon Duo
3 Neutrik OpticalCon Quad
4 Internal fiber cable
5 SFP+ fiber transceiver
6 Advanced Quad cable
Barco delivers only the Fiber-Network input board and SFP+ fiber transceiver.
The customer has to buy the SFP+ transceivers, both Neutrik connectors, the internal cable and the cable.
1. Remove both plates covering the access to a Neutrik connector locations.
2. Mount the Neutrik OpticalCon Quad connector and the Neutrik OpticalCon Duo.
3. Remove the plate covering the access to the SFP cage and insert the SFP+ transceivers.
Re-install the cover plate.
4. Mount the fiber internal cables between the Neutrik OpticalCon Quad and the SFP+ transceivers.
5. Mount the fiber internal cables between the Neutrik OpticalCon Quad and the Neutrik OpticalCon Duo.
6.8 Communication connections
Communication Panel
321 4 5 6 7 8 9 10 11 12 13
Image 6-17
Input & Communication
