R5906113 /08 UDX64
2D Standard layout (1x1
layout)
• Up to 4096 x 2160 @24 Hz
• Up to 4096 x 2160 @30 Hz
• Up to 2048 x 1080 @48 Hz
• Up to 4096 x 2160 @50 Hz
• Up to 4096 x 2160 @60 Hz
• Up to 2560 x 1600 @120 Hz
Active
3D
Standard layout (1x1
layout)
• 1600 x 1200 @120 Hz
• 2560 x 1080 @120 Hz
• 2560 x 1600 @120 Hz
Native video
timings
• UDX-U-series: 1600 x 1200 @60 Hz
• UDX-W-series: 1920 x 1200 @60 Hz
• UDX-4k-series: 3840 x 2400 @60 Hz
6.5 Input source connections – Quad combo input
Mk I
Remark concerning the Mark 1 and Mark 2 boards
Due to mechanical and technical limitations of this input board, a new version of the Quad combo input board
has been created (Mark 2, see also “Input source connections – Quad combo input Mark II”, page 59). Due to
this, this board will miss functionality that has been implemented on the new board. These missing features
include:
• Loop-through functionality
• 12G SDI support
• Network connectivity on HDBaseT inputs
To upgrade your input board to the Mark 2 board, contact Barco.

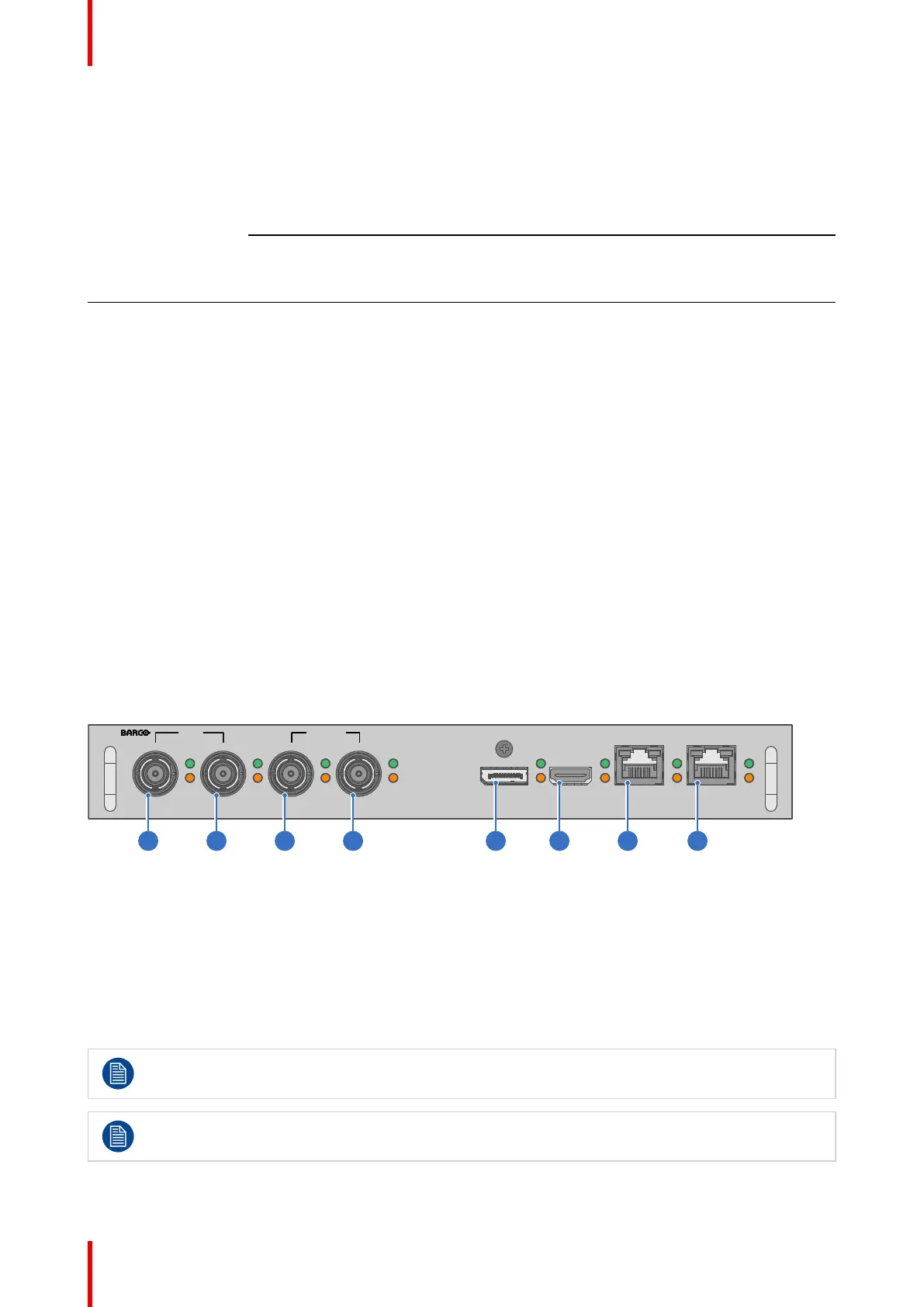

Overview Mark 1 Quad Combo Input board
SEL
SEL
SEL
SEL
SEL
SEL
SEL
SDI IN SDI IN/OUT
SEL
SYNC
A
SYNC
B
SYNC
C
SYNC
D
DP
HDMI
SYNC
HDBT 1
SYNC
HDBT 2
SYNC SYNC
1 2 3 4 5 6 7 8
Image 6-10
1 Quad SDI channel A: 3G input
2 Quad SDI channel B: 3G input
3 Quad SDI channel C: 3G input
4 Quad SDI channel D: 3G input
5 DisplayPort Input
6 HDMI input
7 HDBaseT input 1
8 HDBaseT input 2
The yellow LED lights up when valid input sync is detected.
The green LED lights up when the input is selected.
Input specifications – SDI Inputs
For readability, the video timings listed are summarized. For the full list of video timings, refer to the
appendices.
3G SDI follows the SMPTE 425M standard Level A
HD-SDI follows the SMPTE 292M standard
Input & Communication
