30
7113868.01 - it
ISTRUZIONI DESTINATE ALL’INSTALLATORE

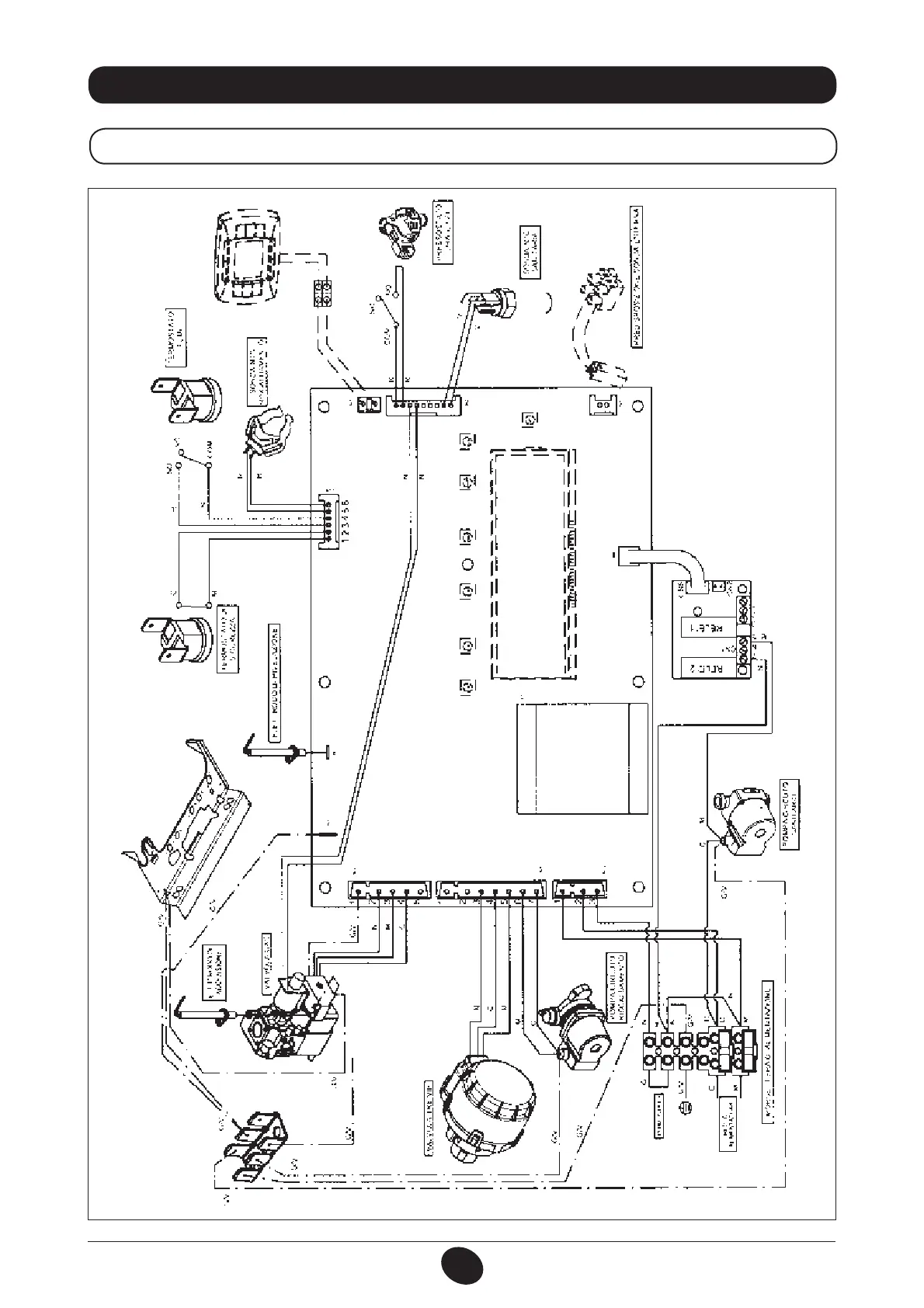

36. SCHEMA COLLEGAMENTO CONNETTORI
240 i - 280 i
Colore cavetti
C = Celeste
M = Marrone
N = Nero
R = Rosso
G/V = Giallo/Verde
B = Bianco
V = Verde
CG_2321 / 1102_1609
