INSTRUCTIONS FOR FITTERS
This is a high static head pump t for installation on any type of single or double-pipe heating systems. The automatic air
valve incorporated in the pump allows quick venting of the heating system.

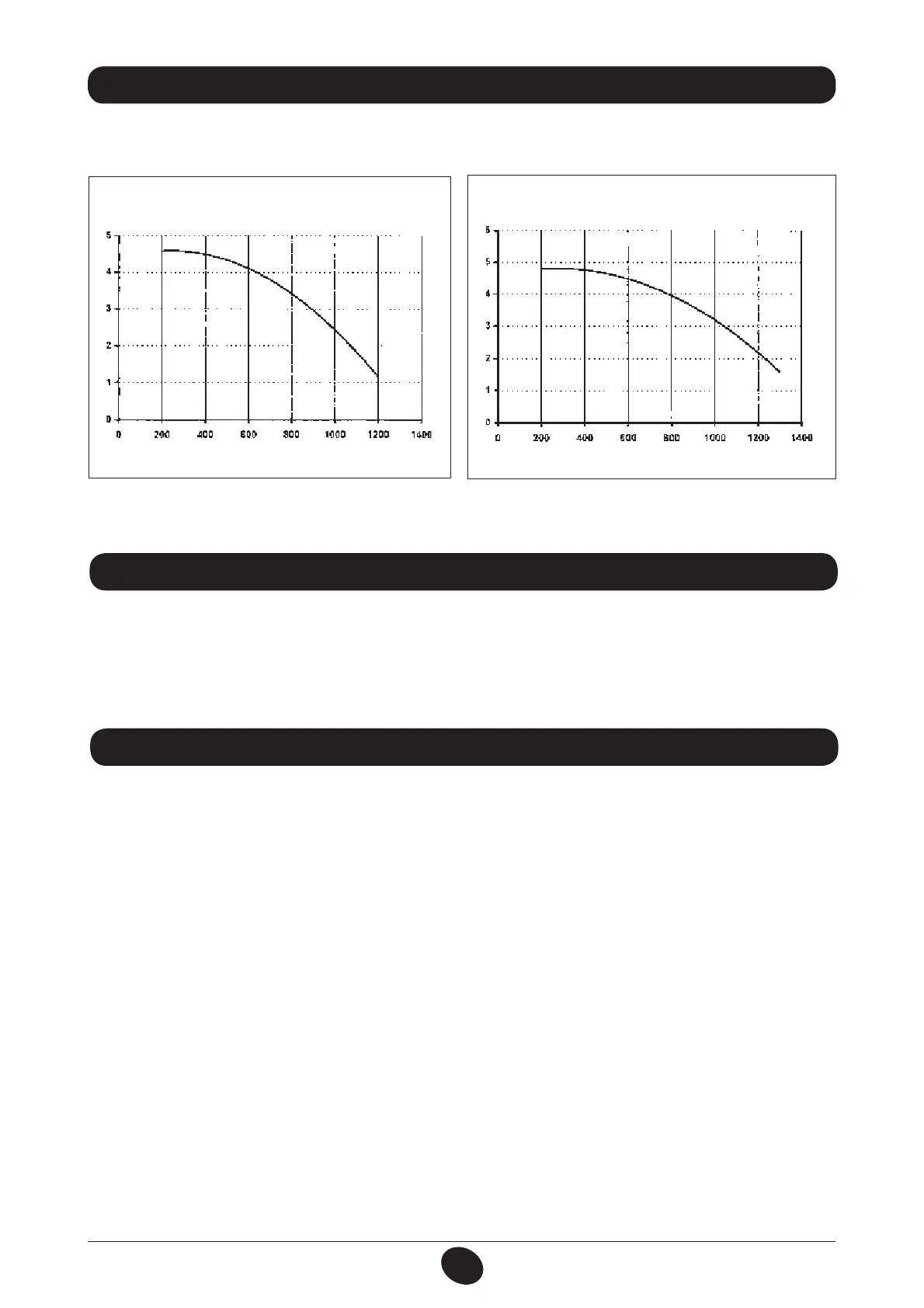

24. PUMP CAPACITY/ HEAD
N.B.: An oversize pump with the same characteristics as the pump mounted on the 280 models is available for the
140-240 models.
mod. 280
020516_0500
020516_0400
mod. 140 - 240
FLOW l/h
HEAD
mH
2
O
FLOW l/h
HEAD
mH
2
O
Drain the water in the storage boiler as follows:
r DMPTFUIFXBUFSJOMFUUBQ
r PQFOBVTFSUBQ
r PQFOUIFSFMBUJWFESBJOUBQ'JH#
r MPPTFOUIFOVUPOUIF%)8PVUMFUQJQFBUUIFCPUUPNPGUIFTUPSBHFCPJMFS
25. DRAINING THE STORAGE BOILER
26. DHW EXPANSION VESSEL (AVAILABLE ON REQUEST)
For models 140Fi - 240 i - 240 Fi - 280 i - 280 Fi
Expansion vessel kit comprising:
TUBJOMFTTTUFFMFYQBOTJPOWFTTFM
TVQQPSUGPSFYQBOTJPOWFTTFM
OJQQMF(u
MPDLOVU
- 1 connection hose.
Connect the hose (supplied as an accessory in the expansion vessel kit) to the two connectors A and B as shown in gure
15.

Baxi Nuvola 3 BS 280 Fi Specifications

General

Brand	Baxi
Model	Nuvola 3 BS 280 Fi
Category	Boiler
Language	English
