Park motorcycle, ensuring that
support surface is firm and
level.
Removing center fairing panel
( 119).

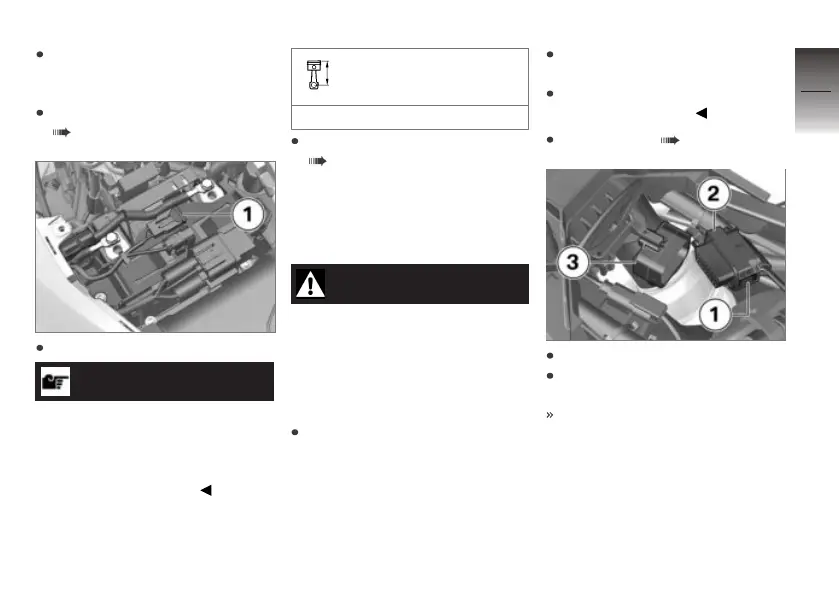

Replace defective fuse 1.
NOTICE
If the fuses blow frequently, have
the electrical system checked by
an authorized specialized work-
shop, preferably an authorized
BMW Motorrad retailer.
Main fuse
30 A (Voltage regulator)
Installing center fairing panel
( 119).
Diagnostic connector
Removing the diagnostic
connector
CAUTION
Incorrect procedure followed
when disconnecting the data
link connector for the On-
Board Diagnostics.
Motorcycle experiences malfunc-
tions
Only have the data link con-
nector disconnected by a spe-
cialist workshop or other autho-
rized persons during your next
BMW Service appointment.
Have the work performed by
appropriately trained staff.
Refer to the vehicle manufac-
turer specifications.
Remove seat ( 50).
Press locks 1 on both sides.
Remove the diagnostic con-
nector 2 from the bracket 3.
The diagnosis and information
system interface can be con-
nected at the diagnostic con-
nector 2.
9
125
z
Maintenance
