BMW F 800 GS User Manual

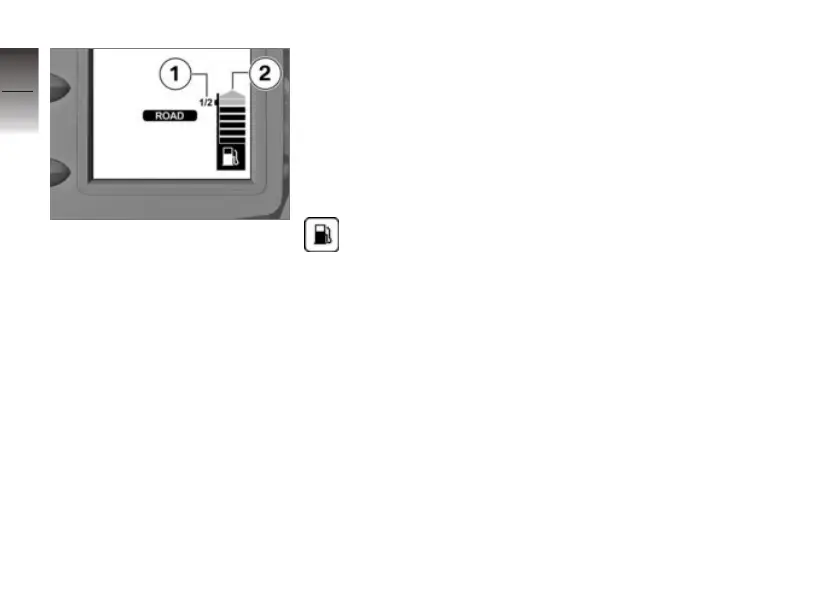

The 2 tip indicates that the fuel
tank is more than half full.
If the fuel gage drops to the
1/2 mark 1, the fuel tank is still
half full. Now, the fill level is ex-
actly displayed.
If the fuel reserve has been
reached, the low-fuel warning
light is switched on.
Fuel reserve
The fuel quantity that is in the
fuel tank when the low-fuel warn-
ing light switches on depends on
the riding dynamics: the more
substantially the fuel is moved in
the tank (as a result of frequently
changing lean angles, frequent
braking and acceleration), the
more difficult it becomes to de-
termine the fuel reserve. How-
ever, the fuel tank still contains at
least the fuel reserve specified on
the back cover.
After the low-fuel warning
light is switched on, the
distance ridden since this point in
time is indicated.
The distance that can still be
traveled with the fuel reserve
depends on the riding style (on
the consumption) and on the fuel
quantity that was still available at
the time of switch-on (see previ-
ous explanation).
The odometer for the fuel
reserve is reset when the fuel
quantity after refueling is greater
than the fuel reserve.
3
34
z Displays

BMW F 800 GS Specifications

General

Displacement	798 cc
Bore x Stroke	82 mm x 75.6 mm
Power	85 hp (63 kW) at 7, 500 rpm
Fuel System	Electronic fuel injection
Front Suspension	Upside-down telescopic fork, Ø 43 mm
ABS	Standard
Compression Ratio	12.0:1
Final Drive	Chain
Engine Type	Liquid-cooled, 4-stroke, parallel twin
Torque	83 Nm (61 lb-ft) at 5, 750 rpm
Transmission	6-speed
Rear Suspension	Cast aluminum dual swing arm
Front Brake	Twin disc, 300 mm, 2-piston floating calipers
Rear Brake	Single disc, 265 mm, single-piston floating caliper
Fuel Capacity	16 liters
Seat Height	880 mm
Wet Weight	214 kg
Dry Weight	421 lbs (191 kg)
Frame	Tubular steel frame
Length	2, 320 mm
Width	945 mm
Height	1, 350 mm
Wheelbase	1, 578 mm
