Brother MFC-J6545DW User Manual

3-60
Confidential
9.10 ADF Unit/Document Scanner Unit
(1) Turn the Document scanner unit right side up.
(2) Remove the two screws (TAPTITE BIND B M4x12 M9) from the Document
scanner unit.
(3) While pushing the Lock lever of the Document scanner unit, open the ADF unit.
Note: If you lift the ADF unit in the step (4) without fully opened, it is dangerous
because the ADF hinges are unexpectedly and abruptly opened with a strong
force.
(4) Remove the ADF unit from the Document scanner unit.

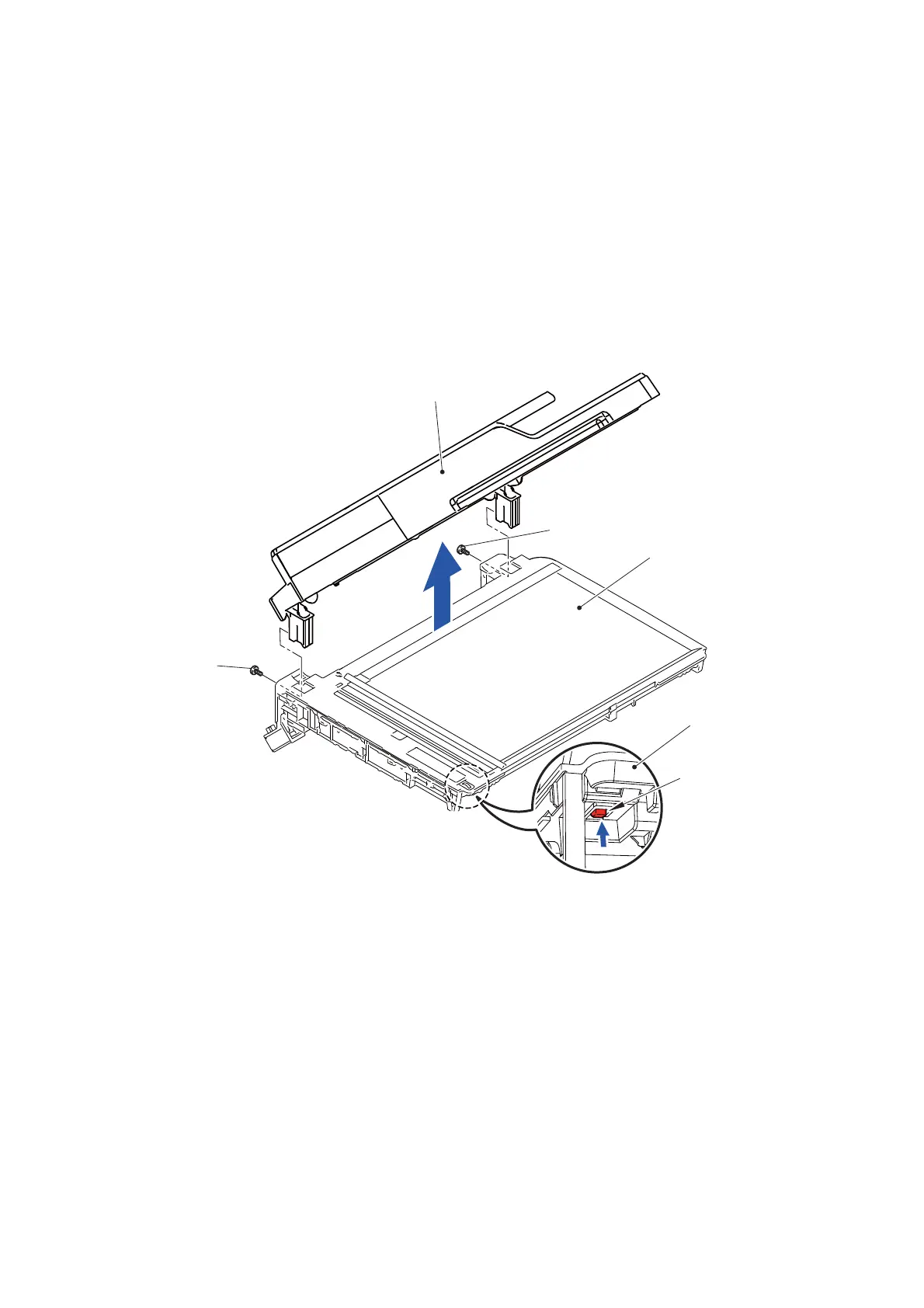

Fig. 3-47
Document scanner unit
ADF unit
Document scanner unit
Lock lever
TAPTITE BIND B M4x12 M9
TAPTITE BIND B
M4x12 M9
