9.41 Ink Refill ASSY
(1) Remove the Ink supply tube from the Support wire.
(2) Remove the Ink supply tube from the Tube support plate.
(3) Release the wiring of Carriage motor harness attached to the Ink refill ASSY.
(4) < Ink tank model / Simple Ink cartridge model only >
Peel off the Cable band just from the Ink sensor flat cable.
Note: Do not remove the Cable band from the Lower cover to reuse it when mounting
a new Ink refill ASSY.
(5) Release the wiring of the Ink sensor flat cable from the Lower cover.
(6) < Ink tank model only >
Remove the two screws (TAPTITE CUP B M3x10) from the Ink refill ASSY.
(7) Remove the Ink refill ASSY from the Lower cover.
< Ink cartridge model >

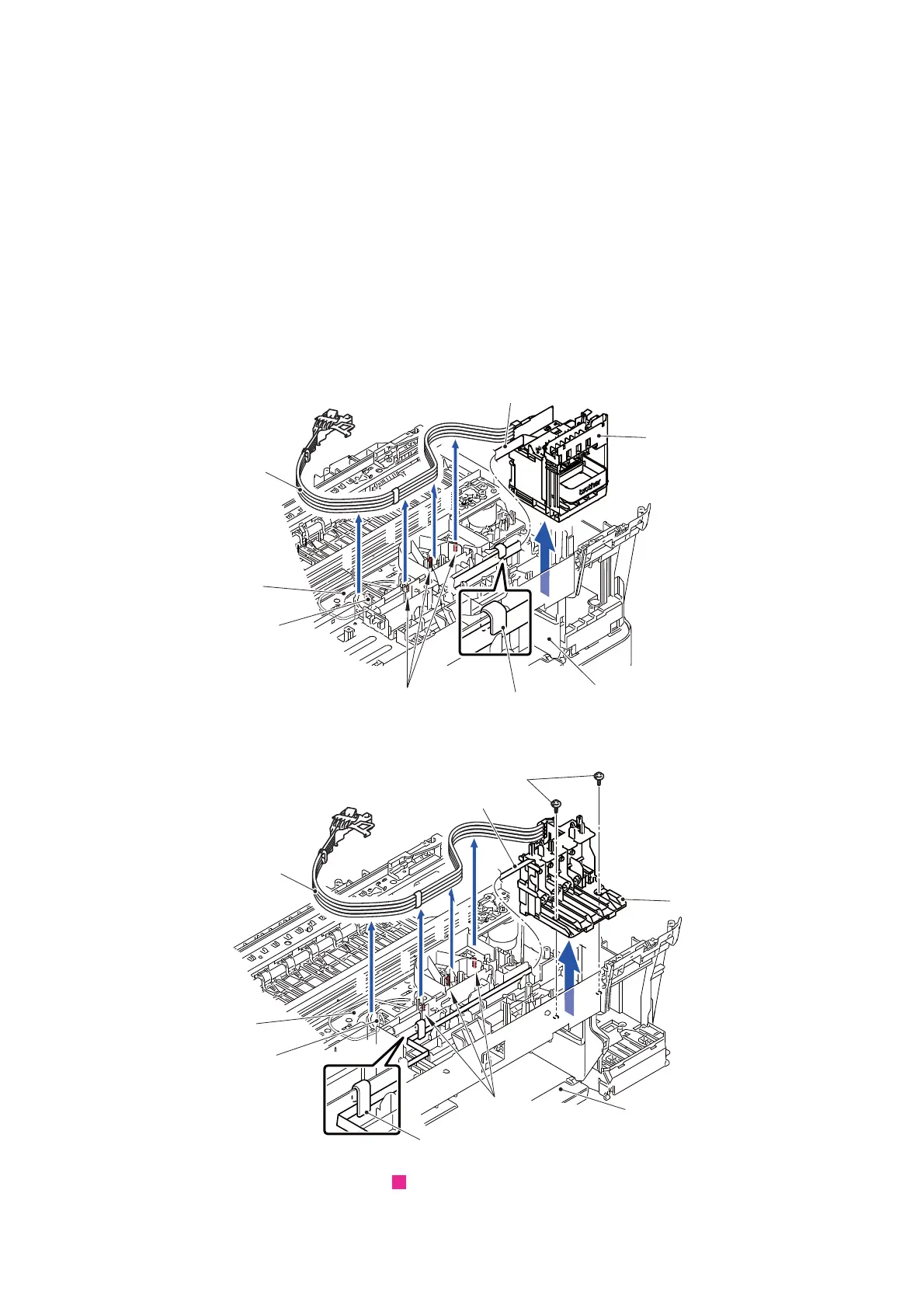

Fig. 3-136
< Ink tank model >
Fig. 3-137
Routing of harnesses: See “ Main PCB/Modem PCB”.
Ink supply tube
Support wire
Tube support plate
Hooks
Ink refill ASSY
7
1
2
2
2
Cable band
Ink sensor flat cable
Lower cover
(Simple Ink cartridge model only)
Ink refill ASSY
Ink supply tube
Hooks
Tube support plate
Support wire
TAPTITE CUP B M3x10
Ink sensor flat cable
Cable band
1
2
2
2
7
Lower cover
2
