(9) Remove the two screws (SCREW PAN (S/P WASHER) M3x6) and remove the
Paper feed motor from the Paper feed motor frame ASSY.
Note: When removing the Paper feed motor, be careful not to lose the Paper feed
motor sleeve.
(10)Disconnect the PF motor harness from the Paper feed motor.

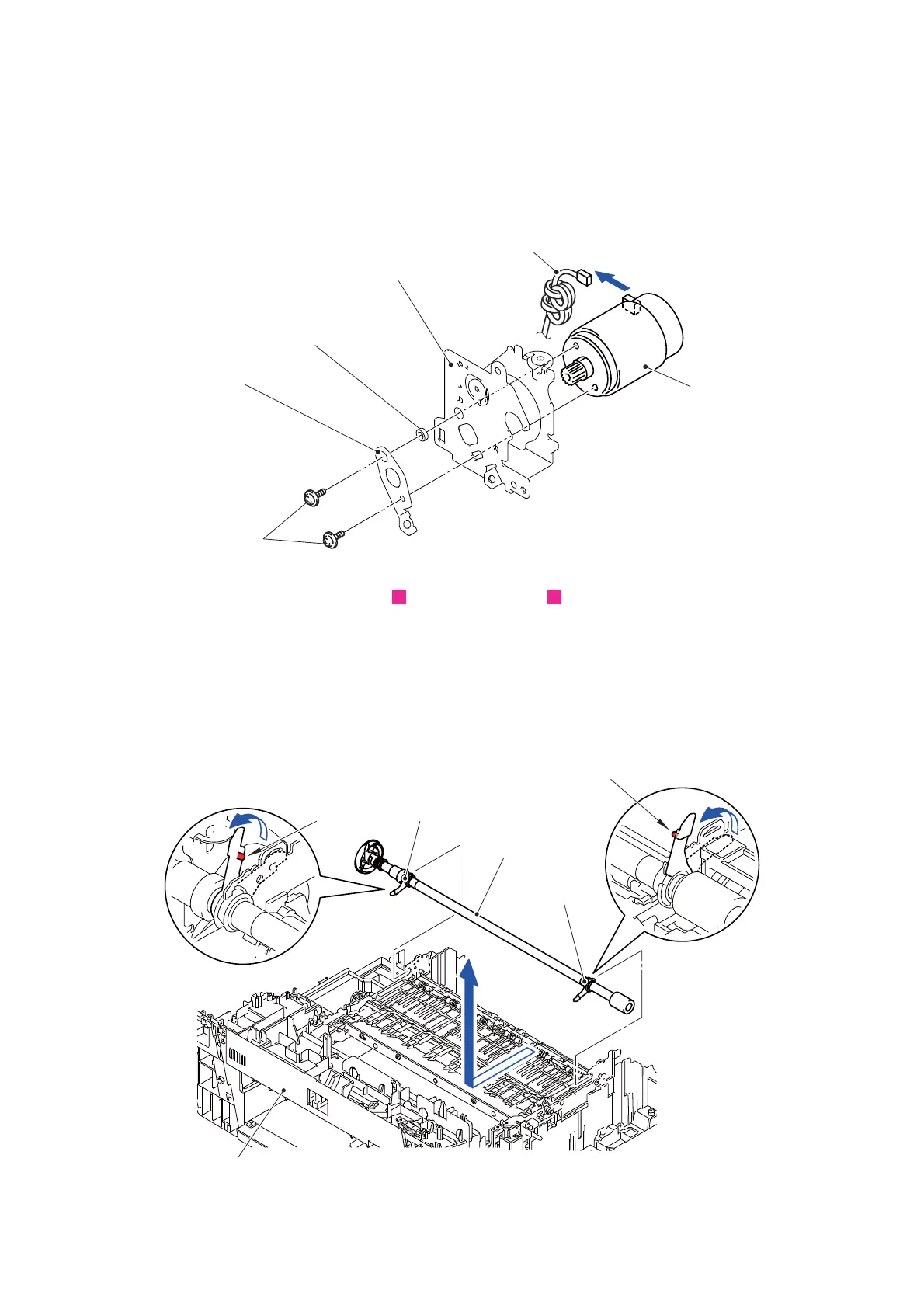

Fig. 3-177
Routing of harnesses: See “ Lower cover L”, “ Paper feed motor”.
9.56 Paper Feed Roller
(1) Turn the PF bushing L2 in the direction of the arrow to unlock it.
(2) Turn the PF bushing R in the direction of the arrow to unlock it.
(3) Remove the Paper feed roller from the Main body.
Fig. 3-178
Paper feed motor frame ASSY
Paper feed motor
Paper feed motor sleeve
Paper feed motor plate
SCREW PAN
PF motor harness
(S/P WASHER) M3x6
7
10
PF bushing L2
Paper feed roller
PF bushing R
Lock
1
2
Lock
3
Main body

Brother MFC-J6545DW Specifications

General

Type	all in one, fax
Color	white/gray, white
Touch Screen	yes
Display Size	3.7 inches
Tray Capacity	350
Output Tray Capacity	100
Automatic Document Feeder Capacity	50 sheets
Printing Method	color
Color Print Speed	20 pages per minute
Mono Print Speed	22 pages per minute
First Page Print Time	6 seconds
Print Resolution Mono	up to 4800 x 1200
Print Resolution Color	up to 4800 x 1200
Media Types	letter-size glossy inkjet paper; 4" x 6" glossy photo paper; letter-size multi-purpose paper
Two-Sided Printing	yes
Maximum Number of Pages Per Month	up to 30, 000
Reduction and Enlargement	yes
Photo Printing	yes
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Duplex Scan	no
Max Copies	999
Copier Resolution Mono	up to 4800 x 1200
Copier Resolution Color	up to 4800 x 1200
Fax Function	yes
Cartridges	lc3037bk, lc3037c, lc3037m, lc3037y, lc3039bk, lc3039c, lc3039m, lc3039y
Number Of Cartridges	4
Number of Ink Tanks	0
Internal Memory	yes
Memory Card	no
Network	wired, wireless
Connectivity	apple airprint, brother iprint&scan, ethernet, google cloud print, mopria print service, usb 2.0, wi-fi, wi-fi direct
Mobile Devices Connection	yes

Weight and Dimensions

Depth	22.6 inches
Height	12.2 inches
Width	22.6 inches
Net Weight	44.3 pounds
