Brother MFC-J6545DW User Manual

4-5
Confidential
1.4 Initialize the EEPROM parameters (Maintenance mode 01)
Initialize the EEPROM parameters, referring to Chapter 5, Section 1.3.1 "EEPROM
Parameter Initialization (Maintenance mode 01, 91)."
1.5 Restore the head calibration data (Maintenance mode 68)
Restore head calibration data that has been backed up in a USB flash memory,
referring to Chapter 5, Section 1.3.24 "Updating of Head Property Information and
Backup/Restoration of Head Calibration Data (Maintenance mode 68)."
If the restoration is successfully completed, the procedure given in “1.16 Write head
calibration data (Maintenance mode 02)” is not required.
1.6 Set the serial number (Maintenance mode 80)
Set the serial number, referring to Chapter 5, Section 1.3.31 "Display of the
Equipment's Log (Maintenance mode 80)."
The serial number can also be set with the service setting tool (BrUsbSn.exe) that
enables the head property information to be updated (“1.7 Updating of head property
information (Maintenance mode 68)”) at the same time.
The serial number setting procedure is given below.
(1) Turn the machine on and switch it to the maintenance mode.
(2) Connect the machine to your PC using a USB cable.
(3) Double-click the memory access tool (MemoryAccessTool.exe) to display
"Maintenance Exception Tool" window.
(4) After checking that the printer is set to "Brother Maintenance USB Printer" on the
window, click Execute.
Tip: Running the memory access tool enables you to write the setting information.
When the main power of the product is turned off, it will disable you to write
the information. Run the memory access tool again.

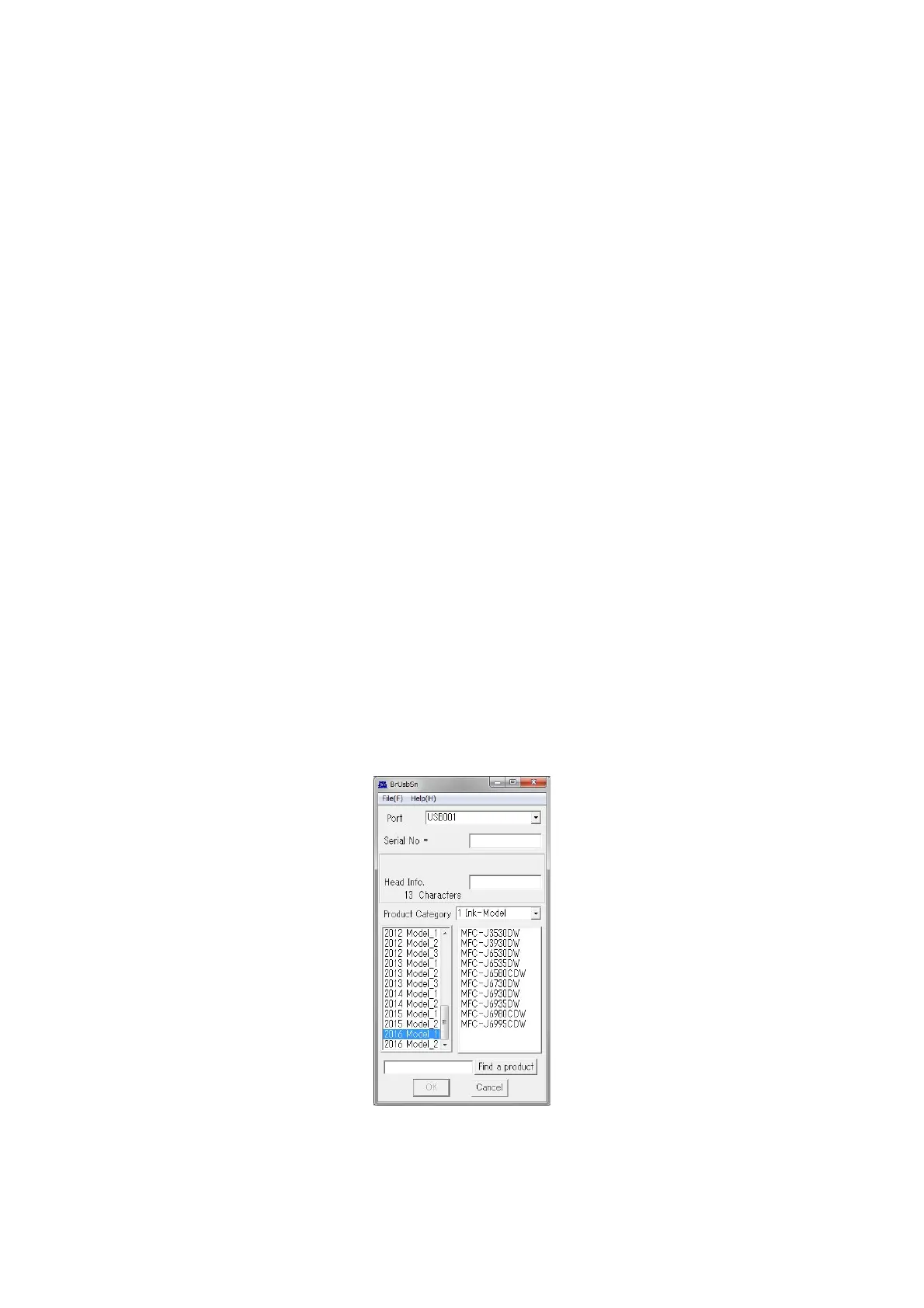

(5) On the PC, run the service setting tool (BrUsbSn.exe) to display the following
window.
(6) In Product Category, select 1. Ink-Model.
(7) Select 2016 Model_1.

Brother MFC-J6545DW Specifications

General

Type	all in one, fax
Color	white/gray, white
Touch Screen	yes
Display Size	3.7 inches
Tray Capacity	350
Output Tray Capacity	100
Automatic Document Feeder Capacity	50 sheets
Printing Method	color
Color Print Speed	20 pages per minute
Mono Print Speed	22 pages per minute
First Page Print Time	6 seconds
Print Resolution Mono	up to 4800 x 1200
Print Resolution Color	up to 4800 x 1200
Media Types	letter-size glossy inkjet paper; 4" x 6" glossy photo paper; letter-size multi-purpose paper
Two-Sided Printing	yes
Maximum Number of Pages Per Month	up to 30, 000
Reduction and Enlargement	yes
Photo Printing	yes
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Duplex Scan	no
Max Copies	999
Copier Resolution Mono	up to 4800 x 1200
Copier Resolution Color	up to 4800 x 1200
Fax Function	yes
Cartridges	lc3037bk, lc3037c, lc3037m, lc3037y, lc3039bk, lc3039c, lc3039m, lc3039y
Number Of Cartridges	4
Number of Ink Tanks	0
Internal Memory	yes
Memory Card	no
Network	wired, wireless
Connectivity	apple airprint, brother iprint&scan, ethernet, google cloud print, mopria print service, usb 2.0, wi-fi, wi-fi direct
Mobile Devices Connection	yes

Weight and Dimensions

Depth	22.6 inches
Height	12.2 inches
Width	22.6 inches
Net Weight	44.3 pounds
