Brother MFC-J6545DW User Manual

3-115
Confidential
9.44 Ink Absorber Box
(1) < Except 3rd tray model >
Turn the main body upright as shown in the figure.
< 3rd tray model >
When finishing step (2) of “9.49. LT Frame ASSY (T2 Paper Pull-in Roller L/R)”
and step (2) of “9.63. 3rd Tray Relay PCB”, turn the Lower tray unit upright as
shown in the figure.

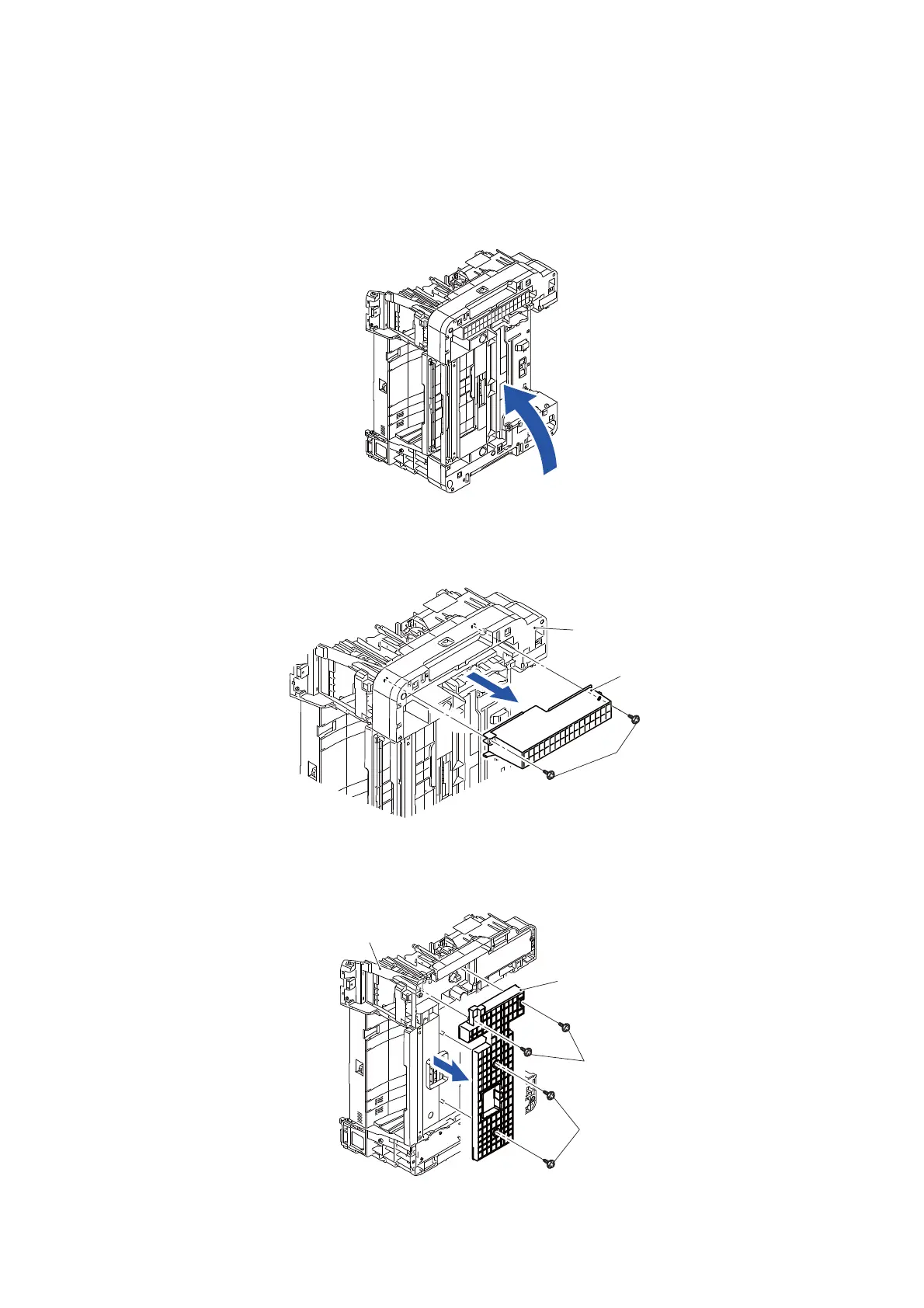

Fig. 3-142
(2) [Model with Lower tray]
Remove the two screws (TAPTITE CUP B M3x10) and remove the Ink absorber
box from the Main body.
Fig. 3-143
[Model without Lower tray]
Remove the four screws (TAPTITE CUP B M3x10) and remove the Ink absorber
box from the Main body.
Fig. 3-144
TAPTITE CUP B
Ink absorber box
Main body
M3x10
TAPTITE CUP B
Ink absorber box
Main body
M3x10
TAPTITE CUP B
M3x10
