Brother MFC-J6545DW User Manual

3-118
Confidential

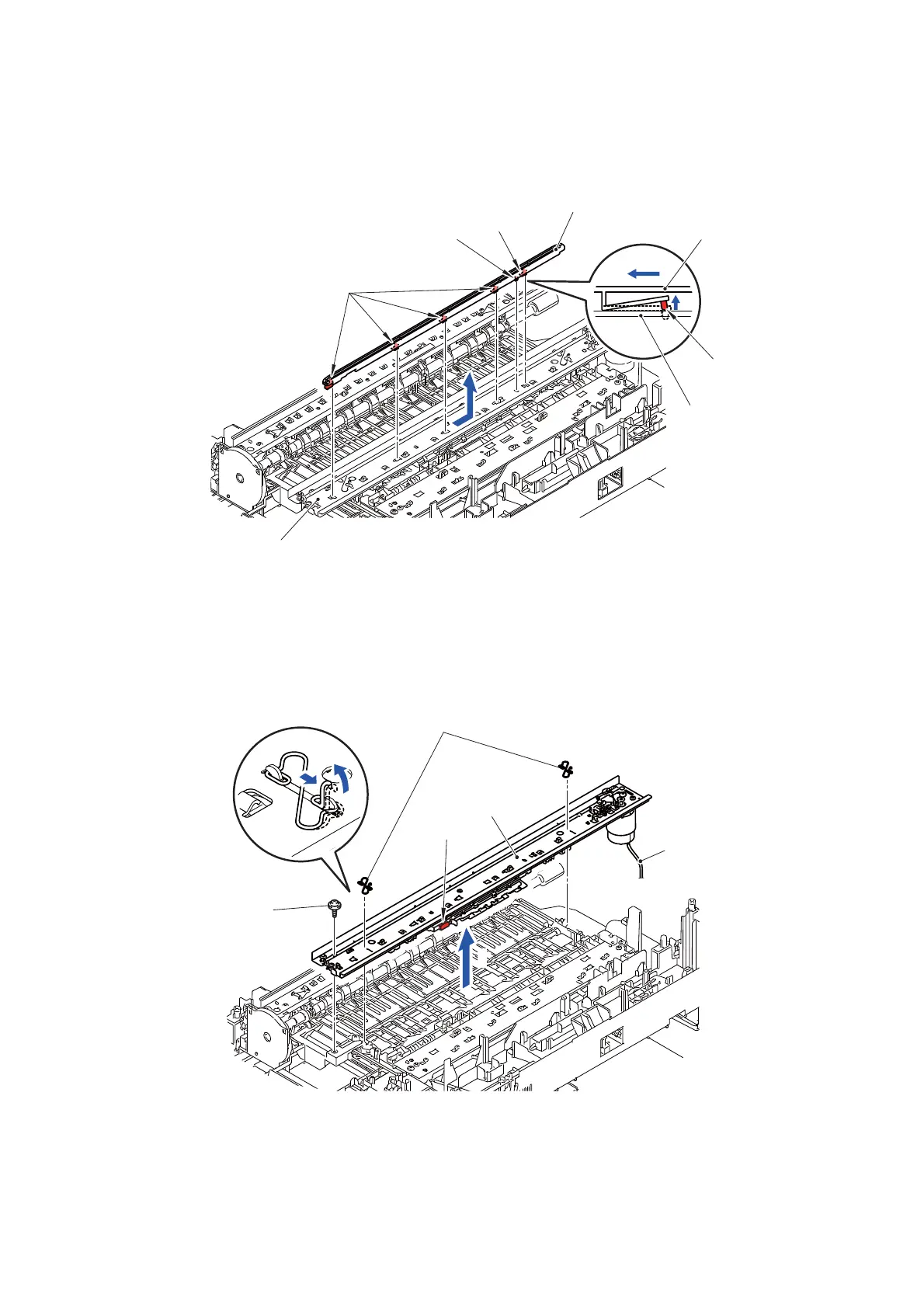

9.47 Carriage Motor
(1) Release the Boss and five Hooks and remove the Tube protector from the CR
frame ASSY.
Fig. 3-148
(2) Remove the ferrite core, and release the wiring of the Carriage motor harness.
(3) Remove the screw (TAPTITE CUP B M3x10) from the CR frame ASSY.
(4) Remove the two CR frame springs from the CR frame ASSY.
(5) Release the Hook and remove the CR frame ASSY from the Main body.
Fig. 3-149
Hooks
Hook
Boss
Tube protector
CR frame ASSY
Tube protector
Boss
CR frame ASSY
CR frame spring
CR frame ASSY
Hook
TAPTITE CUP B
M3x10
4
5
Carriage motor harness

Brother MFC-J6545DW Specifications

General

Type	all in one, fax
Color	white/gray, white
Touch Screen	yes
Display Size	3.7 inches
Tray Capacity	350
Output Tray Capacity	100
Automatic Document Feeder Capacity	50 sheets
Printing Method	color
Color Print Speed	20 pages per minute
Mono Print Speed	22 pages per minute
First Page Print Time	6 seconds
Print Resolution Mono	up to 4800 x 1200
Print Resolution Color	up to 4800 x 1200
Media Types	letter-size glossy inkjet paper; 4" x 6" glossy photo paper; letter-size multi-purpose paper
Two-Sided Printing	yes
Maximum Number of Pages Per Month	up to 30, 000
Reduction and Enlargement	yes
Photo Printing	yes
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Duplex Scan	no
Max Copies	999
Copier Resolution Mono	up to 4800 x 1200
Copier Resolution Color	up to 4800 x 1200
Fax Function	yes
Cartridges	lc3037bk, lc3037c, lc3037m, lc3037y, lc3039bk, lc3039c, lc3039m, lc3039y
Number Of Cartridges	4
Number of Ink Tanks	0
Internal Memory	yes
Memory Card	no
Network	wired, wireless
Connectivity	apple airprint, brother iprint&scan, ethernet, google cloud print, mopria print service, usb 2.0, wi-fi, wi-fi direct
Mobile Devices Connection	yes

Weight and Dimensions

Depth	22.6 inches
Height	12.2 inches
Width	22.6 inches
Net Weight	44.3 pounds
