Switch(config-ext-nacl)# exit
Next, create VLAN access map map2 so that traffic that matches the http access list is dropped and all other
IP traffic is forwarded.
Switch(config)# vlan access-map map2 10
Switch(config-access-map)# match ip address http
Switch(config-access-map)# action drop
Switch(config-access-map)# exit
Switch(config)# ip access-list extended match_all
Switch(config-ext-nacl)# permit ip any any
Switch(config-ext-nacl)# exit
Switch(config)# vlan access-map map2 20
Switch(config-access-map)# match ip address match_all
Switch(config-access-map)# action forward
Then, apply VLAN access map map2 to VLAN 1.
Switch(config)# vlan filter map2 vlan 1
Example: Restricting Access to a Server on Another VLAN
You can restrict access to a server on another VLAN. For example, server 10.1.1.100 in VLAN 10 needs to
have access denied to these hosts:
•
Hosts in subnet 10.1.2.0/8 in VLAN 20 should not have access.
•
Hosts 10.1.1.4 and 10.1.1.8 in VLAN 10 should not have access.

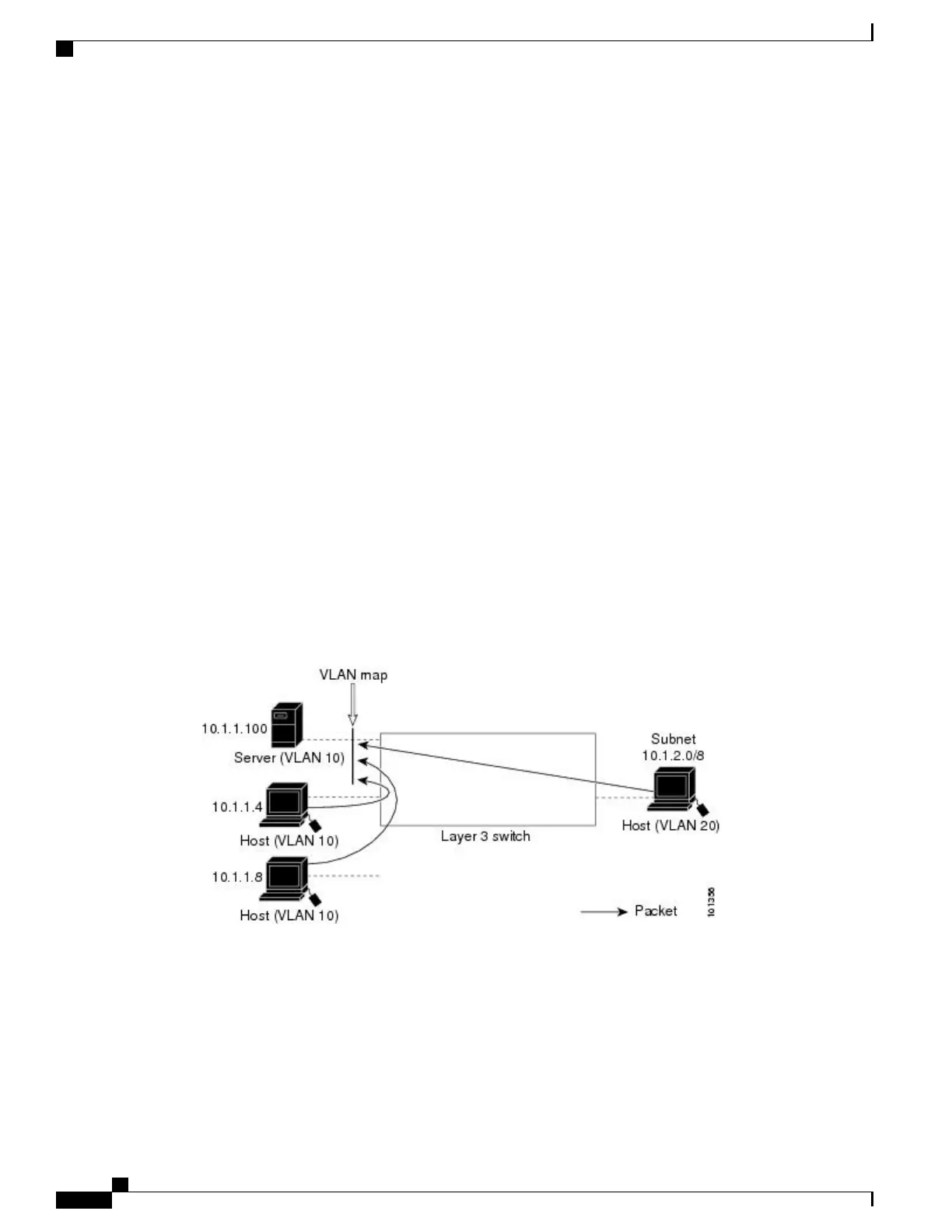

Figure 8: Restricting Access to a Server on Another VLAN
Example: Denying Access to a Server on Another VLAN
This example shows how to deny access to a server on another VLAN by creating the VLAN map SERVER
1 that denies access to hosts in subnet 10.1.2.0.8, host 10.1.1.4, and host 10.1.1.8 and permits other IP traffic.
The final step is to apply the map SERVER1 to VLAN 10.
Catalyst 2960-X Switch Security Configuration Guide, Cisco IOS Release 15.0(2)EX
190 OL-29048-01
Configuring IPv4 ACLs
Configuration Examples for Using VLAN Maps in Your Network
