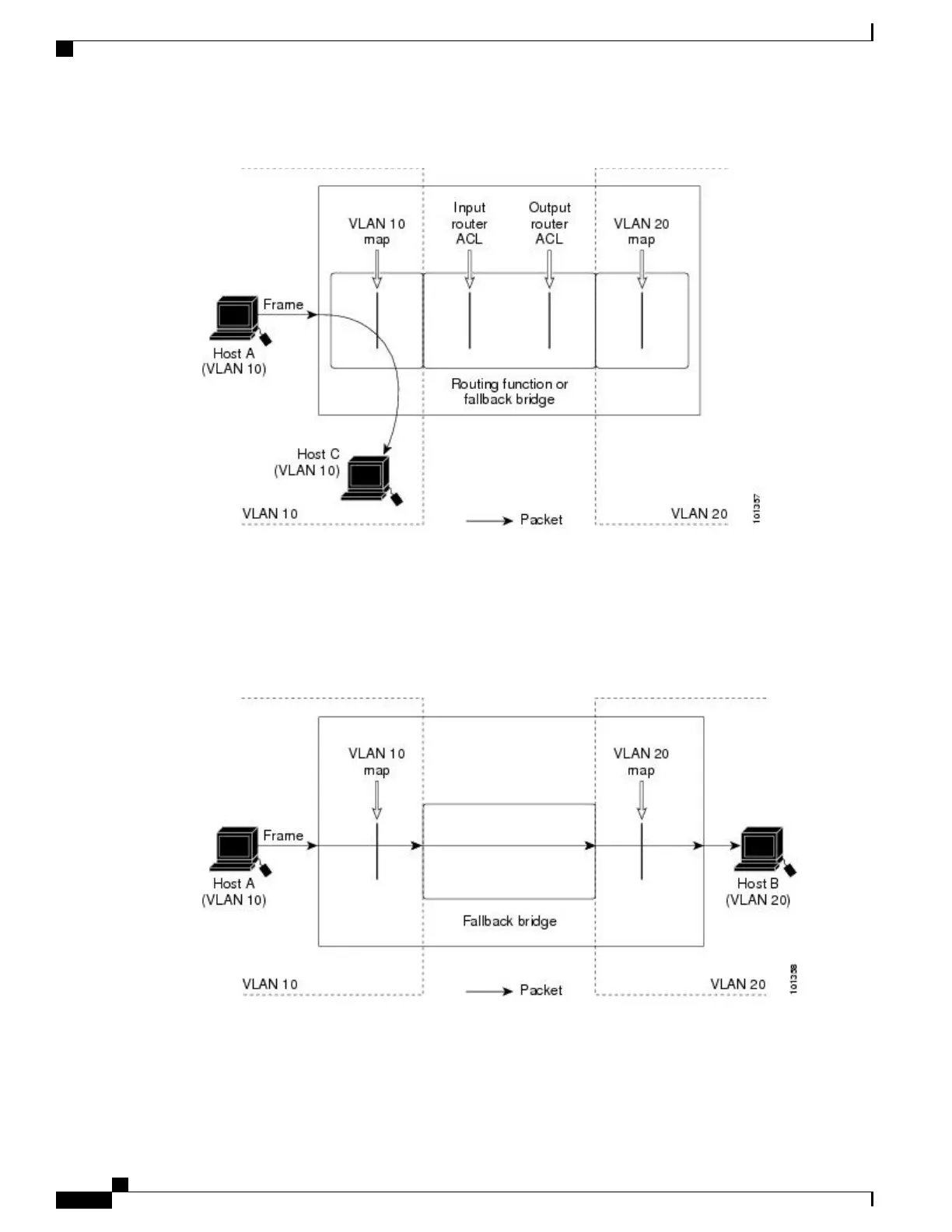

Figure 9: Applying ACLs on Switched Packets
Example: ACLs and Bridged Packets
This example shows how an ACL is applied on fallback-bridged packets. For bridged packets, only Layer 2
ACLs are applied to the input VLAN. Only non-IP, non-ARP packets can be fallback-bridged.
Figure 10: Applying ACLs on Bridged Packets
Catalyst 2960-X Switch Security Configuration Guide, Cisco IOS Release 15.0(2)EX
192 OL-29048-01
Configuring IPv4 ACLs
Configuration Examples of Router ACLs and VLAN Maps Applied to VLANs
