Working with Removable Drives and Device Bays 5-7
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Writer: Beth Zanca Saved by: Compaq Customer Saved date: 04/26/00 4:26 PM
Part Number: 170045-002 File name: Ch05

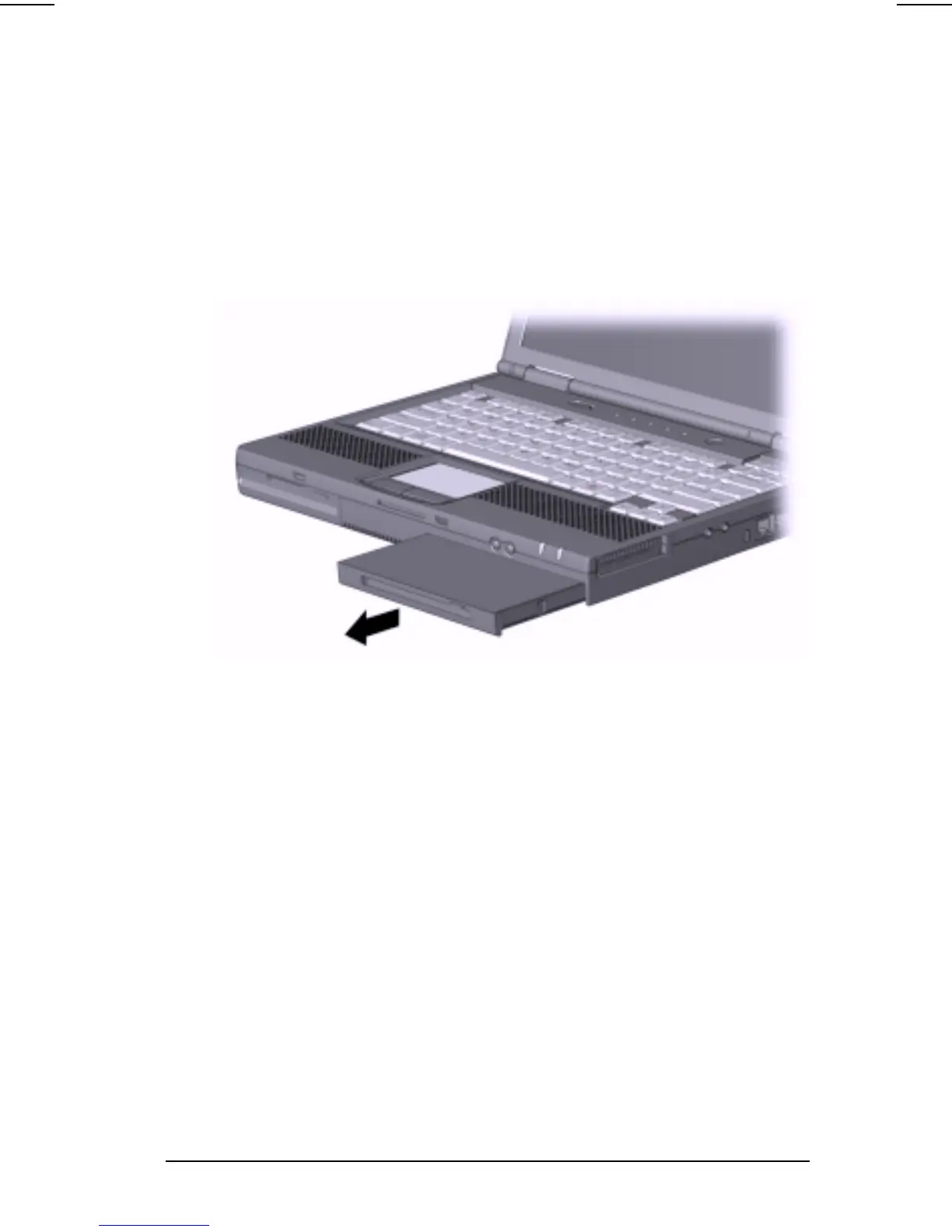

Removing a MultiBay Device
1. If your device is not hot-pluggable, turn off the computer.
2. Press the MultiBay release lever to release the device.
IMPORTANT: When removing a second hard drive, first remove
the adapter from the MultiBay, then remove the hard drive
from the adapter.
3. Remove the device.
Using a Second Hard Drive
The computer is designed to use up to two hard drives: one in the
computer and one in the computer MultiBay. Refer to the section
“Changing the Startup Sequence with MultiBoot” in this chapter.
