Dahua XVR5216A User Manual

201

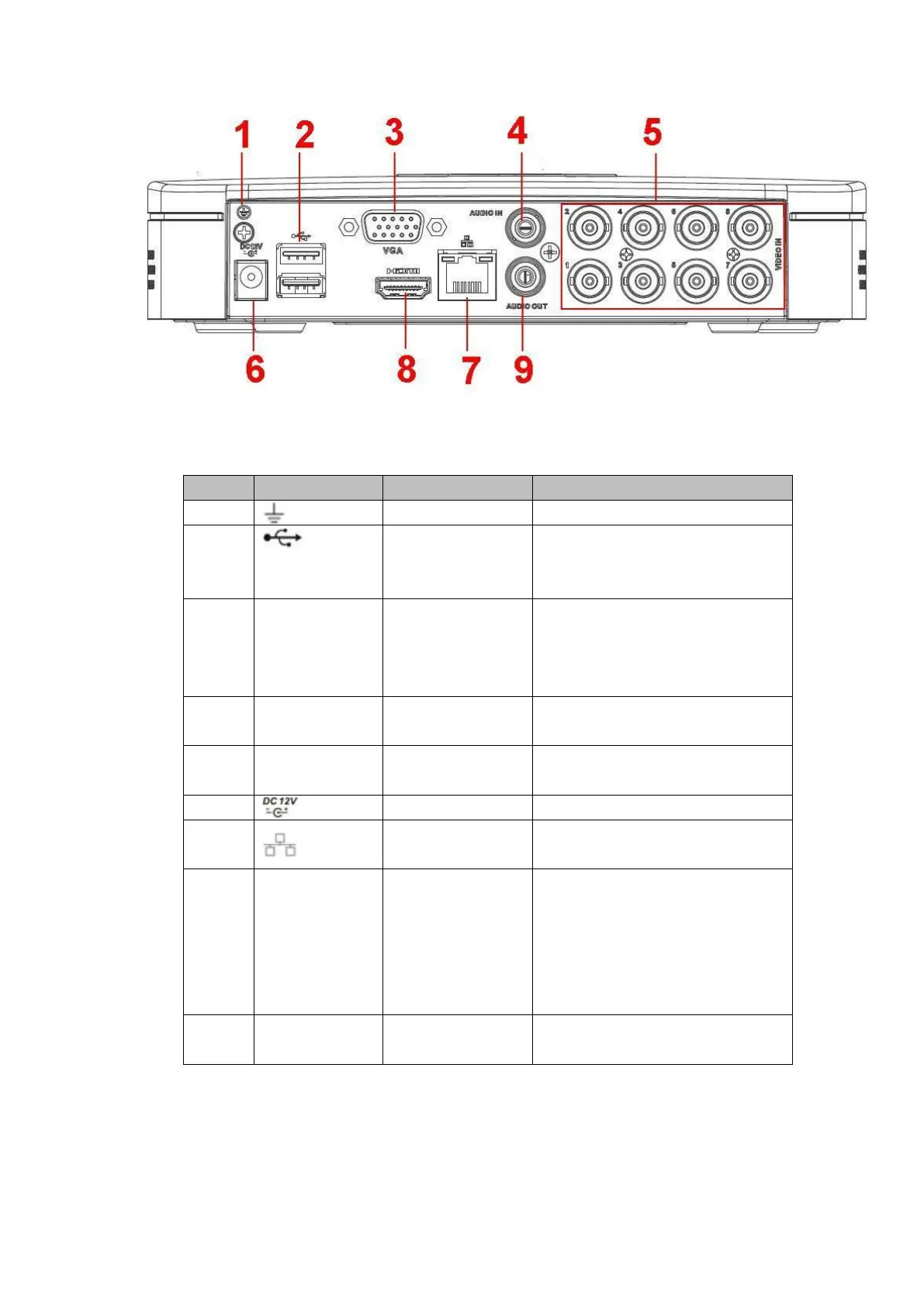

Figure 2- 18
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
GND
Ground end
2
USB2.0 port
Connect to USB storage device,
mouse, burning DVD-ROM and
etc.
3
VGA
VGA video output
port
VGA video output port. Output
analog video signal. Can connect
to the monitor to view ananlog
video output.
4
AUDIO IN
Audio input port
Connect to audio input device
such as speaker.
5
VIDEO IN
Video input port
Connect to analog camera, video
input signal.
6
Power input port
Input 12V DC.
7
Network port
100M Ethernet port
8
HDMI
High definition
media interface
High definition audio and video
signal output port. It transmits
uncompressed high definition
video and multiple-channel data
to the HDMI port of the display
device.
9
AUDIO OUT
Audio output port
Connect to video output device
such as sound box.
2.2.6 HCVR7104C-S2 Series
The HCVR7104C-S2 series rear panel is shown as below. See Figure 2- 19.
