Power input port
Input 12V DC.
2.2.8 HCVR5104H/HCVR5108H Series

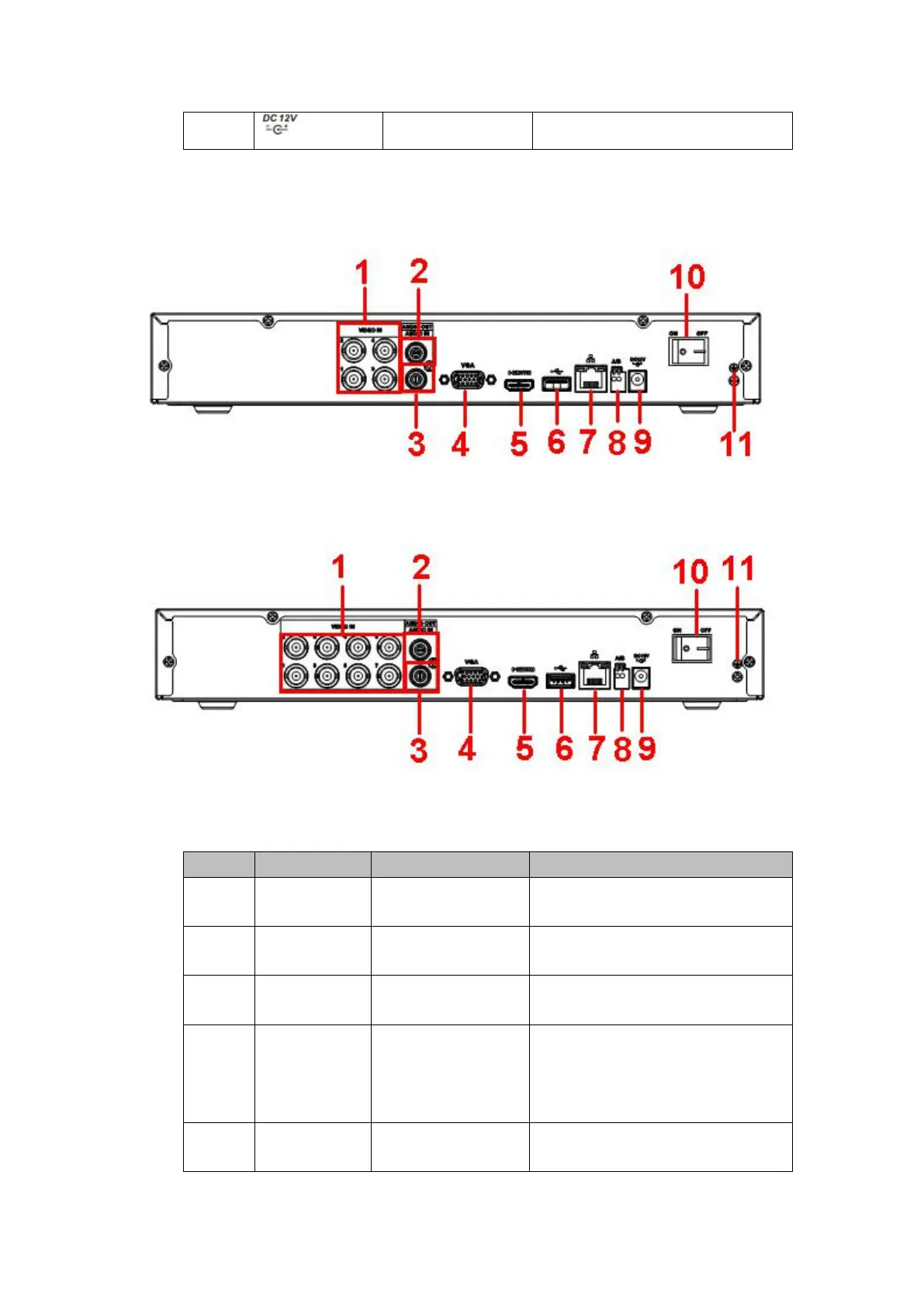

The HCVR5104H series rear panel is shown as below. See Figure 2- 21.
Figure 2- 21
The HCVR5108H series rear panel is shown as below. See Figure 2- 22.
Figure 2- 22
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
VIDEO IN
Video input port
Connect to analog camera, video
input signal.
2
AUDIO OUT
Audio output port
Connect to video output device
such as sound box.
3
AUDIO IN
Audio input port
Connect to audio input device
such as speaker.
4
VGA
VGA video output
port
VGA video output port. Output
analog video signal. Can connect
to the monitor to view ananlog
video output.
5
HDMI
High definition
media interface
High definition audio and video
signal output port. It transmits
