Dahua XVR5216A User Manual

252
SN
Icon
Name
Note
connected HDD.
15
USB2.0 port
USB2.0 port. Connect to
mouse, USB storage device,
USB burner and etc.
16
GND
GND
2.2.34 HCVR71XXH-4M Series

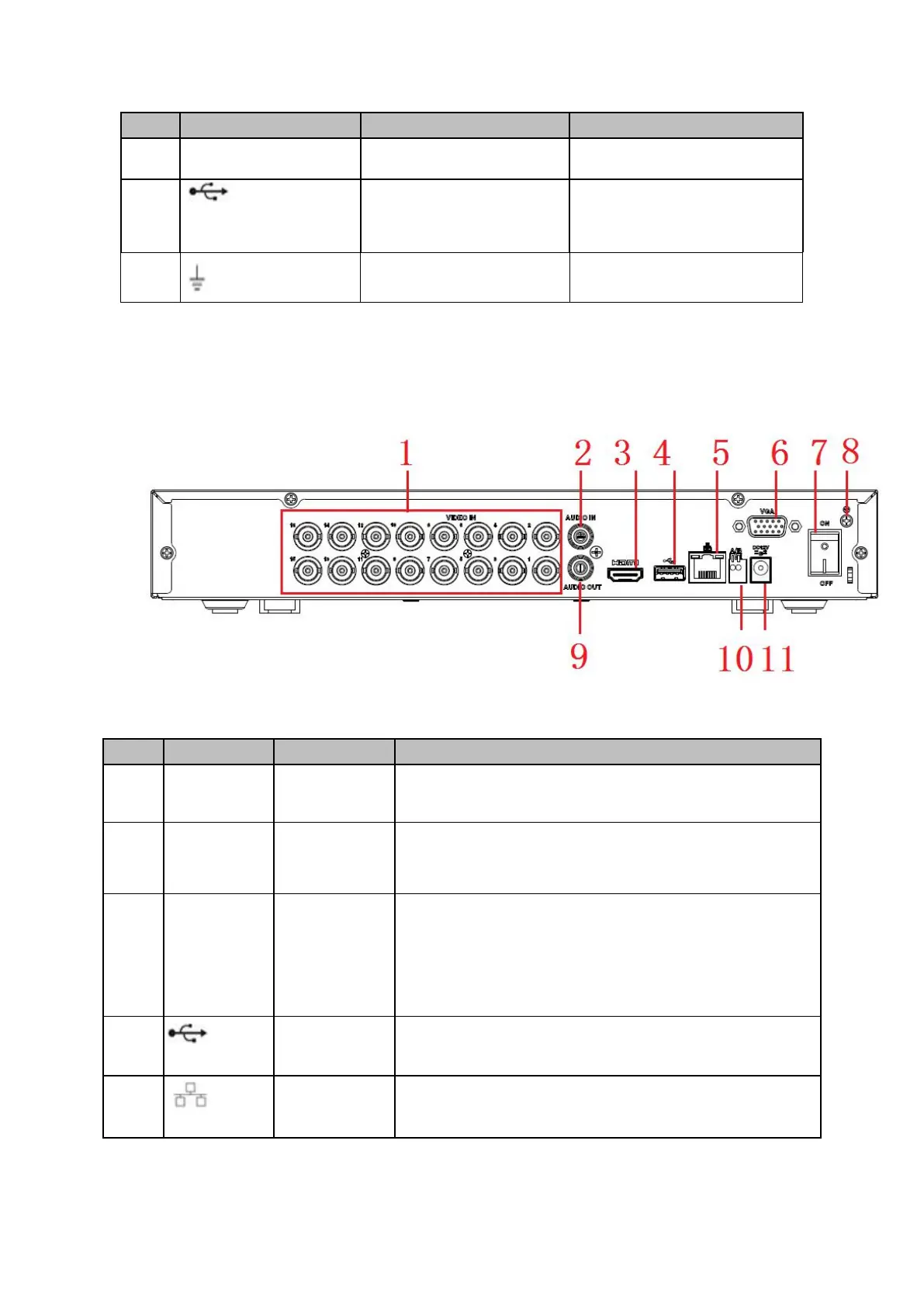

The rear panel is shown as in Figure 2- 82 .
The following figure is based on the HCVR7116H-4M series product.
Figure 2- 82
Please refer to the following sheet for detailed information.
SN
Icon
Name
Function
1
VIDEO IN
Video input
port
Connect to analog camera, video input signal.
2
AUDIO IN
Audio input
port
Connect to microphone and etc to input signal.
3
HDMI
High definition
media
interface
High definition audio and video signal output port. It
transmits the same video signal as that of the VGA/TV or
different video signal from that of the VGA/TV（support
customized setup）.
Support mouse operation.
4
USB3.0 port
Connect to mouse, USB storage media, USB-burner and
etc.
5
Network port
1000M Ethernet port
