Dahua XVR5216A User Manual

207
7
Power input port
Input 12V DC.
8
A
RS485（ RS-485）
communication port
RS485_A port. It is the cable A.
You can connect to the control
devices such as speed dome
PTZ.
B
RS485_B.It is the cable B. You
can connect to the control devices
such as speed dome PTZ.
9
Network port
100M Ethernet port
10
HDMI
High definition
media interface
High definition audio and video
signal output port. It transmits
uncompressed high definition
video and multiple-channel data
to the HDMI port of the display
device.
11
AUDIO OUT
Audio output port
Connect to video output device
such as sound box.
2.2.10 HCVR5104HC/HCVR5108HC Series

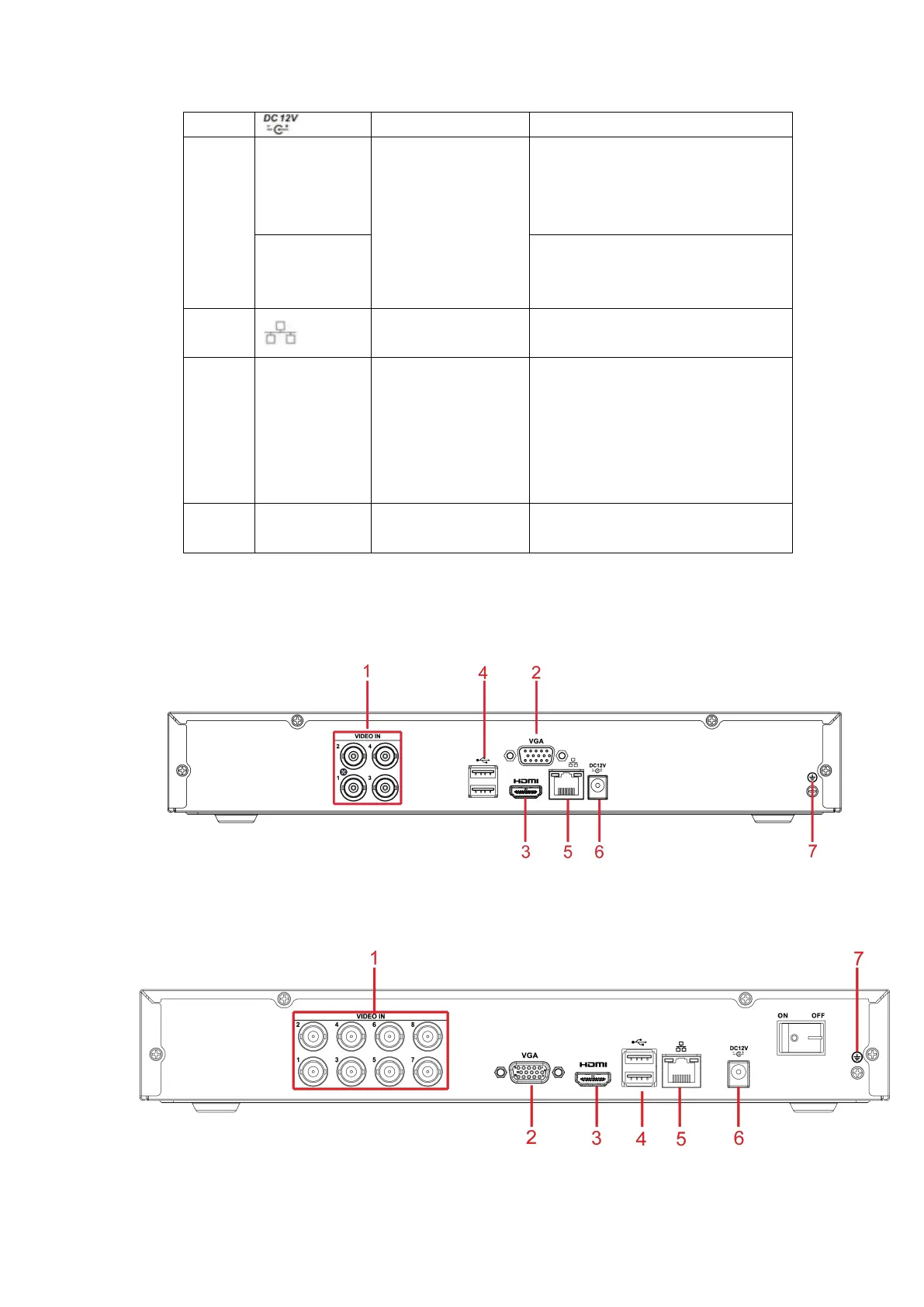

The HCVR5104HC series rear panel is shown as below. See Figure 2- 26.
Figure 2- 26
The HCVR5108HC series rear panel is shown as below. See Figure 2- 27.
Figure 2- 27
