Dahua XVR5216A User Manual

262
SN
Icon
Name
Note
11
HDMI1
High Definition
Media Interface 1
High definition audio and video
signal output port. It outputs the
same video source as VGA/TV.
Support mouse operation and
control.
12
HDMI2
High Definition
Media Interface 2
High definition audio and video
signal output port. Support
multiple-window video matrix
output. Support tour function.
13
eSATA
eSATA port
External SATA port. It can connect
to the device of the SATA port.
Please make sure there is power
supplying when there is peripheral
connected HDD.
14
USB port
Connect to USB storage device,
mouse, burning DVD-ROM and etc.
15
RS-232
RS232 debug COM.
It is for general COM debug to
configure IP address or transfer
transparent COM data.
16
Network port
1000Mbps Ethernet port
17
VIDEO IN
Video input port
Connect to analog camera, video
input signal.
2.2.37 XVR58XXS/ XVR78XXS Series

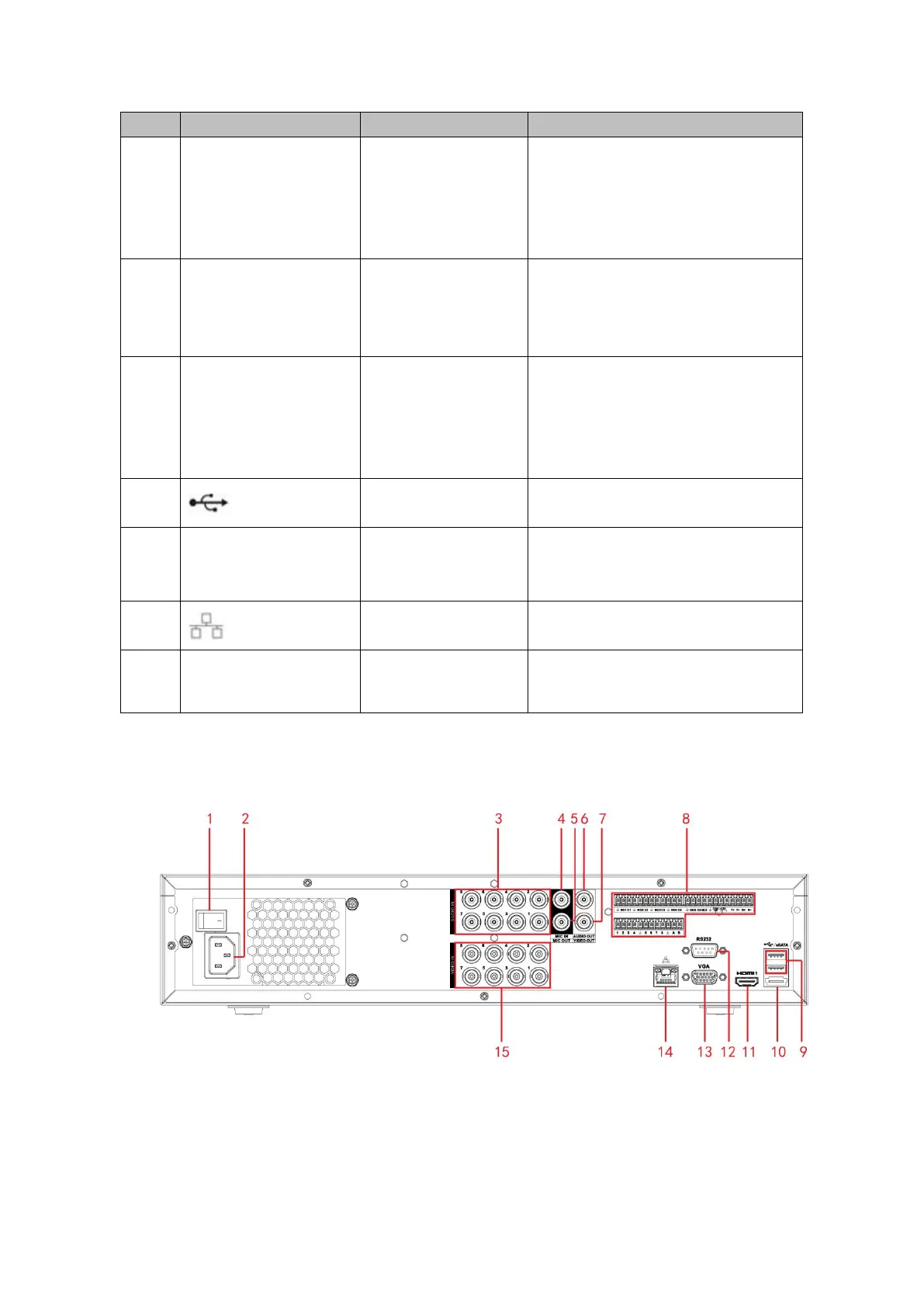

The XVR5808S rear panel is shown as below. See Figure 2- 87.
Figure 2- 87
The XVR7808S/XVR7816S rear panel is shown as below. See Figure 2- 88.
