Dahua XVR5216A User Manual

248

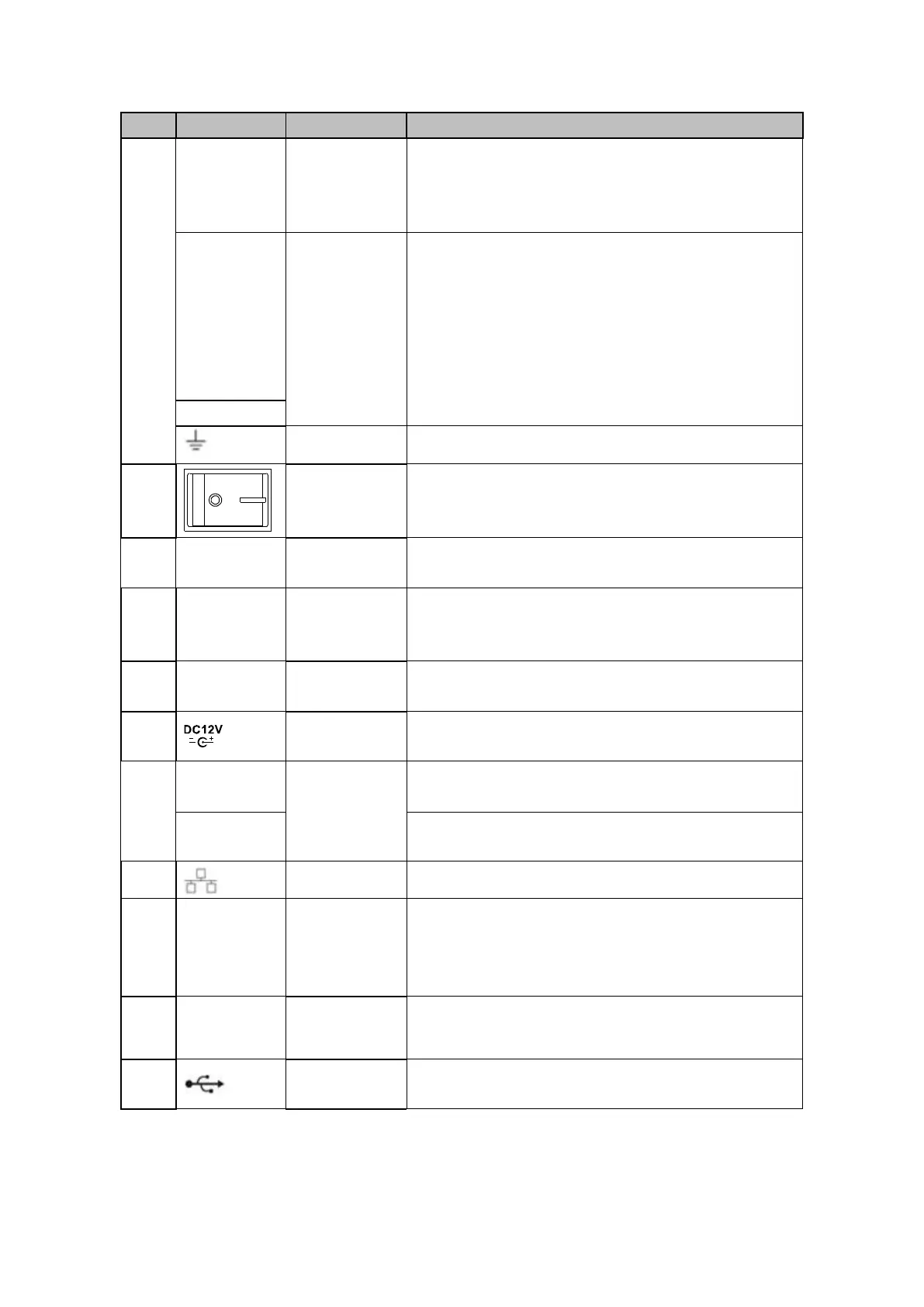

SN
Icon
Name
Note
DVR have the same ground.
NO1～NO3
Alarm output
port 1～3
 3 groups of alarm output ports. (Group 1:port
NO1～C1,Group 2:port NO2～C2,Group 3:port
NO3～ C3 ） ).Output alarm signal to the alarm
device. Please make sure there is power to the
external alarm device.
 NO:Normal open alarm output port.
 C:Alarm output public end.
C1～C3
GND
Alarm input ground port.
4
Power switch
Power on/off button.
5
RS-232
RS-232
debug COM.
It is for general COM debug to configure IP address
or transfer transparent COM data.
6
VGA
VGA video
output
port
VGA video output port. Output analog video signal.
Can connect to the monitor to view ananlog video
output.
7
AUDIO IN
Audio input
port
Connect to audio input device such as speaker.
8
Power input
port
Input 12V/5A DC.
9
A
RS-485
communicatio
n port
RS485_A port. It is the cable A. You can connect to
the control devices such as speed dome PTZ.
B
RS485_B.It is the cable B. You can connect to the
control devices such as speed dome PTZ.
10
Network port
1000M Ethernet port
11
HDMI
High
Definition
Media
Interface
High definition audio and video signal output port. It
transmits uncompressed high definition video and
multiple-channel data to the HDMI port of the display
device.
12
AUDIO OUT
Audio output
port
Audio output port. It is to output the analog audio
signal to the devices such as the sound box.
13
USB2.0 port
USB2.0 port. Connect to mouse, USB storage
device, USB burner and etc.
2.2.33 HCVR58XXS-V2/HCVR48XXS-S2 Series
The rear panel is shown as in Figure 2- 80.
