Dahua XVR5216A User Manual

247
SN
Icon
Name
Note
13
eSATA
eSATA port
External SATA port. It can
connect to the device of the
SATA port. Please jump the
HDD when there is peripheral
connected HDD.
14
USB2.0 port
USB2.0 port. Connect to
mouse, USB storage device,
USB burner and etc.
15
Power socket
Power socket
16
GND
GND
2.2.32 HCVR42XXL-S2 Series

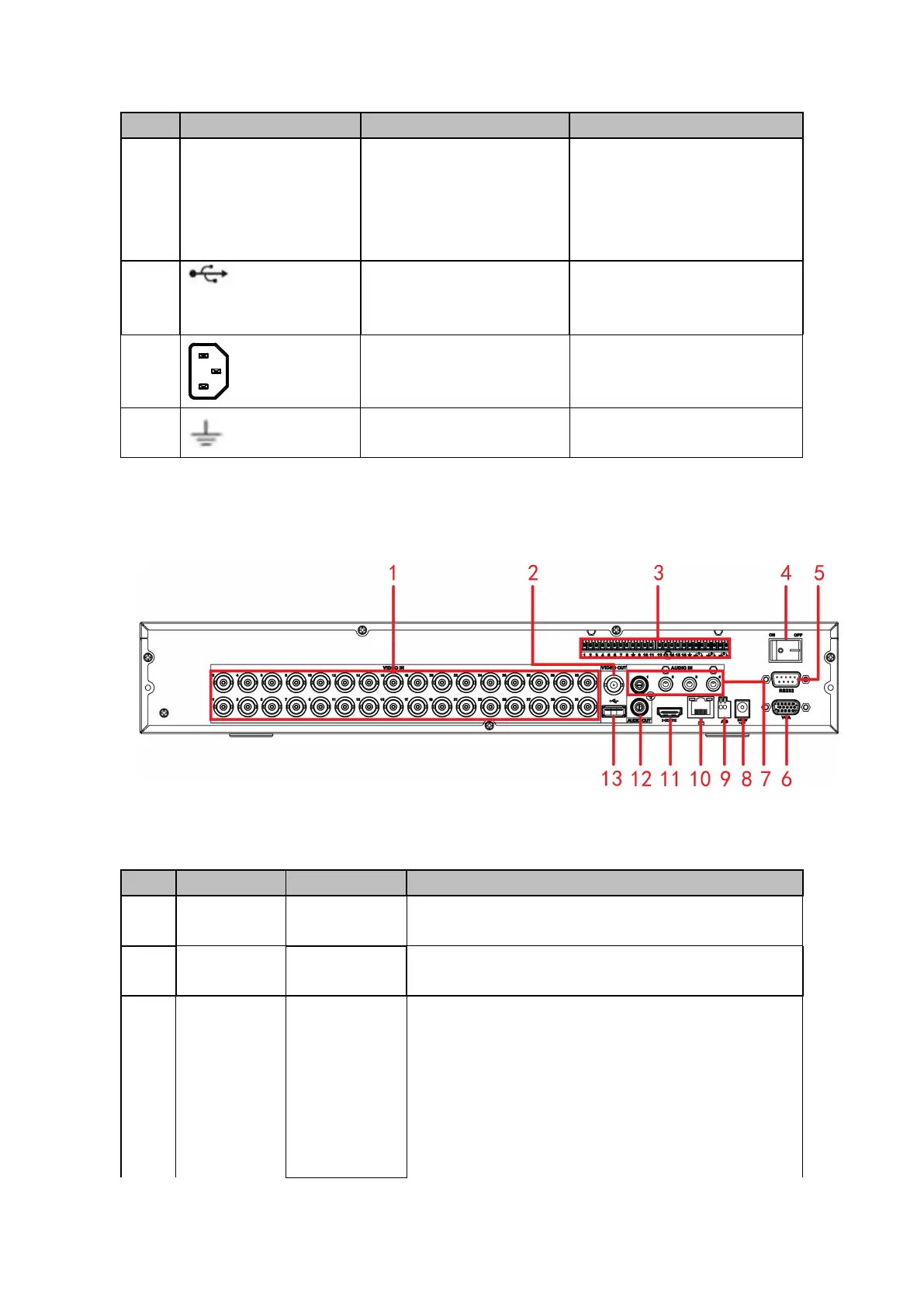

The rear panel is shown as in Figure 2- 79
The following figure is based on the HCVR4232L-V2 series product.
Figure 2- 79
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
VIDEO IN
Video input
port
Connect to analog camera, video input signal.
2
VIDEO OUT
Video output
port
Connect to output devices such as TV.
3
1～16
Alarm input
port 1～16

There are four groups. The first group is from
port 1 to port 4, the second group is from port 5
to port 8, the third group is from 9 to 12, and the
fourth group is from 13 to 16. They are to
receive the signal from the external alarm
source. There are two types; NO (normal
open)/NC (normal close).
 When your alarm input device is using external
power, please make sure the device and the
