2.2.27 HCVR4224/HCVR4232AN-S2 Series

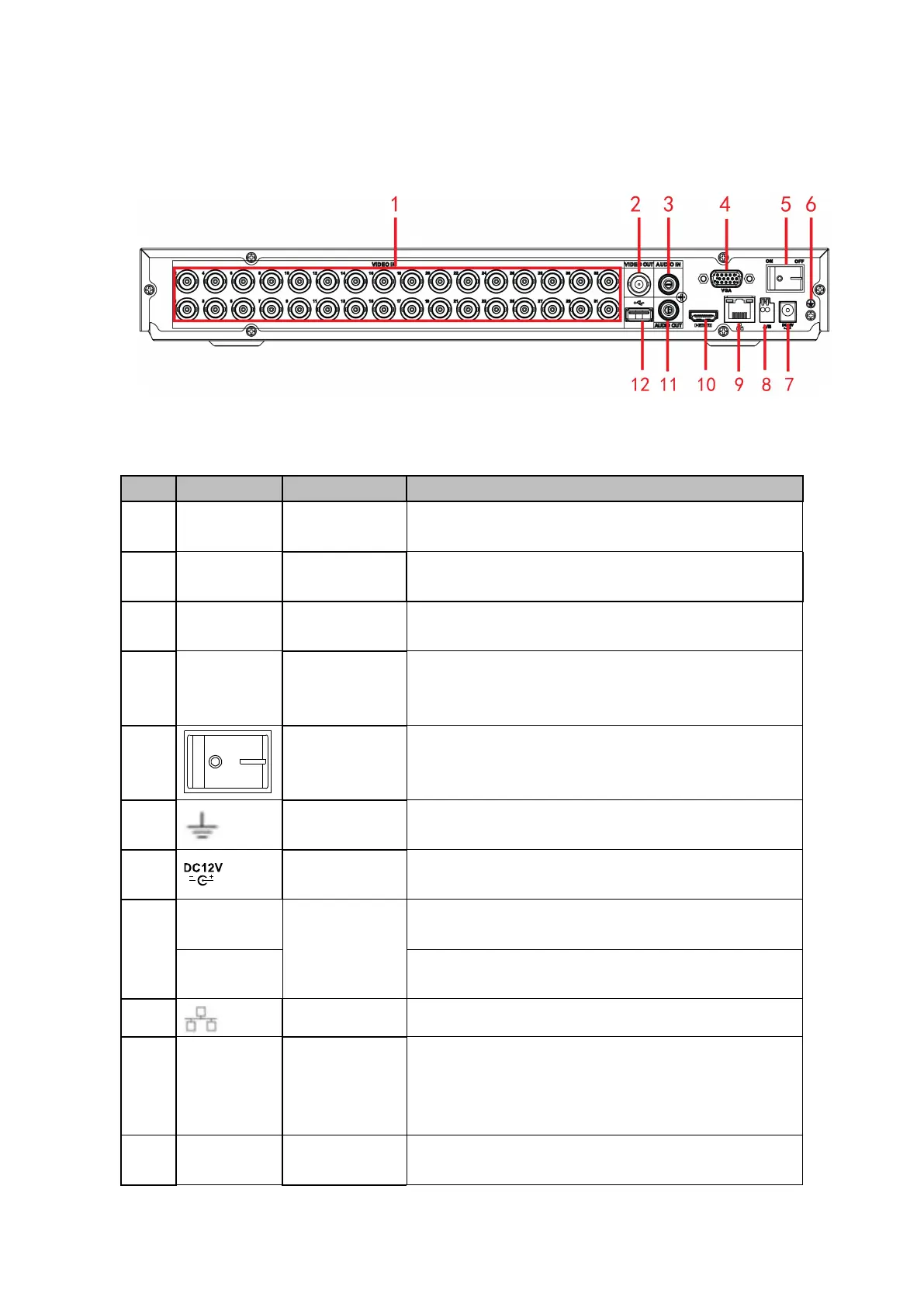

The rear panel is shown as below. See Figure 2-67.
The following figure is based on the HCVR4232AN-V2 series product.
Figure 2- 67
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
VIDEO IN
Video input
port
Connect to analog camera, video input signal.
2
VIDEO OUT
Video output
port
Connect to output devices such as TV.
3
AUDIO IN
Audio input
port
Connect to audio input device such as speaker.
4
VGA
VGA video
output
port
VGA video output port. Output analog video signal.
Can connect to the monitor to view ananlog video
output.
5
Power switch
Power on/off button.
6
GND
Alarm input ground port.
7
Power input
port
Input 12V/5A DC.
8
A
RS485
（ RS-485 ）
communicatio
n port
RS485_A port. It is the cable A. You can connect to
the control devices such as speed dome PTZ.
B
RS485_B.It is the cable B. You can connect to the
control devices such as speed dome PTZ.
9
Network port
1000M Ethernet port
10
HDMI
High Definition
Media
Interface
High definition audio and video signal output port. It
transmits uncompressed high definition video and
multiple-channel data to the HDMI port of the display
device.
11
AUDIO
OUT
Audio output
port
Connect to video output device such as sound box.
