Dahua XVR5216A User Manual

270

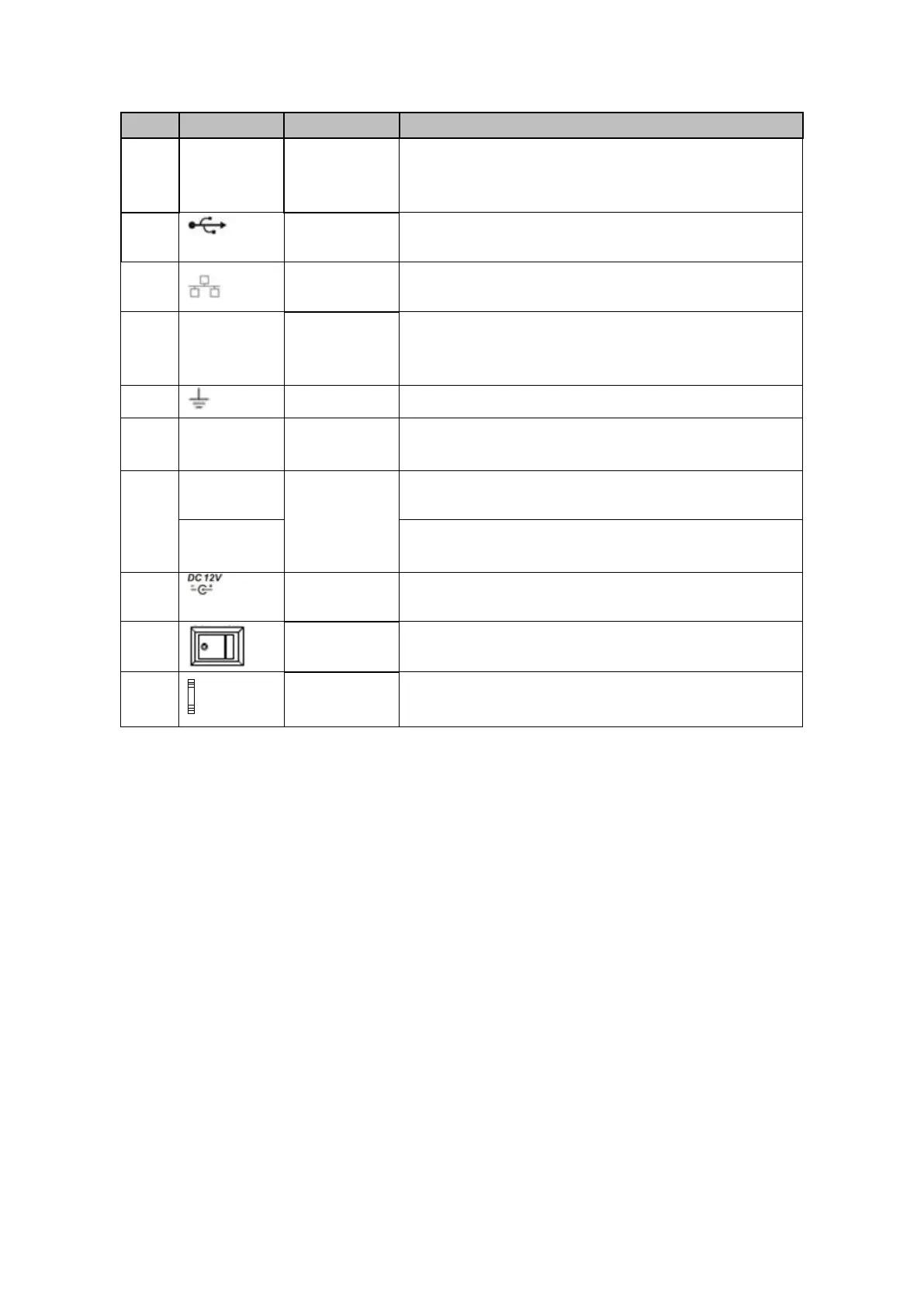

SN
Icon
Name
Note
Definition
Media
Interface
transmits uncompressed high definition video and
multiple-channel data to the HDMI port of the display
device.
4
USB port
Connect to USB storage device, mouse, burning
DVD-ROM and etc.
5
Network port
1000M Ethernet port
6
VGA
VGA video
output
port
VGA video output port. Output analog video signal.
Can connect to the monitor to view ananlog video
output.
7
GND
Ground end
8
AUDIO
OUT
Audio output
port
Connect to video output device such as sound box.
9
A
RS485
(RS-485)
communicati
on port
RS485_A port. It is the cable A. You can connect to
the control devices such as speed dome PTZ.
B
RS485_B.It is the cable B. You can connect to the
control devices such as speed dome PTZ.
10
Power input
port
Input 12V DC.
11
Power switch
Power on/off button.
12
Power cable
fastener
Use clamp to secure the power cable on the device in
case there is any loss.
When connect the Ethernet port, please use crossover cable to connect the PC and use
the straight cable to connect to the switch or router.
2.3 Connection Sample
2.3.1 Smart Box Series
Please refer to Figure 2- 79 for connection sample.
