Dahua XVR5216A User Manual

285
cover and side panel. Remove
the cover.
(Turn just three rounds).
with the four holes in the bottom.
④Turn the device upside down and
then turn the screws in firmly.
⑤Connect the HDD cable and
power cable.
.
⑥Put the cover in accordance
with the clip and then place the
upper cover back. Secure the
screws in the rear panel and the
side panel.

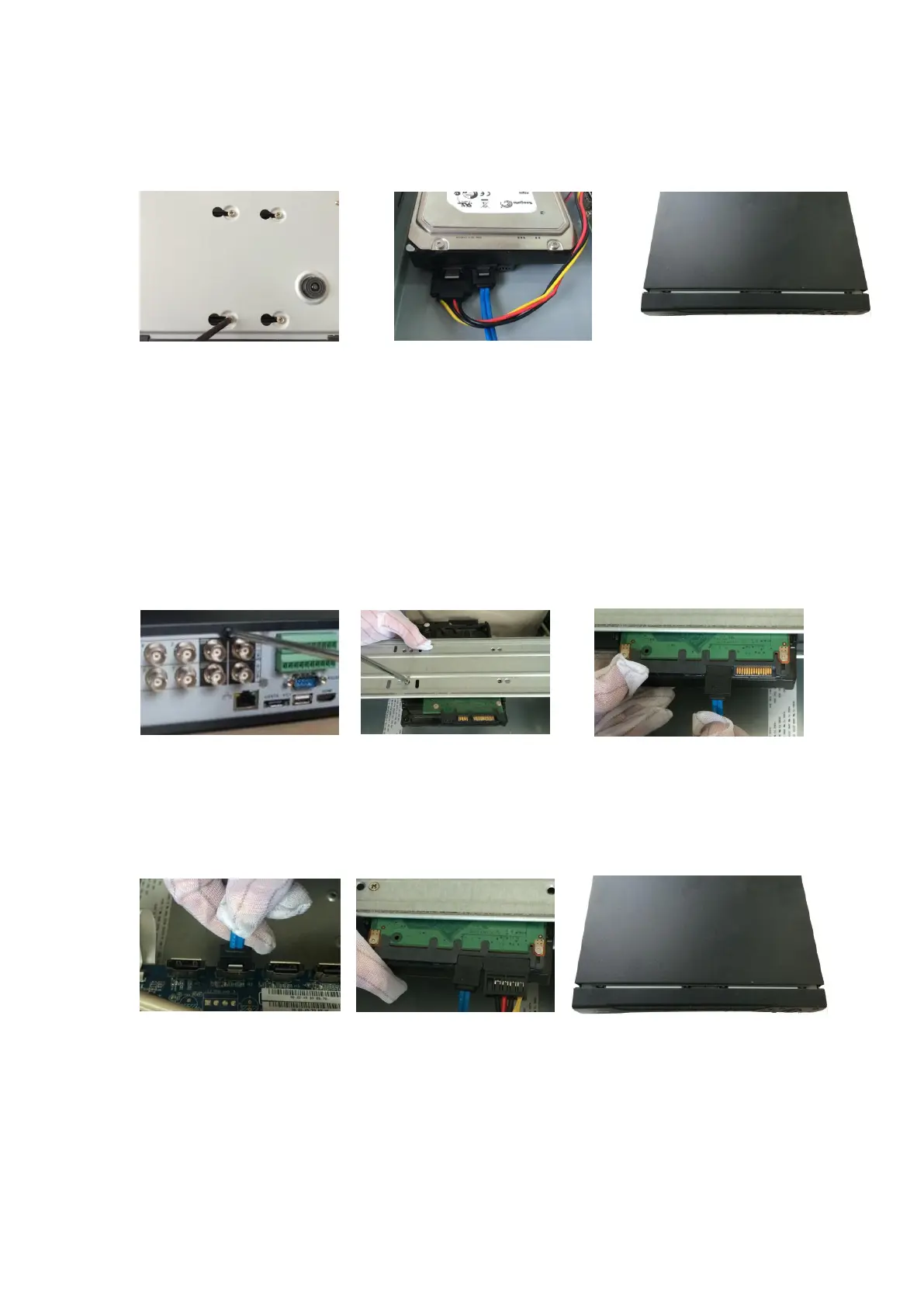

3.3.5 The 1.5U Series
The 1.5U series includes HCVR52XXL-V2/
HCVR54XXL-V2/HCVR44L-S2/XVR54XX-L/XVR74XX-L and etc.
This series DVR max has four SATA HDDs. Please use HDD of 7200rpm or higher.
○
1
Loosen the screws of the
upper cover. Remove the
cover.
○
2
Line up the HDD to the
four holes of the HDD
bracket. Use four screws to
fix HDD.
○
3
Connect the one end of the HDD
cable to the HDD.
.
○
4
Connect the other end of
the HDD cable to the
mainboard.
○
5
Connect the power cable
to the HDD.
○
6
Put the cover back and fix the
screws to secure firmly.
3.3.6 The 2U Series
The 2U series includes HCVR58XXS-V2/HCVR48XXS-V2/XVR54XX-S/XVR74XX-S and
