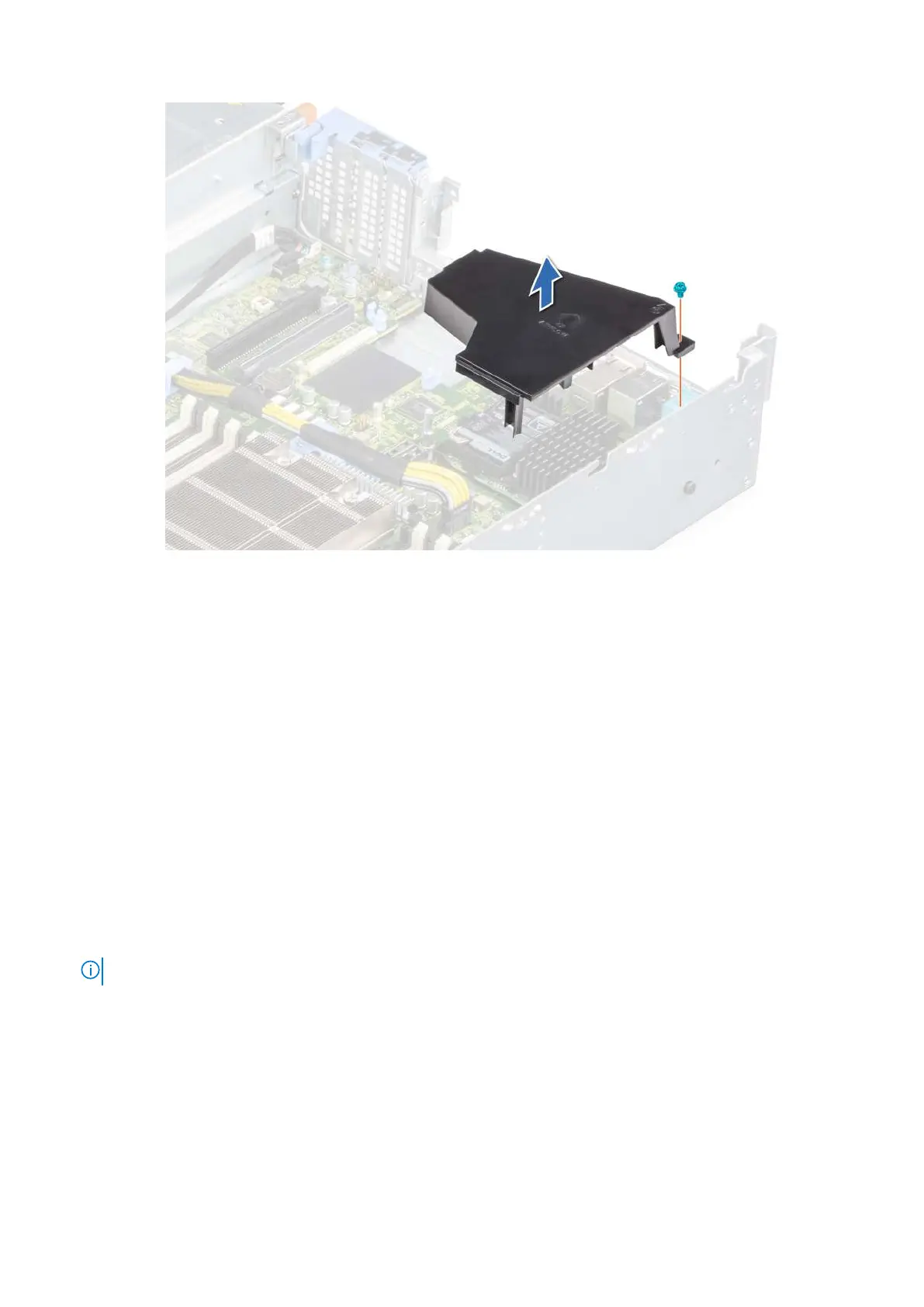

Figure 106. Removing the mini PERC card air shroud
2. Remove the air shroud from the system.
Next steps
1. Replace the PERC card air shroud.
Installing the mini PERC card air shroud
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions on page 26.
2. Follow the procedure listed in the Before working inside your system on page 27.
3. Remove the air shroud.
4. If applicable, remove the rear drive cage.
5. If applicable, remove the expansion card riser.
Steps
1. Align the mini PERC card air shroud with the screw hole on the system board.
NOTE: Route the cable properly to prevent the cable from being pinched or crimped.
2. Lower the air shroud until it is firmly seated.
3. Tighten the screw to secure the mini PERC card air shroud to the system board.
100
Installing and removing system components
