Dell EMC PowerEdge R7515 Service Manual

Cooling fan
Removing a cooling fan
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions on page 26.
2. Follow the procedure listed in the Before working inside your system on page 27.
3. Remove the air shroud.
Steps
1. Disconnect the cooling fan cable from the system board connector.
2. Remove the cable from the cable retention tabs.
NOTE: Observe the routing of the cable as you remove it from the system.
3. Press the release tab, and lift the cooling fan from the cooling fan cage.
NOTE: The numbers on the image does not depict the exact steps. The numbers are just for representation of
sequence.

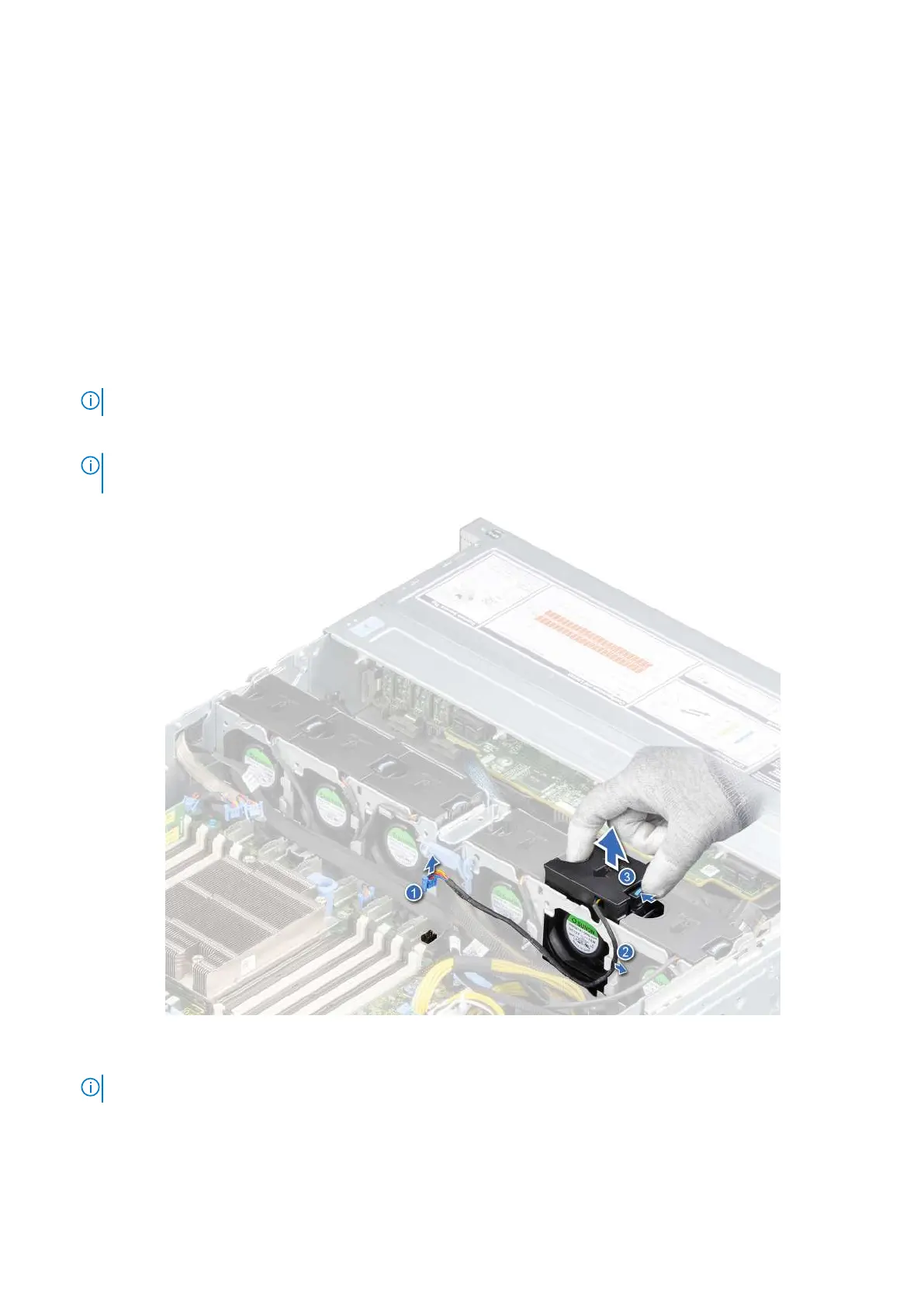

Figure 27. Removing a fan
NOTE: Ensure to disconnect the cooling fan 1 cable from the connector on the power interposer board.
Installing and removing system components 37

Dell EMC PowerEdge R7515 Specifications

General

Maximum Processors	1
Cores per Processor	Up to 64
Processor	AMD EPYC 7002 Series
Memory Type	DDR4
Memory Slots	16 DIMM slots
Storage	Up to 12 x 3.5" SAS/SATA or up to 24 x 2.5" SAS/SATA/NVMe drives
RAID Support	PERC H345, H745
Network Options	1GbE, 10GbE, 25GbE
Network Controller	1 x 1GbE LOM
Power Supply	750W, 1100W
Form Factor	2U Rack
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
