Table 20. Riser configurations: Riser 1B – CPU
Card type Slot priority Maximum number of cards
PERC 10 : External adapter (H840, LP) 5, 4 2
HBA : External adapter (LP) 5, 4 2
Internal storage (BOSS, LP) 5, 4 1
PERC 9 : Mini mono (H730P/H330) Integrated slot 1
PERC 10 : Mini mono (H740P) Integrated slot 1
HBA : Mini mono (HBA330) Integrated slot 1
LOM riser ( 2x1G)/(2x10G)/(2x25G) 1 1
Removing the expansion card riser
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions on page 26.
2. Follow the procedure listed in the Before working inside your system on page 27.
3. Remove the air shroud.
4. If installed, remove the rear drive cage.
5. Disconnect any cables connected to the expansion card.
6. If installed, remove the PCIe filler bracket.
Steps
For riser 2, holding the blue touch points, lift the expansion card riser from the system.

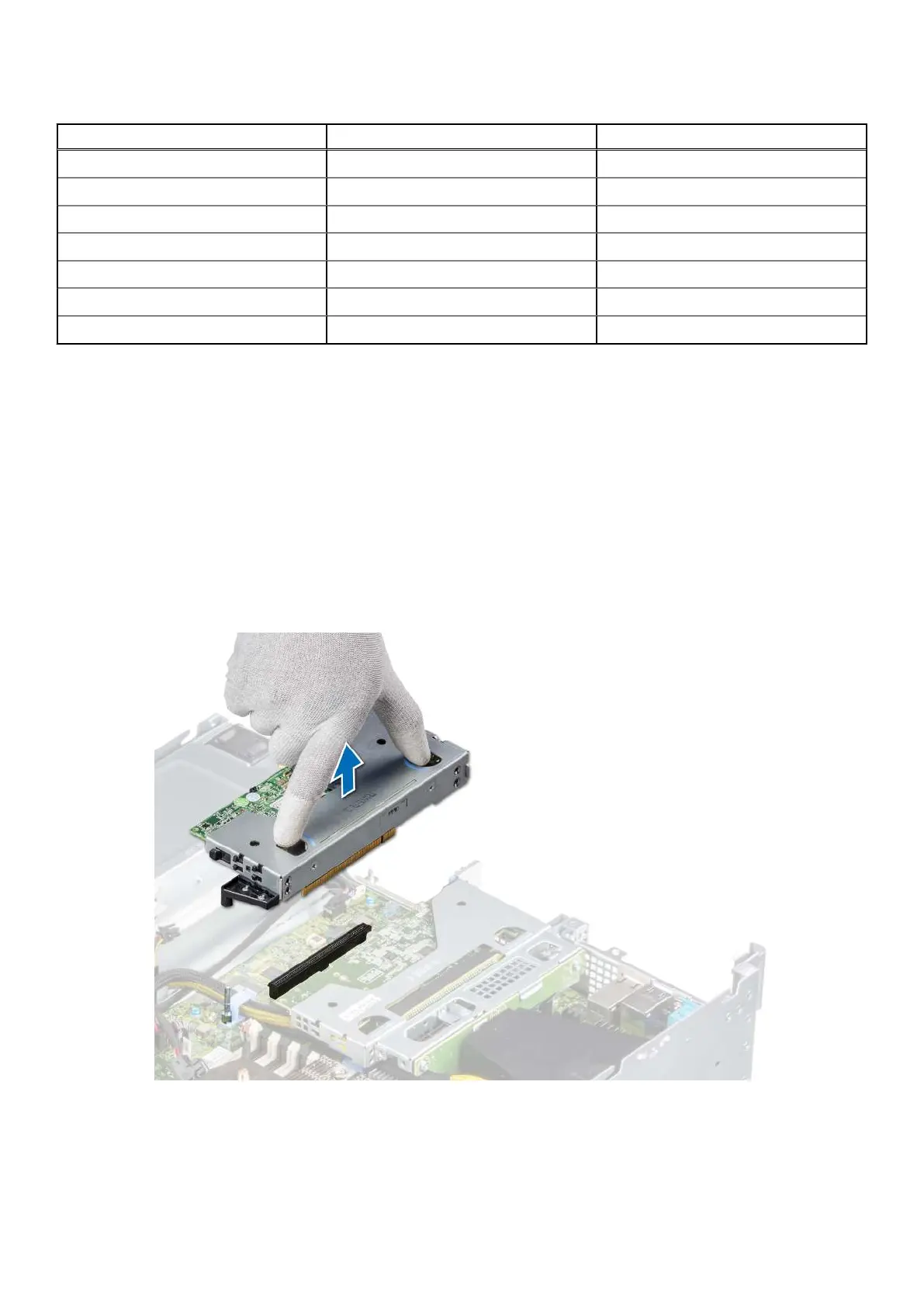

Figure 66. Removing the riser 2
a. For the riser 1A, loosen the captive screw and then holding the blue touch points lift the riser from the system.
72
Installing and removing system components
