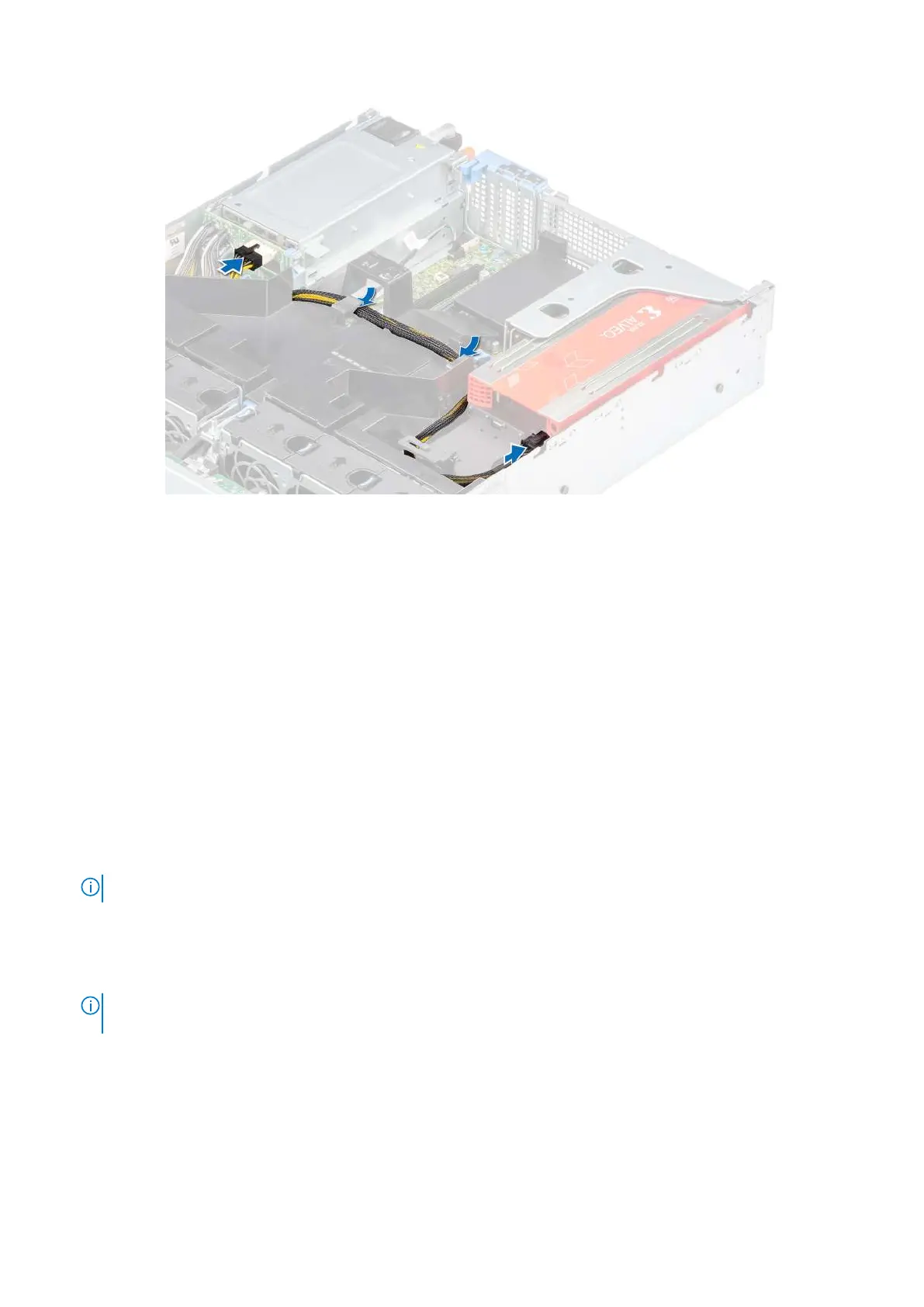

Figure 93. Connecting the FPGA cable for the accelerator card
Next steps
1. Install the air shroud.
2. Follow the procedure listed in After working inside your system on page 27.
M.2 SSD module
Removing the M.2 SSD module
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions on page 26.
2. Follow the procedure listed in the Before working inside your system on page 27.
3. Remove the air shroud.
4. Remove the BOSS card from the riser.
NOTE: The procedure to remove the BOSS card is similar to removing an expansion card.
Steps
1. Using the Phillips #1 screwdriver, remove the screws that secure the M.2 SSD module to the BOSS card.
2. Pull the M.2 SSD module to remove it from the BOSS card.
NOTE:
The numbers on the image does not depict the exact steps. The numbers are just for representation of
sequence.
Installing and removing system components 89
