Removing the rear drive backplane
Prerequisites
CAUTION: To prevent damage to the drives and backplane, you must remove the drives from the system before
removing the backplane.
CAUTION: You must note the number of each hard drive and temporarily label them before removal so that you
can replace them in the same locations.
1. Follow the safety guidelines listed in the Safety instructions on page 26.
2. Follow the procedure listed in the Before working inside your system on page 27.
3. Remove all the drives from the rear drive cage.
4. Disconnect all the cables from the backplane.
5. Remove the rear drive cage.
Steps
1. Using a Phillips #2 screwdriver, remove the screws that secure the drive backplane to the rear drive cage.
2. Disengage the backplane from the hooks on the rear drive cage, and remove it from the rear drive cage.

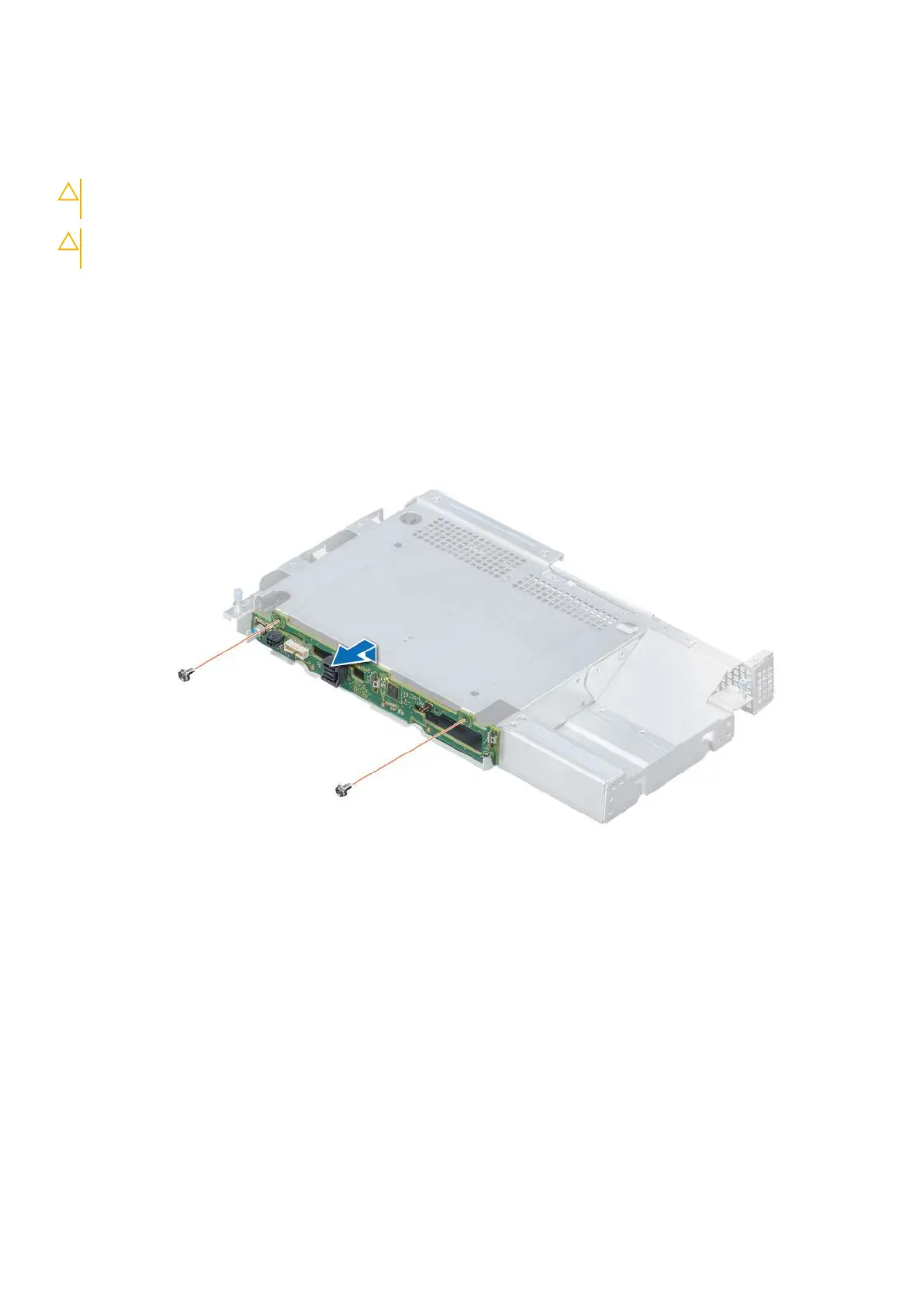

Figure 51. Removing the rear drive backplane
Next steps
Install the rear drive backplane.
Installing the rear drive backplane
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions on page 26.
2. Follow the procedure listed in the Before working inside your system on page 27.
3. Remove all the drives from the rear drive cage.
4. Disconnect all the cables from the backplane.
5. Remove the rear drive cage.
Installing and removing system components
53
