Removing the drive backplane

Prerequisites

CAUTION: To prevent damage to the drives and backplane, you must remove the drives from the system before

removing the backplane.

CAUTION: Note the number of each drive and temporarily label them before removal so that you can replace

them in the same drive slots.

1. Follow the safety guidelines listed in the Safety instructions on page 26.

2. Follow the procedure listed in the Before working inside your system on page 27.

3. Remove all the drives from the front.

4. If applicable, remove the drive backplane cover.

NOTE: Observe the routing of the cable as you remove it from the system.

Steps

1. Press the blue release tabs to disengage the drive backplane from the hooks on the chassis.

2. Lift the drive backplane from the system.

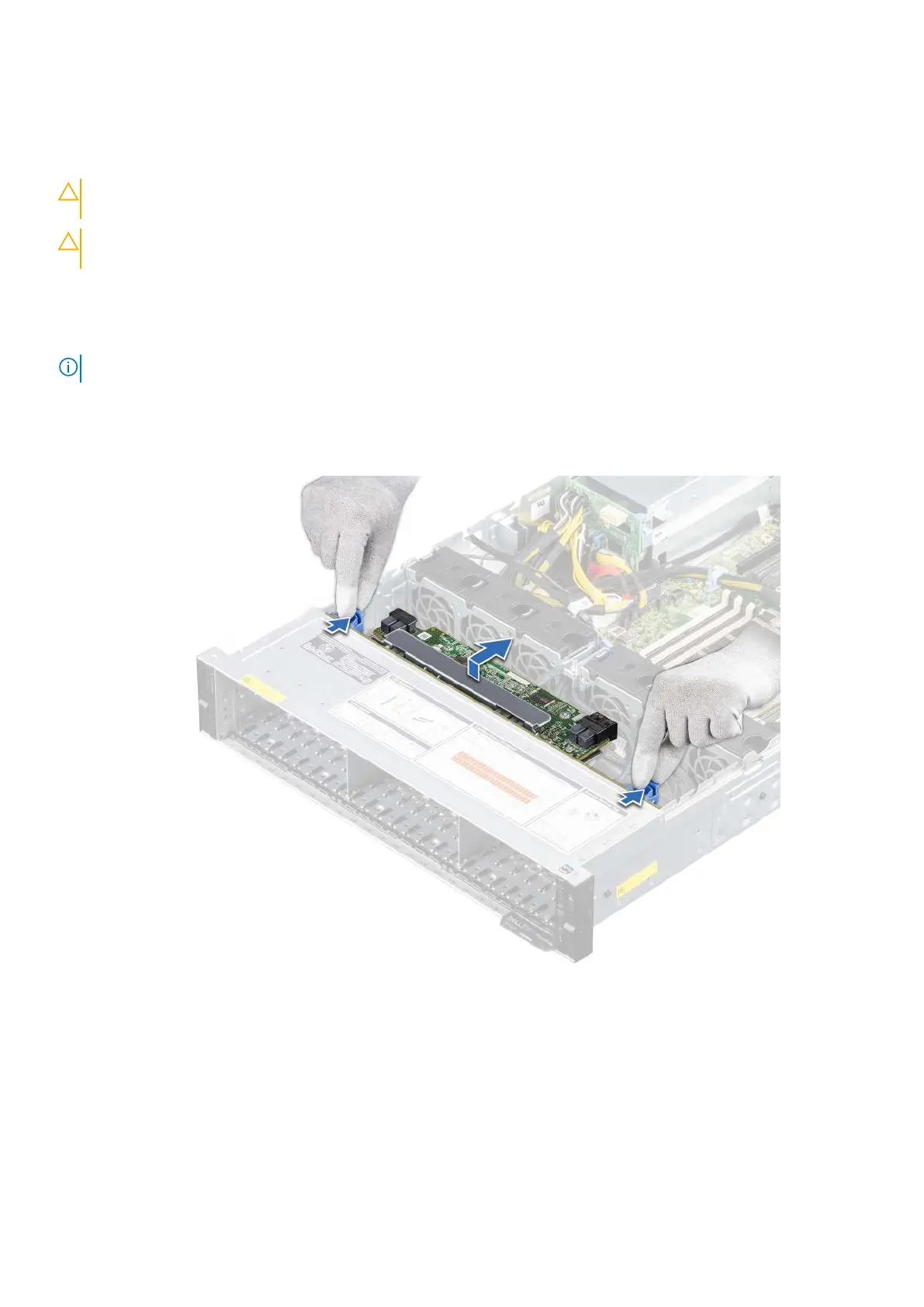

Figure 49. Removing the drive backplane

3. Disconnect the following cables from the backplane:

a. Backplane signal cable

b. Backplane power cable

c. If applicable, PERC cable

Next steps

1. Replace the drive backplane.
