Dell EMC PowerEdge R7515 Service Manual

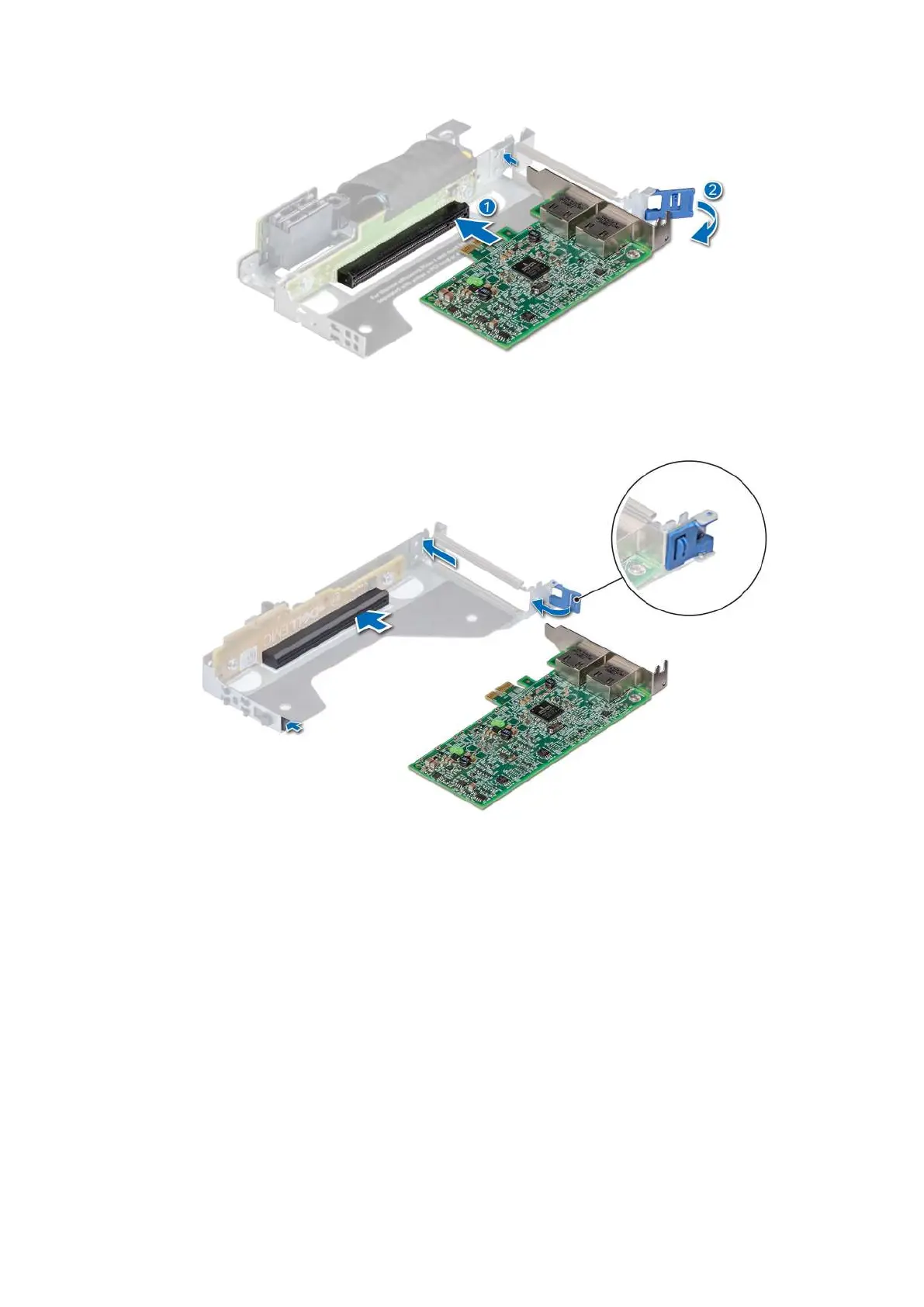

Figure 86. Installing the expansion card into a riser 1A
Figure 87. Installing the expansion card into a riser 2
Next steps
1. Install the expansion card riser.
2. Install the air shroud.
3. Follow the procedure listed in After working inside your system on page 27.
Removing an accelerator card
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions on page 26.
2. Follow the procedure listed in the Before working inside your system on page 27.
3. Disconnect any cables that are connected to the expansion card or expansion card riser.
4. Remove the air shroud.
Installing and removing system components
85
