Dell EMC PowerEdge R7515 Service Manual

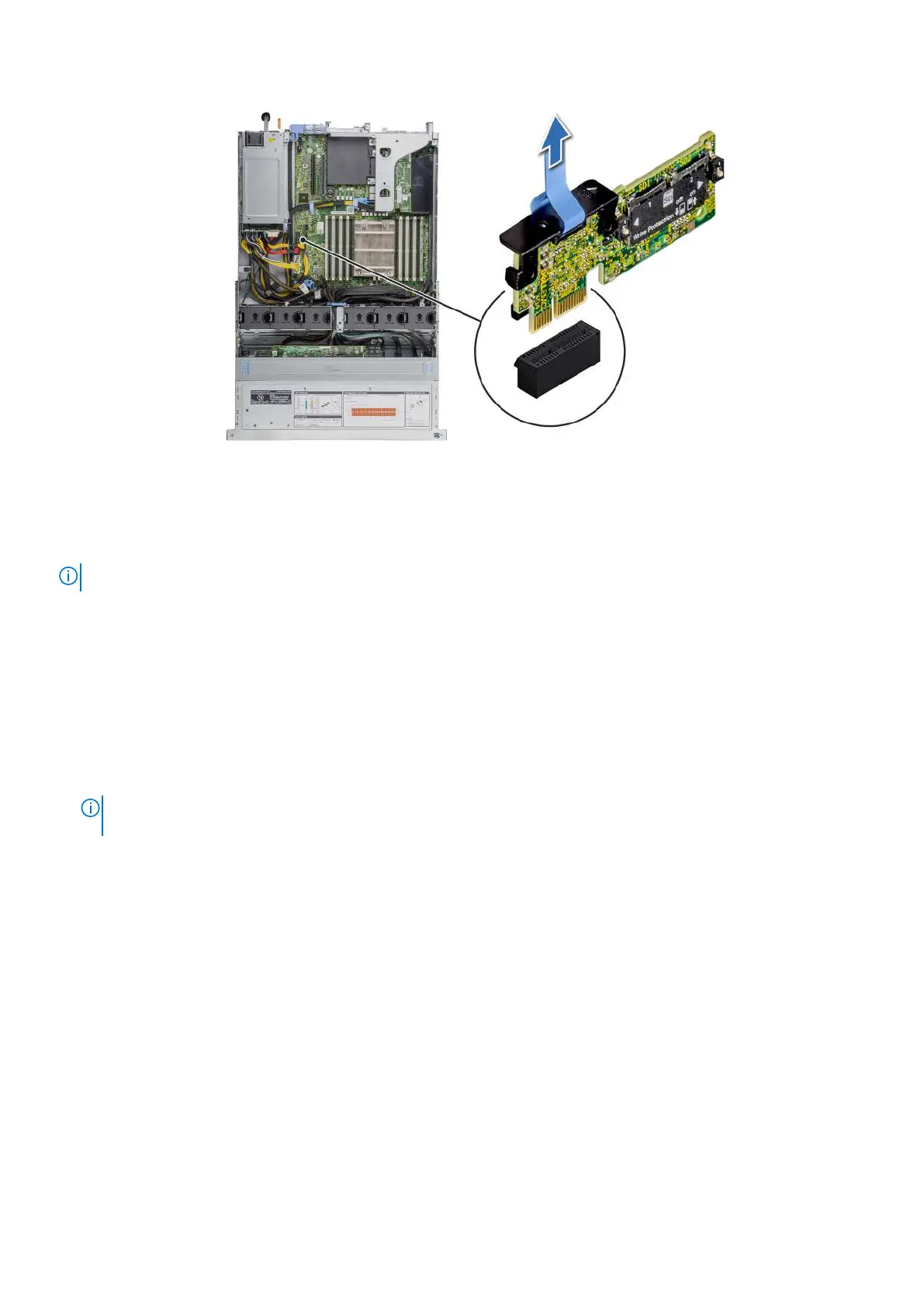

Figure 96. Removing the IDSDM card
Next steps
NOTE: If you are replacing the IDSDM module, remove the MicroSD cards.
1. Replace the IDSDM module.
Installing IDSDM card
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions on page 26.
2. Follow the procedure listed in the Before working inside your system on page 27.
3. Remove the air shroud.
4. If you are replacing the IDSDM card, remove the MicroSD cards.
NOTE:
Temporarily label each SD card with its corresponding slot number before removal. Reinstall the SD cards into
the corresponding slots.
Steps
1. Locate the IDSDM connector on the system board. To locate IDSDM connector, see System board jumpers and connectors
section.
2. Align the IDSDM card with the connector on the system board.
3. Push the IDSDM card until it is firmly seated on the system board.
92
Installing and removing system components

Dell EMC PowerEdge R7515 Specifications

General

Maximum Processors	1
Cores per Processor	Up to 64
Processor	AMD EPYC 7002 Series
Memory Type	DDR4
Memory Slots	16 DIMM slots
Storage	Up to 12 x 3.5" SAS/SATA or up to 24 x 2.5" SAS/SATA/NVMe drives
RAID Support	PERC H345, H745
Network Options	1GbE, 10GbE, 25GbE
Network Controller	1 x 1GbE LOM
Power Supply	750W, 1100W
Form Factor	2U Rack
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
