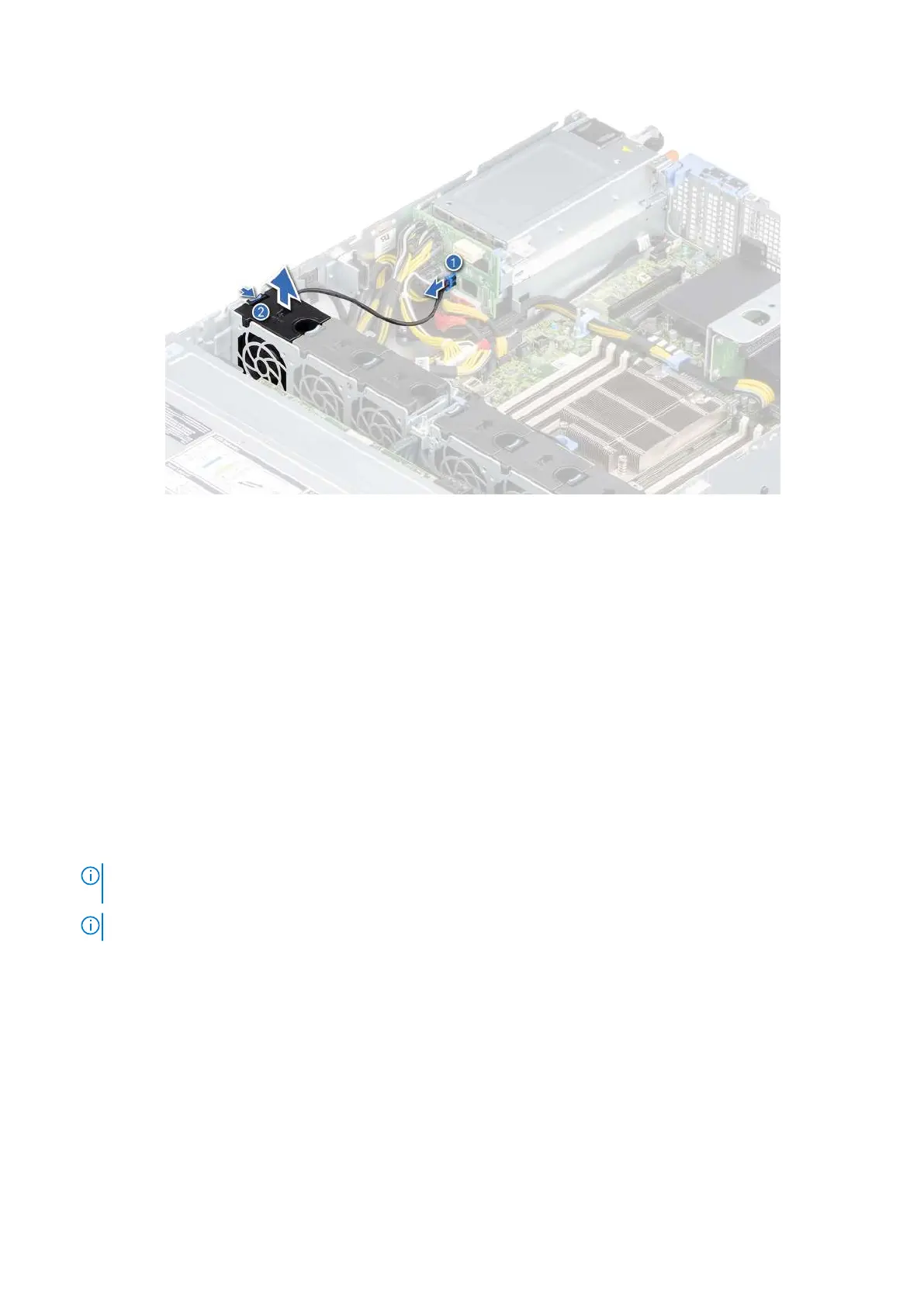

Figure 28. Disconnecting fan 1 cable from PIB
Next steps
1. Replace the cooling fan.
Installing a cooling fan
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions on page 26.
2. Follow the procedure listed in the Before working inside your system on page 27.
3. Remove the air shroud.
Steps
1. Lower the cooling fan into the cooling fan cage, until the blue release tab clicks into place.
2. Route the cable through the cable retention tabs.
NOTE:
The numbers on the image does not depict the exact steps. The numbers are just for representation of
sequence.
NOTE: Route the cable properly to prevent the cable from being pinched or crimped.
38 Installing and removing system components
