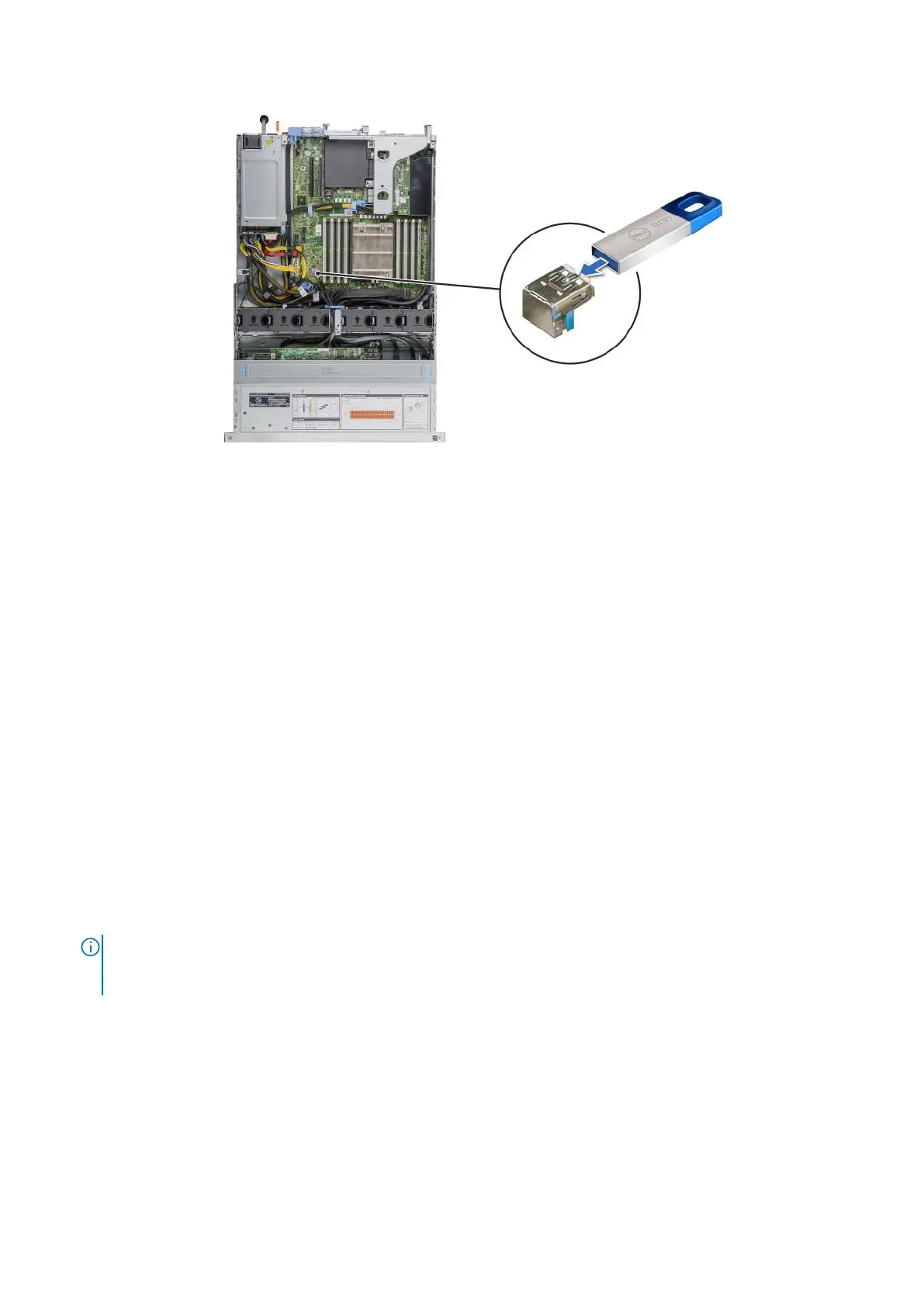

Figure 113. Installing the internal USB memory key
a. USB memory key
b. USB port
Next steps
1. Install the air shroud.
2. Follow the procedure listed in After working inside your system on page 27.
3. While booting, press F2 to enter System Setup and verify that the system detects the USB memory key.
Optional optical drive
Removing the optical drive
The procedure for removing an optical drive and optical drive blank is the same.
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions on page 26.
2. Follow the procedure listed in the Before working inside your system on page 27.
3. If installed, remove the front bezel.
4. If applicable, remove the backplane cover.
5. Disconnect the power and data cables from the connectors on the optical drive.
NOTE:
Ensure that you note the routing of the power and data cable on the side of the system as you remove them
from the system board and drive. Route these cables properly when you replace them to prevent them from being
pinched or crimped.
Steps
1. Press the release tab to release the optical drive.
2. Slide the optical drive out of the optical drive slot.
106
Installing and removing system components
