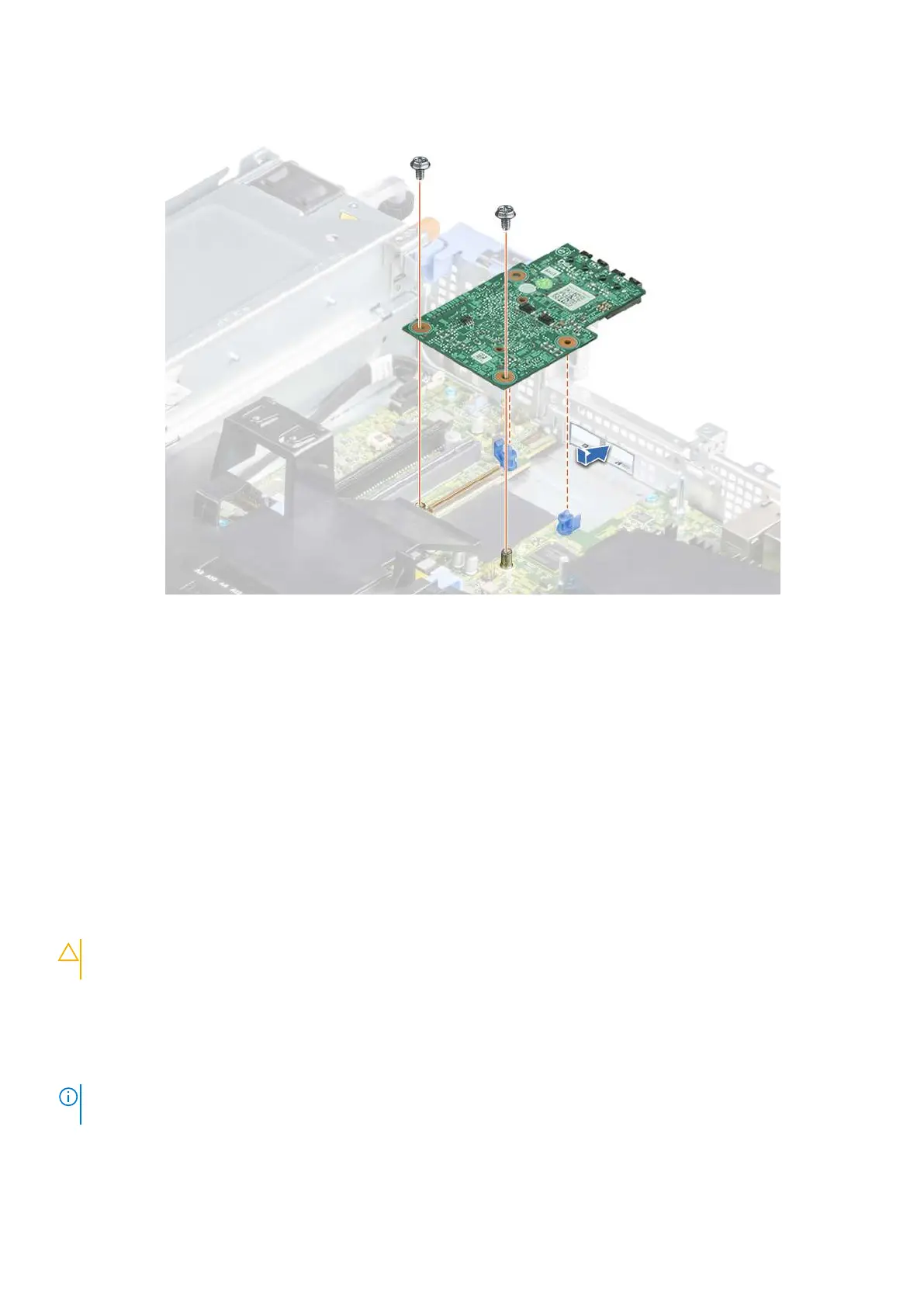

Figure 105. Installing the LOM riser card
Next steps
1. Replace the expansion card riser.
2. If removed, replace the rear drive cage.
3. Install the air shroud.
4. Follow the procedure listed in After working inside your system on page 27.
Storage controller card
Removing the mini PERC card air shroud
Prerequisites
CAUTION:
Never operate your system with the air shroud removed. The system may get overheated, resulting in
shutdown of the system and loss of data.
1. Follow the safety guidelines listed in the Safety instructions on page 26.
2. Follow the procedure listed in the Before working inside your system on page 27.
3. Remove the air shroud.
4. If applicable, remove the rear drive cage.
5. If applicable, remove the expansion card riser.
NOTE:
Never operate the system with the air shroud removed. The system may get overheated quickly, resulting in
shutdown of the system and loss of data.
Steps
1. Remove the screw securing the mini PERC card air shroud to the system board.
Installing and removing system components
99
